ESP Primer System Instruction Guide
p/n: 029-0810-01-0
Installation ❑
WARNING !
DISCONNECT OR TURN OFF THE MASTER BATTERY SWITCH PRIOR TO
SERVICING THE HALE SPV ELECTRICAL COMPONENTS. MAKE SURE
THERE IS NO POWER AT THE PRIMER SOLENOID BEFORE STARTING SER-
VICE PROCEDURES.
2. Drain all water from pump body.
3. Open the pump operator panel to gain access to the existing Hale PVG.
4. Disconnect the electrical leads and vacuum hoses to the Hale PVG.
5. If the Hale PVG is mounted at the operator panel, remove the Hale PVG
and placard.
6. Install the panel placard and momentary contact push button provided
with the Hale SPV on the operator panel.
Note: To mount the pushbutton switch, a spacer is required between the placard

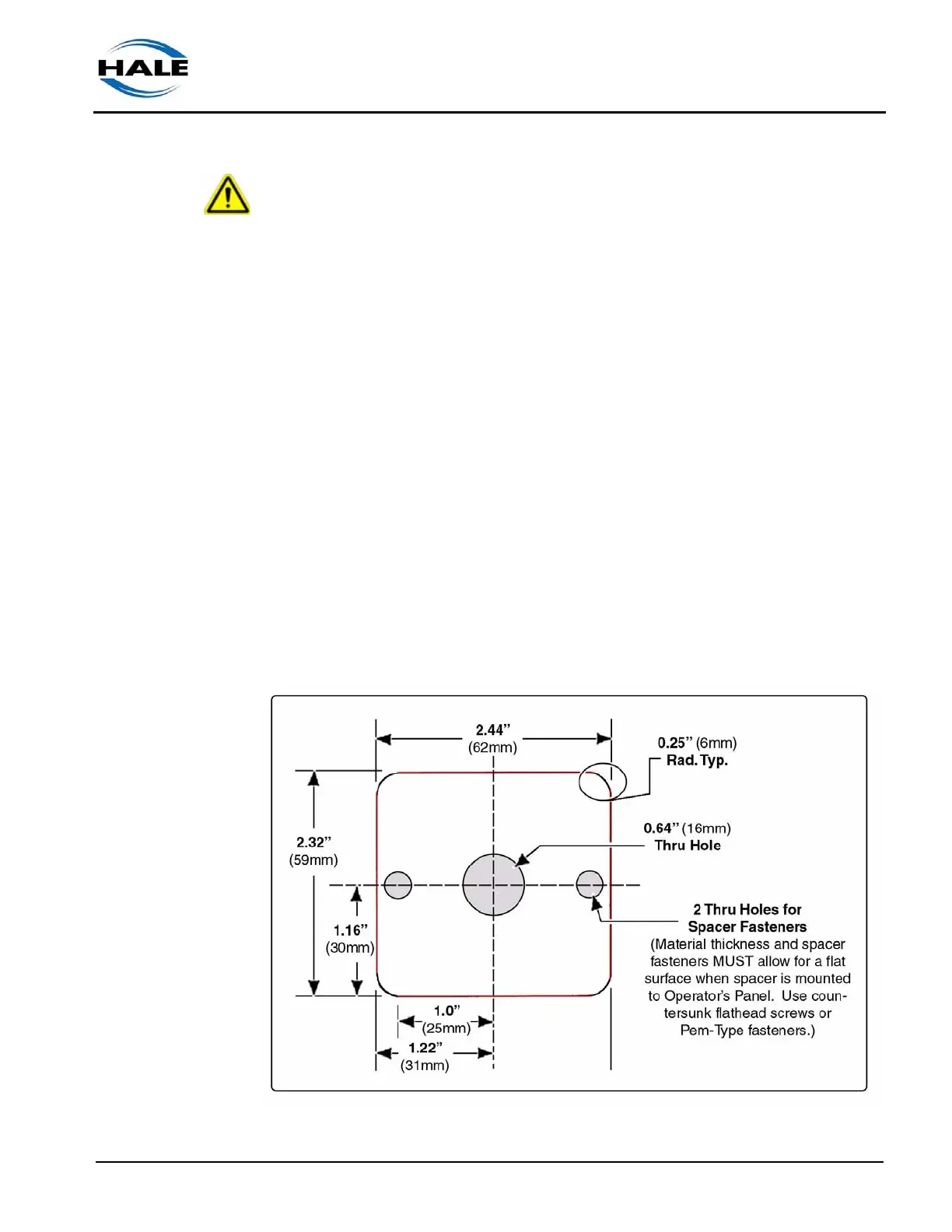

and the operator’s panel. Manufacture a spacer using the template in Figure 3-5:
“SPV Retrofit Panel Placard Spacer Layout” as a guide. The outer surface of the
spacer must be flat to allow proper installation of the panel placard push button
switch. Use material thickness and fastening devices that maintain a flat surface.
Figure 3-5: SPV Retrofit Panel Placard Spacer Layout
