HALE ESP Primer System User Manual

❑ Installation
26
ESP Primer System Instruction Guide
p/n: 029-0810-01-0
3. Drill two 29/64” (12 mm) holes
2-1/2” (64 mm) apart to attach
the universal mounting
adapter to a secure point on
the apparatus. (See Figure 3-
7: “Universal Mount Adapter
Dimensions.”)
4. Select the proper mounting
adapter orientation and using
the 7/16”14 x 1.0” screws
attach the universal mounting
adapter to the apparatus.
(See Figure 3-8: “Universal
Mount Adapter Positions.”)
5. Apply a light coat of thread
locking compound (Loctite
#290 or equivalent) to one
end of the 7/16”14 x 1-3/4”
studs. Install the studs in the
horizontal holes on the uni-
versal adapter. (See Figure
3-8: “Universal Mount Adapter
Positions.”)
6. Insert strainer and seal ring in the universal adapter, then install Hale
SPV on the universal adapter over the studs. (See Figure 3-6: “Typical
SPV / Universal Adapter Pump Installation,” on page 25.)

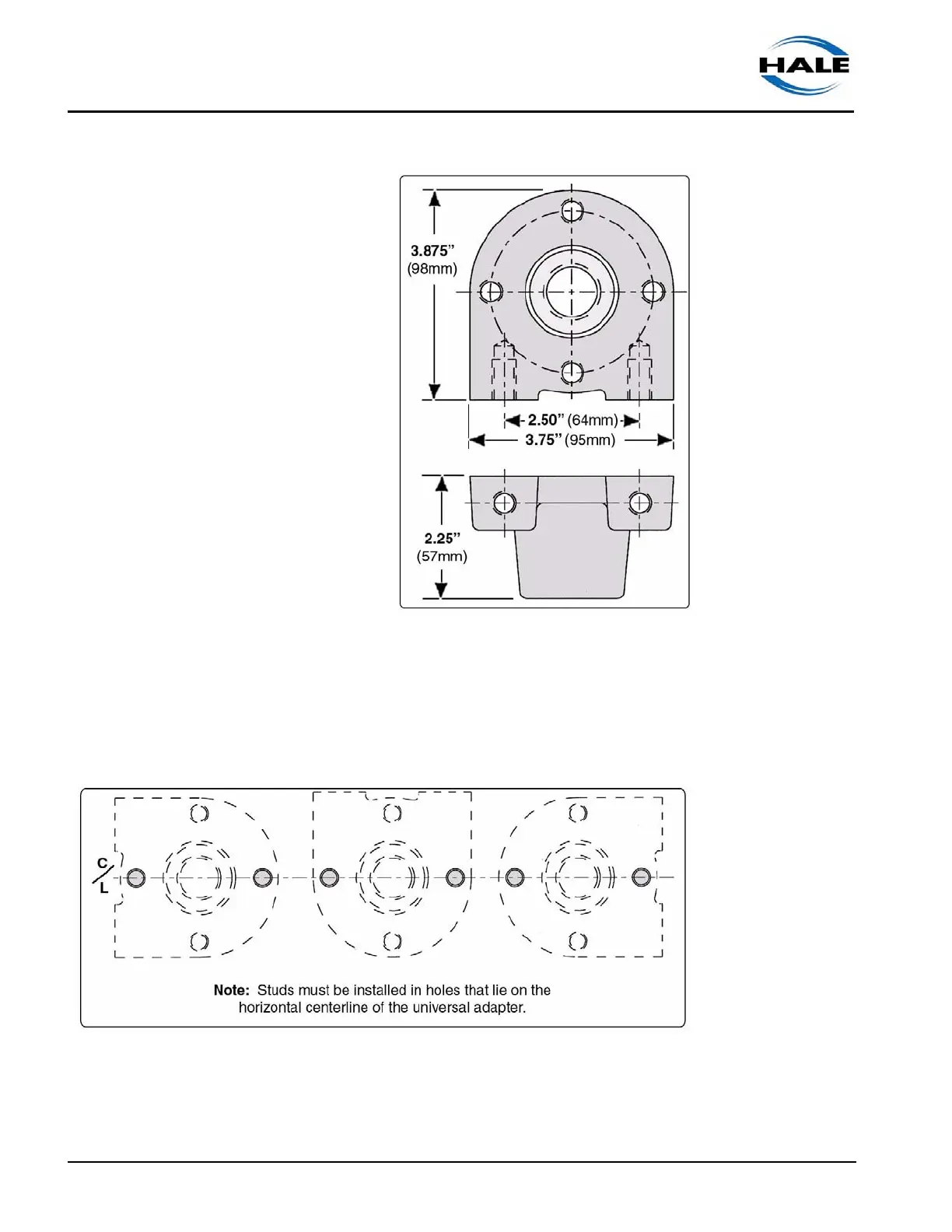

Figure 3-8: Universal Mount Adapter Positions
Make sure the vacuum hose connection is facing in the down direction
when the Hale SPV is installed. Additionally, the small drain hole on the
diaphragm cover will be in the down position.
Figure 3-7: Universal Mount Adapter
Dimensions
