SPV Retrofit Installation, Universal Mount
When installing the Hale SPV assembly with a universal mounting adapter
use the following procedures. (See Figure 3-6: “Typical SPV / Universal
Adapter Pump Installation.”)

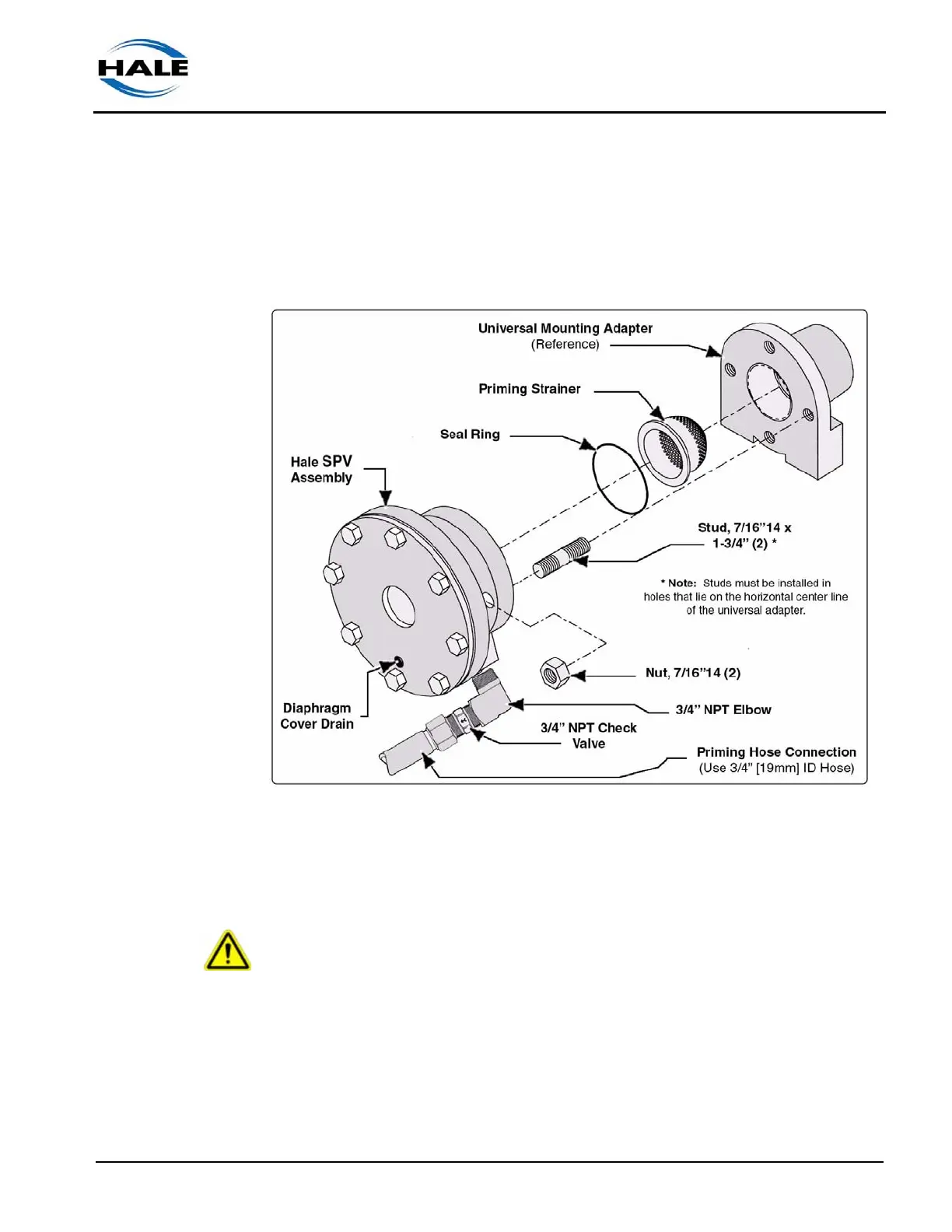

Figure 3-6: Typical SPV / Universal Adapter Pump Installation
1. Place the apparatus out of service in accordance with departmental
procedures.
CAUTION !
MAKE SURE THE HALE SPV IS LOCATED HIGHER THAN THE PUMP BODY
ALLOWING WATER TO DRAIN FROM THE VACUUM HOSE.
2. Determine location of the SPV Universal Mounting adapter on the appa-
ratus. When choosing a location make sure there is minimum of 5” (127
mm) clearance for hose connections.
