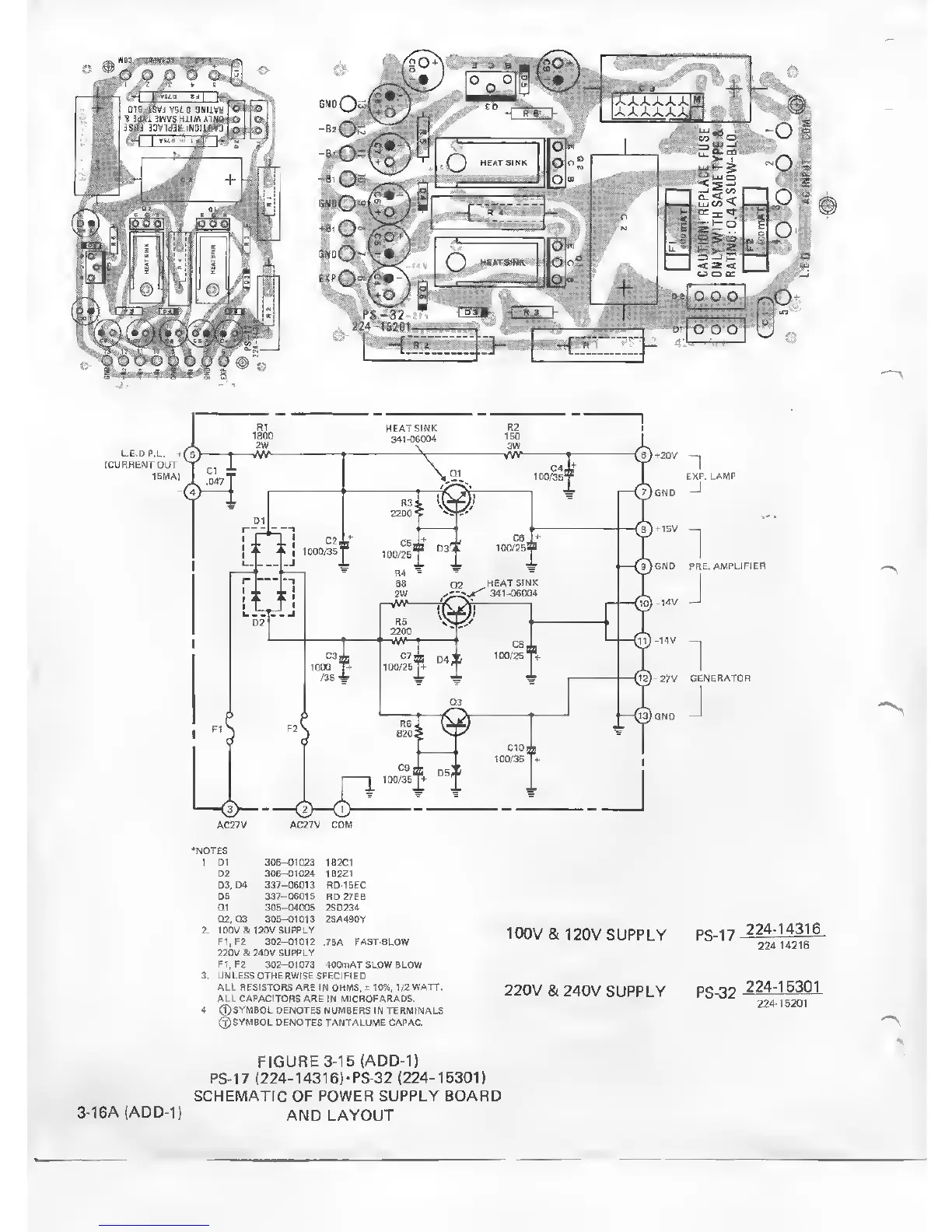

FIGURE
3-15
(ADD-1)
PS-17
(224-143161-PS32
(224-15301)
SCHEMATIC OF POWER
SUPPLY BOARD
3-16A (ADD-1)
AND
LAYOUT
