Hampton
®
H27E-11 Direct Vent Freestanding Gas Stove | 17
installation

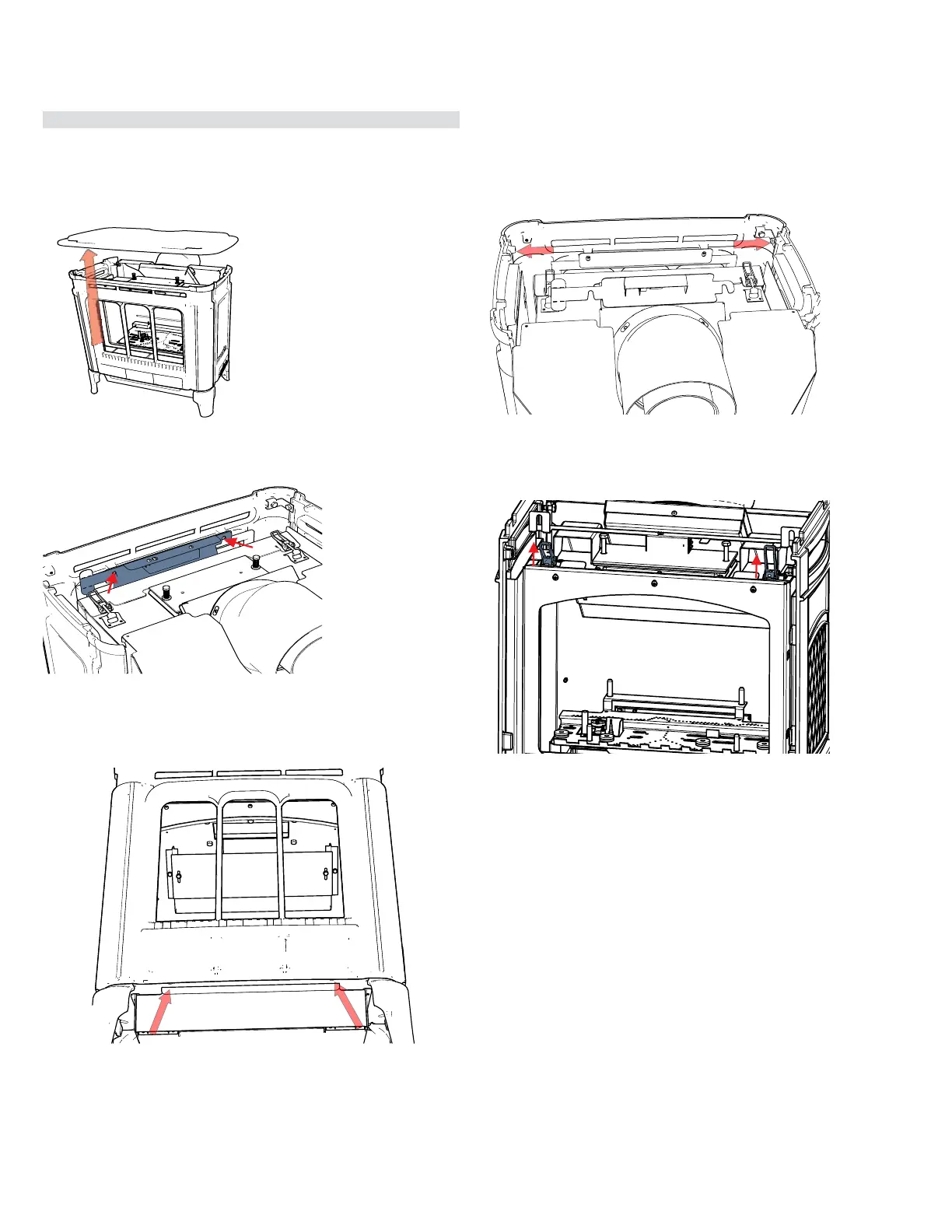

Glass Front Removal / Installation
1. Turn off stove and allow it to return to room temperature.
2. Lift off cast top and place on a soft surface.
3. Loosen 2 bolts using a 7/16" (11 mm) socket and slide up light assembly
bracket and place light assembly out of the way.
4. Remove 2 bolts from underside of the cast faceplate from locations shown
below.
5. Remove 2 bolts from the bracket securing the cast side to the
cast front in locations shown below. Remove the cast front and
carefully place on a soft surface.
6. To reinstall–reverse steps.
View looking down from top of stove
View looking down from top of stove
View looking up from bottom of stove
