38 | Hampton
®
H27E-11 Direct Vent Freestanding Gas Stove
installation

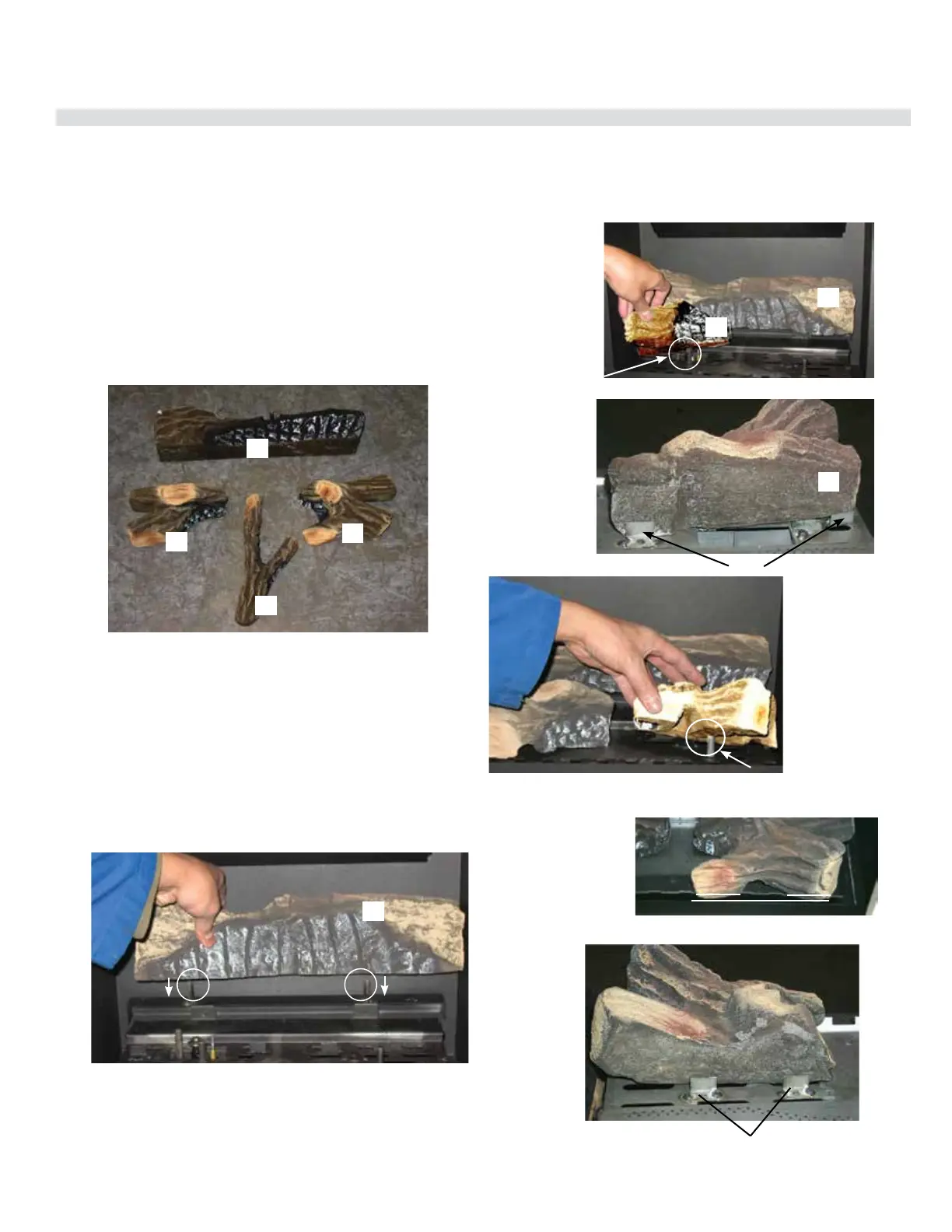

Log Set Installation
04/17/09918-104a
H25 / H27
LOG SET INSTALLATION
Page 1 of 2
1) Shut off the gas supply.
2) Lift off the Cast Top, remove Cast Front - then remove the
Glass Door (see manual pg. 41).
3) Carefully remove the logs from the box and unwrap them.
The logs are fragile, handle with care - do not force into
position.
Read the instructions below carefully and refer to the dia-
grams. If the logs are broken do not use the unit until they are
replaced. Broken logs can interfere with the pilot operation.
The gas log kit (Part #350-930) contains the following:
a) Rear Log
b) Left Side Front Log
c) Right Side Front Log
d) Center Front Log
e) Embers 902-156
f) Platinum Embers 946-669
(supplied with packaged manual)
Left Front Log
Pin
Pin
Right Front Log
Tabs
NOTE: Rear
view of Log B
Tabs
NOTE: This is
a rear view.
The Front Right Log
front edges should
be placed parallel
against the front
edge of the burner.
4) Place the rear log on the 2 rear log locating pins on the rear
of the burner with the fl at side to the back.
A
B
B
D
C
A
A
B
To Next Page
