Hampton
®
H27E-11 Direct Vent Freestanding Gas Stove | 49
parts list

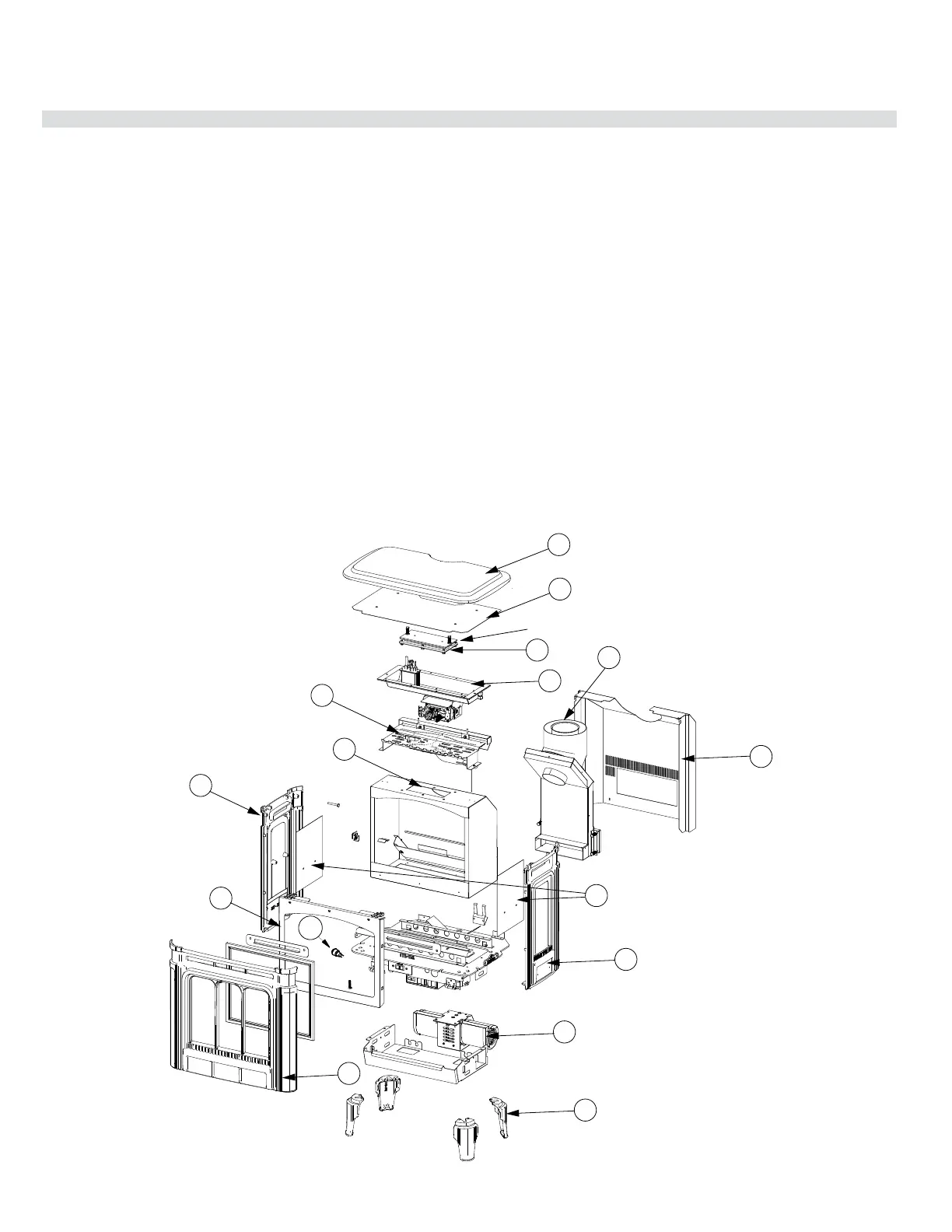

Main assembly
1) 357-201** Casting Top-Charcoal
3) 357-211** Front Cast -Charcoal
4) 357-241** Right Side Cast- Charcoal
4A) 357-231** Left Side Cast- Charcoal
5) 357-251** Cast Legs-Charcoal (Each)
260350 Gasket for Rear Relief Plate
290-015 Rear Relief Plate
350-524 Front Door Assembly
350-002 Door Support
19) 350-006 Door Frame
41225 Gasket - Tadpole
23) 940-327/P Replacement Glass
350-007 Glass Bracket
25) 911-242 Reset Switch
30) 948-219 Hampton
®
Logo
38) * Firebox
43) 948-255 Latch c/w Hook
920-043 Manual
Baffle Restrictor Assembly
350-005 Restrictor
Part # Description Part # Description Part # Description
350-004 Baffle Plate for Firebox
350-022 Casting Mount Bracket
* Fan Air Divider
50) W260260 Top Relief Frame Gasket
51) 942-117 Top Relief Frame
52) W260280 Top Relief Plate Gasket
53) 770-066F Top Relief Plate
54) 904-012 Capscrew 1/4 x 1-3/4 NC
55) 357-030F Side Shield
W260108 Gasket for Inner Flue
W842051 Gasket for Flue Adaptor
59) 945F Dura-Vent Collar
* Stove Base
80) 350-530 Burner Assembly - NG/LP
81) 357-574/P Valve Assembly - NG
357-776/P Valve Assembly - LP
134) 356-003 Rear Panel
136) 910-246 Burner ON/OFF Switch
357-917 Fan Assembly Complete -120
V (Option)
357-977 LP Conversion Kit
144) 910-157/P Fan Motor 120 V
*Note: Not available as a replacement part.
**Last digit of part number indicates colour:
1=Charcoal Grey, 5=Timberline,
1
11
54
52/53
81
134
59
80
5
144
3
4
4A
50/51
55
19
25
