FLEET V series
500001217/D
Table 3.1.2 - Dimensions and clearances
BOILER MODEL
Dimension
F175V –F250V
A
950
950 1145 1145
B
282 282 439 439
C
200 200 250 300
F300V—F350V
Two high
Three high
Two high
Three high
D
140 140 84 84
C* - 200Ø flues can be adapted to 250Ø
& 250Ø flues can be adapted to 300Ø
using the HHL supplied adaptors.
C** - A 250-300Ø adapter is standard fit on
300/900V & 350/1050V models

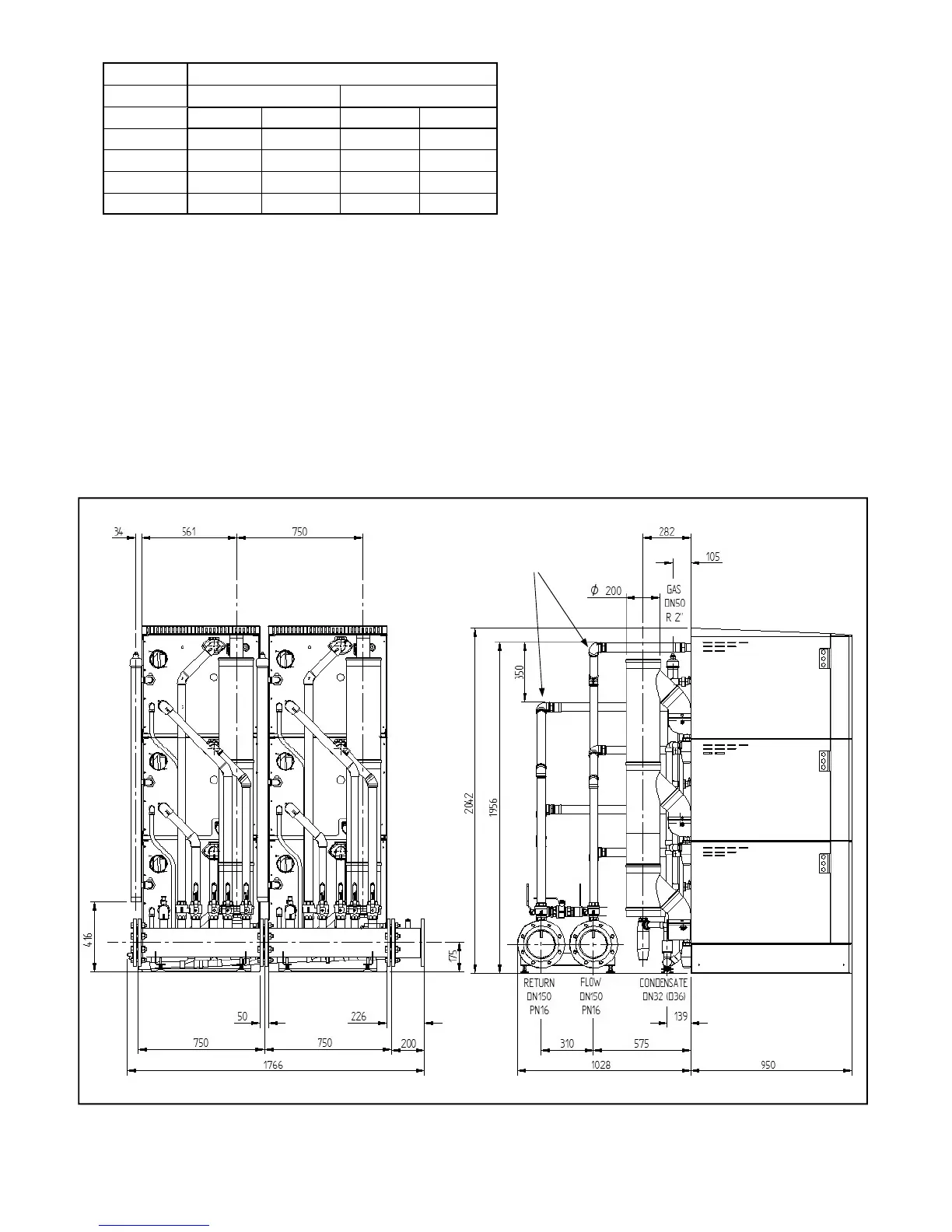

Figure 3.2.1 – F175/F250V - water pipe work kit (3 high boiler installation shown)
3.2 The Hamworthy Heating Ltd frame set and pipe work kit is designed to provide a compact solution for connecting the
boilers to the gas supply and flow and return water connections. The kit locates the pipe work above the boiler casing.
Refer to kit instructions 500005133 for specific information
1/2” BSP socket for
Pressure gauge
