Use of the scooter | 19
Trophy 20 UM 13
A
M
A
E
E
C
J K I L H
G
N
O P B F S D R D R
Q

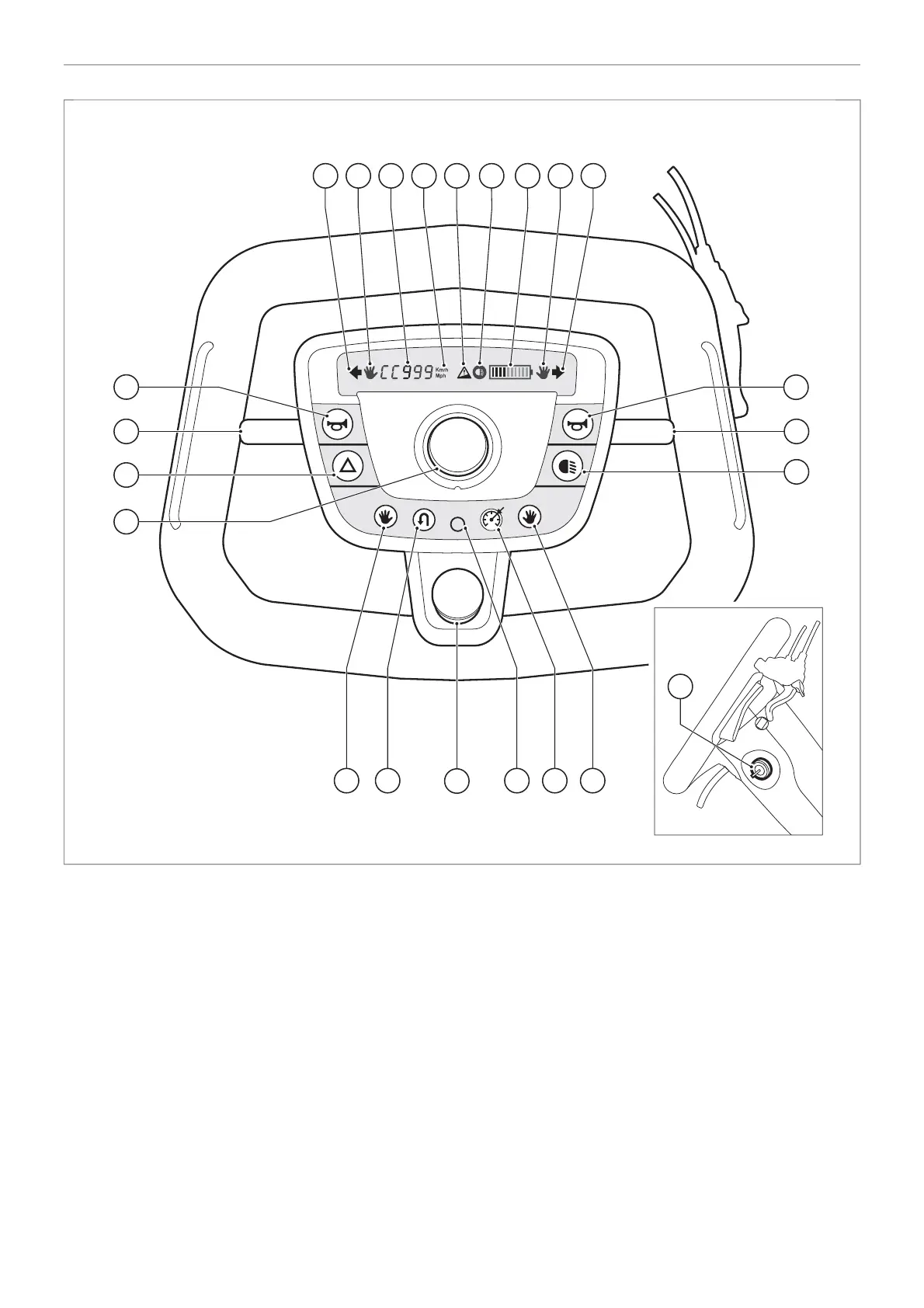

The control panel is equipped with the most
advanced
technology, offering functions for operating your
scooter
which are both useful and reliable.
A. Indicator handles, left and right *
B. Battery indicator
C. Speed regulator
D. Indicator for hazard lights / indicator lights
E. Horn switch*
F. Indicator for lights
G. Hazard lights switch
H. Reverse switch for foot throttle (if applicable)
I. Display menu selection switch
J. Cruise control switch (if applicable)
K. Right throttle selection switch (if applicable)
L. Left throttle selection switch (if applicable)
M. Light switch
N. Emergency stop button (if applicable)
O. Safe slope alarm indicator
P. Light sensor
Q. Ignition key
R. Active throttle indicator (if applicable)
S. Display
*These keys can be found on both the left-hand
and right-hand side of the control panel.
