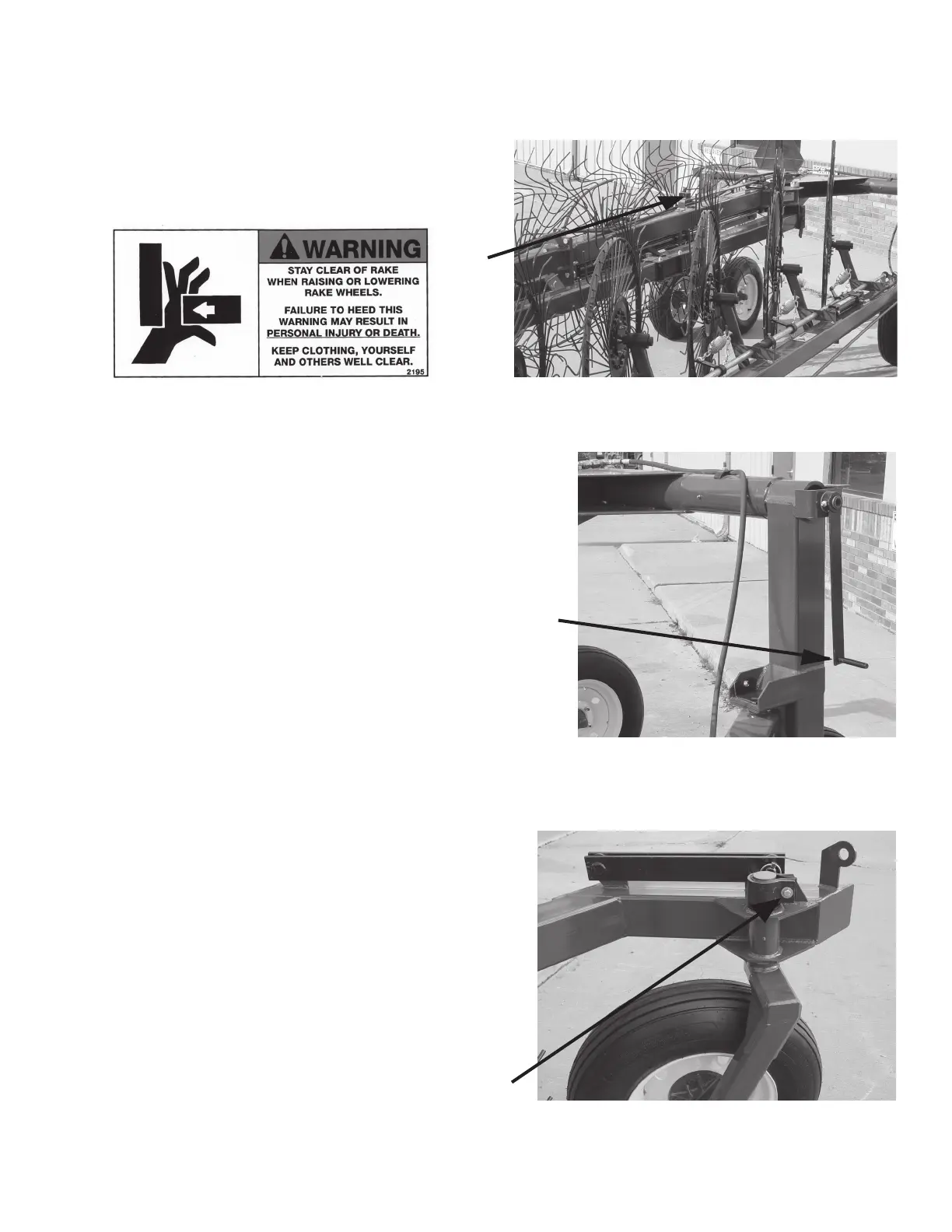

-13-
ADJUSTMENTS (Continued)
RAKING WIDTH
Raking width is determined by setting the spring
loaded stop, located above the rear
pole section as shown. (H)
WINDROW WIDTH
Windrow width is adjustable from 38” to 58”.
Adjustment is made by turning crank (I),
located on the left of the rear of the rake
as shown.
GAUGE WHEELS
Outboard gauge wheels are located on the
forward section of each rake beam. These
gauge wheels support the rake beams to
allow the rake wheels to better follow the
contour of the ground. Located on the gauge
wheel pivot spindle is an adjustable brake
assembly. Adjust brake by tightening bolt (J).
The brake should have enough tension to
prevent zig-zag motion, but still allow the
wheel to pivot when making corners.
H
I
J
