-12-

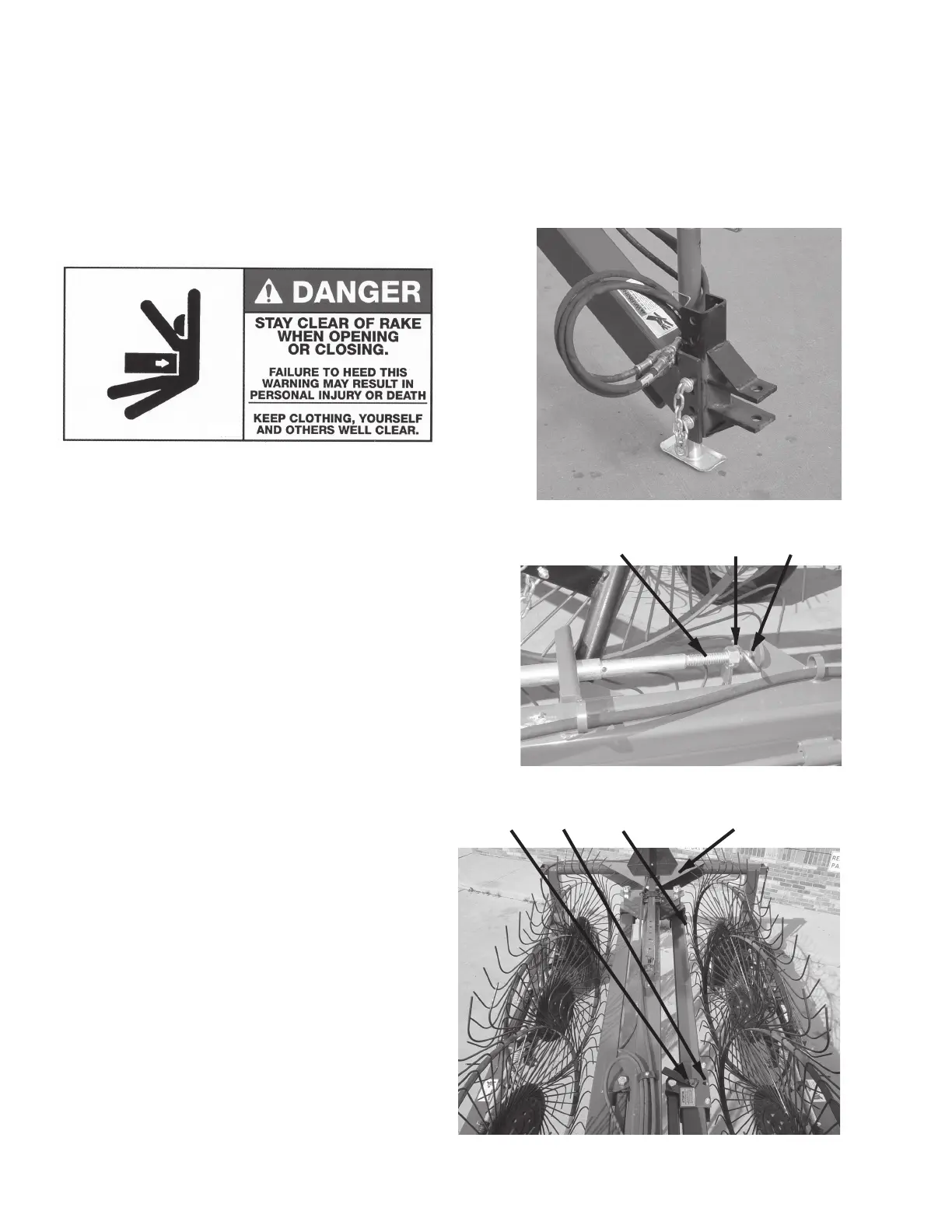

ADJUSTMENTS
HITCH
There are ten different positions to adjust the hitch on your new Hi-Capacity Rake. Hitch should be
adjusted so main frame of the rake is level or parallel to the ground.
Rake wheel to ground pressure is adjusted by
turning Locking Nut and Collar (E) in to decrease
pressure, or out to increase pressure. The length of
the Threaded Bolt (F), between (E) and Stop (G), will
determine the rake wheel to ground pressure.
Raking with one side only can be accomplished by
first locking the left side of the rake into transport
position utilizing both the front and rear transport
locks. Next, remove Pin (H) attaching front linkage
arm to main linkage arm, and place in storage hole
(I). Also remove Pin (J) at the rear of the main
linkage arm and place in the storage position (K)
located in hitch attachment gusset at the rear of the
rake (Lowering of rake wheels will aid in removal/
installation of pins. Be sure rear transport lock is in
transport position prior to raking with one side.). The
right side can now be opened, and used to rake.
NOTE: Only the right side of your Hi Capacity Rake
can be used in this manner.
GROUND PRESSURE
ONE SIDED RAKING HI J K
FEG
