LUBRICATION GUIDE
GREASE FITTINGS
There are 20 grease fittings on the 1460 and 1660 Hi-Capacity Rakes. If equipped with a center kicker
wheel, there will be one more on the pivot point. If lubricated properly and often enough, it will prolong the
life of your Hi-Capacity Rake. Grease daily during normal use and before and after storage and after
power washing. Use a good grade of high quailty grease. Make sure that grease comes out around the
shaft on sleeve type bearings. Wipe off excessive grease to prevent accumulation of chaff or grit around
the bearing.
LOCATION

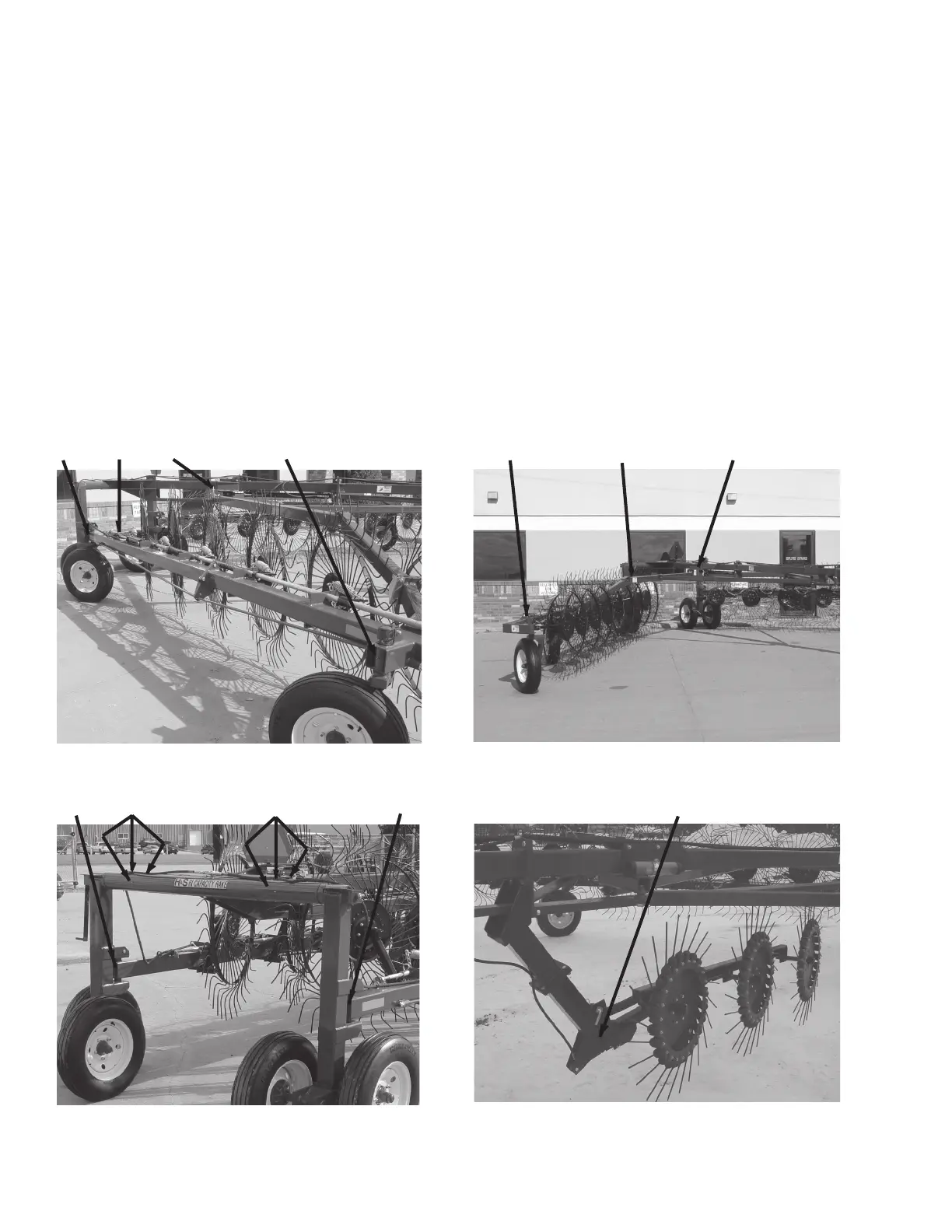

Listed and shown are the description of location and number of grease fittings.
A. (2) Top Opening Arm Front Pivot
B. (4) One on Each Gauge Wheel
C. (2) One on Each Lift Cylinder Mounting Bracket
D. (2) One on Each Rake Beam Pivot
E. (6) Top Rear Windrow Width Adjustment
F. (4) Top Opening Arm Rear Pivot
G. (1) Center Kicker Wheel Pivots (If Equipped)
-14-
DCF B B A F
D E E D G
