OPTIONAL EQUIPMENT
OPTIONAL KICKER WHEEL
There are two optional center kicker wheel assemblies available for the 1460-1660 Hi-Capacity Rakes. If the
hay is laying out flat, these extra wheels allow you to raise the hay laying in the center of the rake out of the
stubble for faster drying, and easier pick-up. A separate cylinder controls the kicker wheel assembly. It
raises and lowers with the rake wheels.

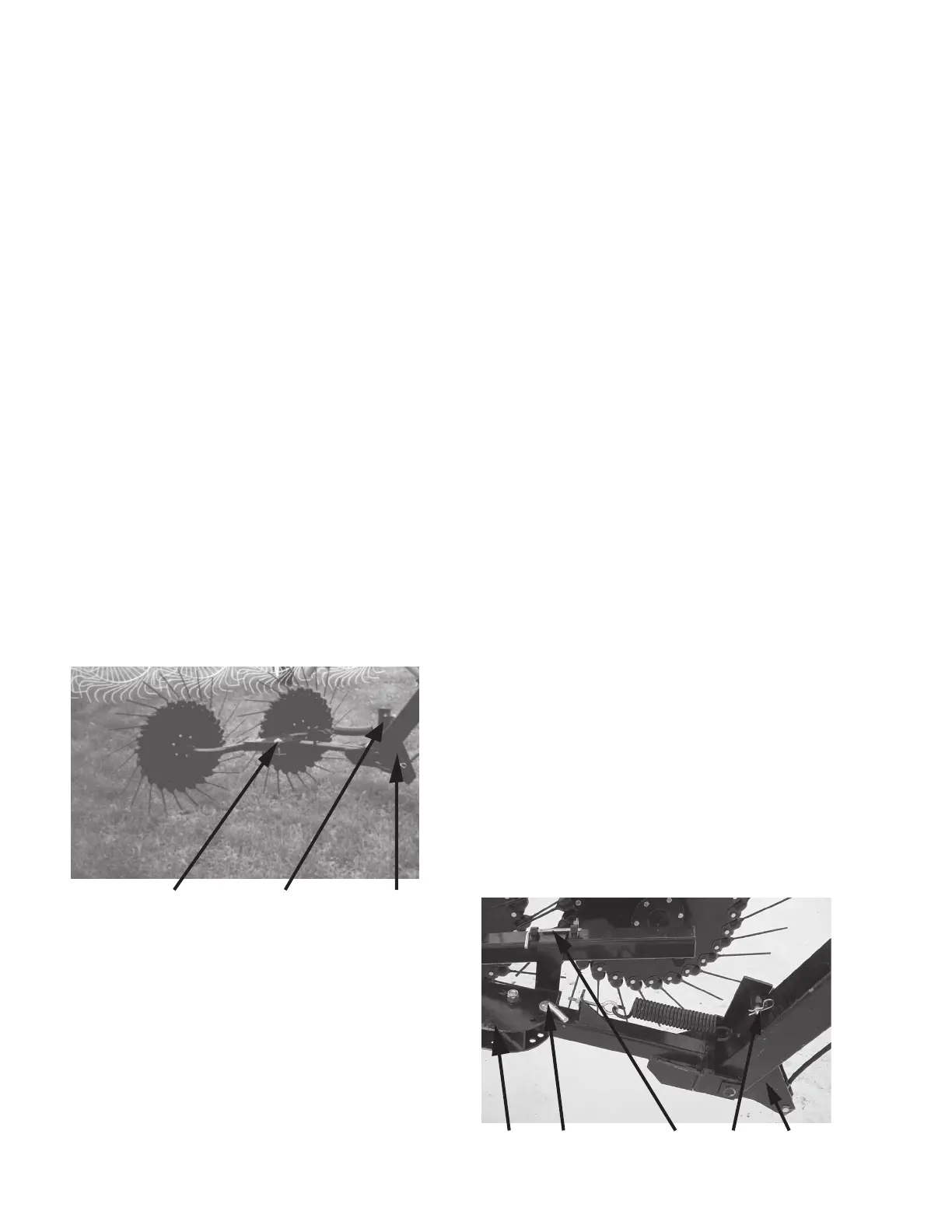

2-WHEEL KICKER WHEEL
To engage center kicker wheels, hydraulically open rake to desired raking width. Remove Locking Pin (C),
swivel kicker wheel assembly to the desired raking angle. Re-insert the locking pin. Next, remove Locking
Pin (A) from transport lock position, and insert into convenient Storage Position (B). Lower rake wheels to
begin raking.
To return to transport position, PRIOR TO CLOSING RAKE, raise rake wheels. (This will also raise the
center kicker wheel assembly). Remove Locking Pin (C), Swivel kicker wheel assembly so that it is in line
with the hitch pole. Re-insert Pin (C). Remove locking pin from Storage Position (B), and insert to lock the
unit into the up, or Transport Position (A). Rake beams may now be closed for transport.
3-WHEEL KICKER WHEEL
To engage center kicker wheels, hydraulically open rake to desired raking width. Remove Locking Pin (A),
swivel kicker wheel assembly to the desired raking angle. Re-insert the Locking Pin. Next, remove Locking Pin
(B) from the oscillation lock position, and insert into the convenient storage position (C). Next remove the
transport lock pin (D) and insert into the convenient storage position (E). Lower rake wheels to begin
raking.
To return to transport position, PRIOR TO CLOSING RAKE, raise rake wheels. (This will also raise the
center kicker wheel assembly). Remove Locking Pin (A), Swivel kicker wheel assembly so that it is in line
with the hitch pole. Re-insert Pin (A). Remove locking pin from Storage Position (C), and re-insert pin (B)
into the oscillation lock position. Next remove lock pin (D) from storage position (E) and insert to lock the
unit into the up, or Transport Position. Rake beams may now be closed for transport.
-18-
CA BDE
2-WHEEL KICKER WHEEL
3-WHEEL KICKER WHEEL
CAB
