Hangar 9 ARROW - Assembly of the Wing

5
Section 1: Assembly of the Wing
Carefully remove the contents of the Arrow Trainer Ready-To-Fly
kit. It is recommended that you charge the transmitter and receiver
batteries 24 hours prior to flying your model.
Step 1
Remove each wing from its protective plastic bag. Remove the
pieces of tape that hold the ailerons in place for shipping. The
hinges in the Arrow Trainer have already been glued in place during
manufacturing. Check the ailerons for security by gently pulling
on them, trying to separate them from the wing.
Be careful not to damage the wing structure.
Step 2
Locate the aluminum wing tube and carefully slide it into the
opening in one of the wing halves. The fit may be snug, so use a
twisting motion while inserting the tube. There is a short metal
pin located near the trailing edge that will key into the opposite
wing panel and keep the wing from rotating around the wing tube.
Carefully slide the other wing half onto the wing tube. Align the
metal pin with its hole and press the wing panels together.
Step 3
Locate the clear wing joiner tape and apply it to the top and bottom
of the wing along the joint. Start at the top of the trailing edge and
wrap it around the front of the wing and to the bottom trailing edge.
Step 4
The aileron servo lead has been wrapped around the linkage for
shipment. Untie the servo lead to free up the aileron linkage.
Note that the lead has been labeled with a piece of tape; do not
remove this tape. One of the aileron linkages has already been
connected to the aileron and secured with a small piece of tubing
(clevis keeper). This is done to prevent the clevis from opening
during flight.
Connect the other aileron linkage to the aileron and snap the clevis
in place. Slide the clevis keeper over the clevis to secure the linkage
to the aileron.
You have successfully assembled the wing of the Arrow Trainer.

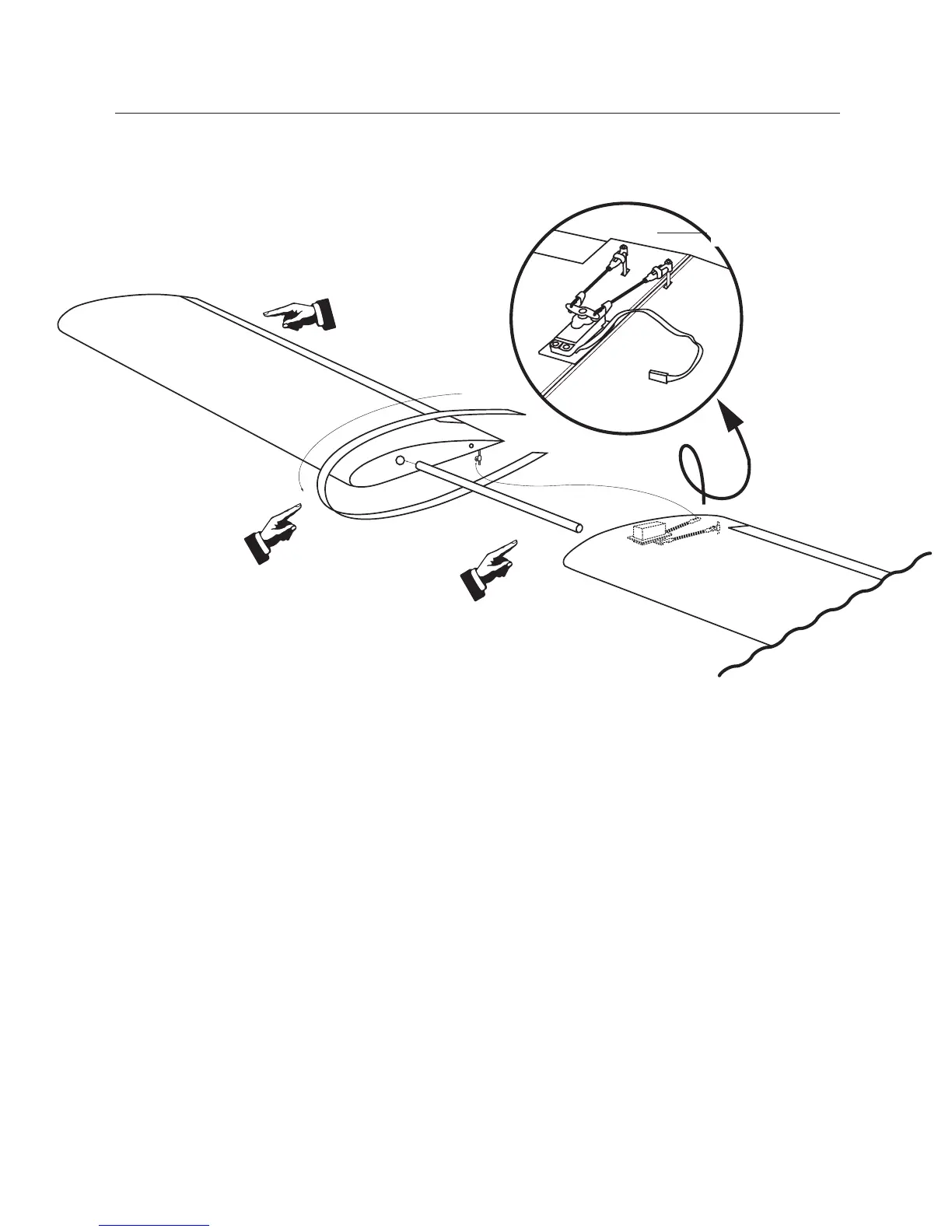

Step 3
Wrap supplied
clear tape around
the center joint.
Step 1
Remove shipping tape.
Step 2
Slide both wing panels onto
the metal tube.
Step 4
Attach clevis.
Bottom view of wing
