38
Step 11

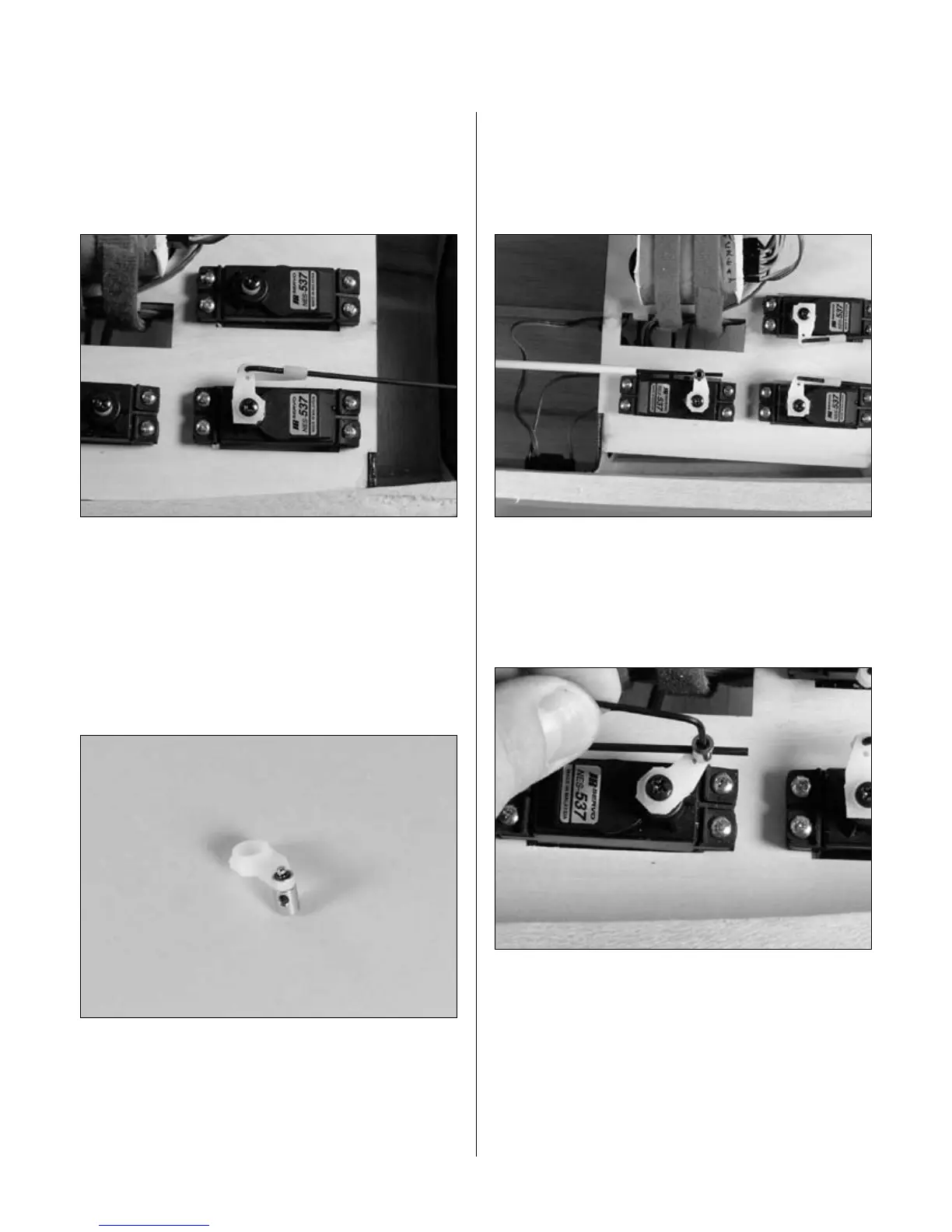

Drill out the hole in the servo arm using a 5/64"
(2mm) drill bit then slide the wire through the
outer hole in the rudder servo arm. Secure
the wire using a nylon wire keeper.
Step 12
Repeat Steps 4 through 11 for the elevator
pushrod installation.
Step 13
Use a 5/64" (2mm) drill bit to drill a hole in the throttle
servo arm. Attach a quick connector to the servo
arm using quick connector washers and retainers.
Step 14
Center the throttle stick and trim with both the
receiver and transmitter on. Slide the throttle
pushrod through the connector and install the
throttle servo arm in the neutral position.
Step 15
Move the servo to the throttle closed position using
the radio system. Manually move the throttle arm
on the carburetor to the closed position. Use a 3mm
setscrew to secure the throttle pushrod wire.
Step 16
Check the movement of the throttle to verify there
is no binding at either low or high throttle. If
there is, make the necessary adjustment using
the radio system to eliminate any binding. Install
the throttle servo arm screw when complete.
Section 10: Radio Installation
