1750-3000 scfm
DIMENSIONS AND WEIGHTS
1000-1500 scfm
Dimensions in (mm)
Inlet / Outlet Height Width Depth Weight
Model Connections (A) (B) (C) Lb. (kg)
1000 4” 1,720 (780)
1250 4” 85 (2159) 48 (1207) 49 (1232) 1,740 (789)
1500 4” 1,850 (839)
1750 6” 2,000 (907)
2000 6” 85 (2159) 54 (1372) 56 (1422) 2,100 (953)
2500 6” 2,238 (1015)
3000 6” 2,263 (1027)
NOTE: Dimension and weights are for reference only. Request certified drawings for construction purposes.

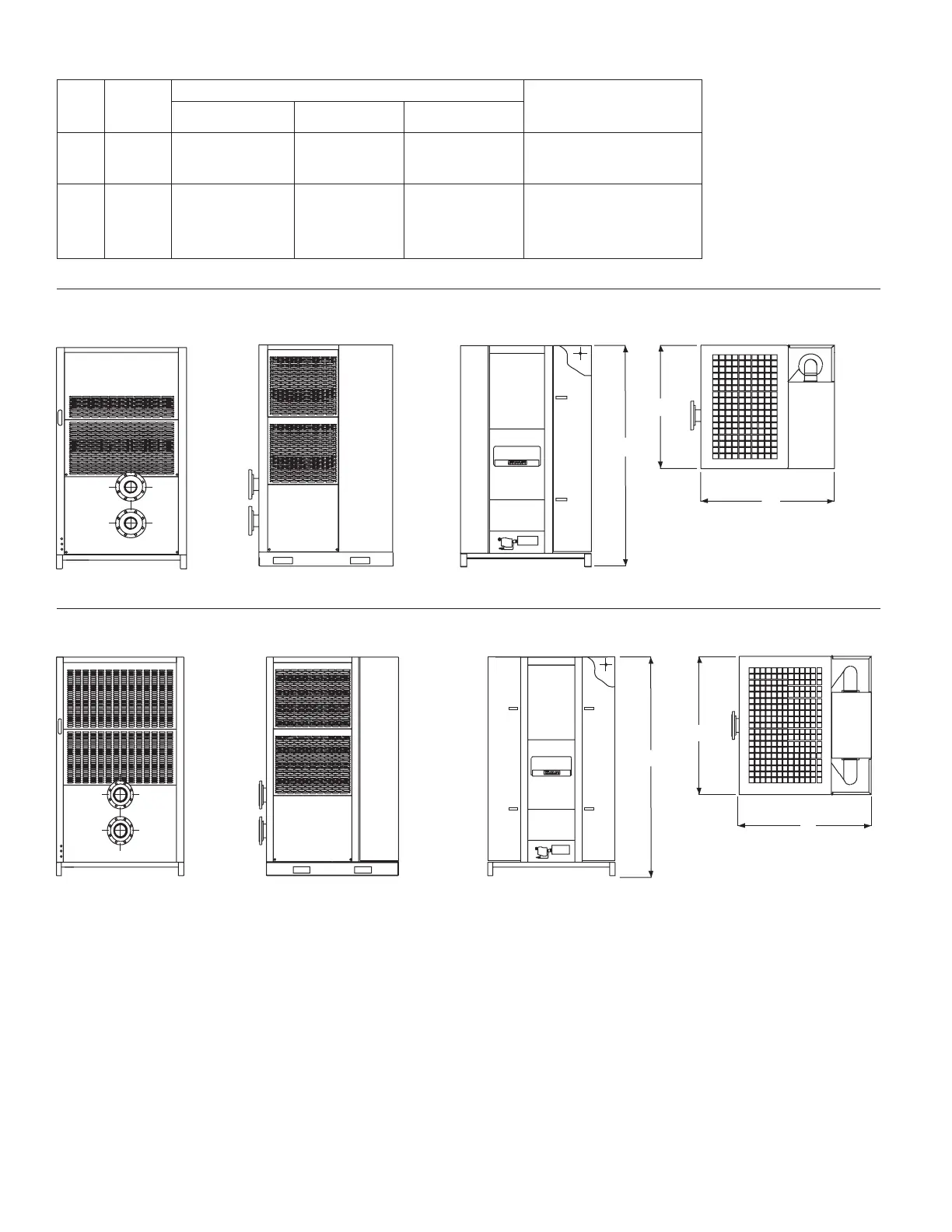

A
FRONT VIEW
TOP VIEW
LEFT SIDE VIEW
BACK VIEW
B
C
FRONT VIEW
LEFT SIDE VIEW
BACK VIEW
A
TOP VIEW
B
C
To Next Page
