3
Electrical
Entry
RS232
Port
Electric
Demand
Drain (EDD)
3-way Valve
for Manual
Draining
Moisture
Separator
(single stage)
Control
Panel

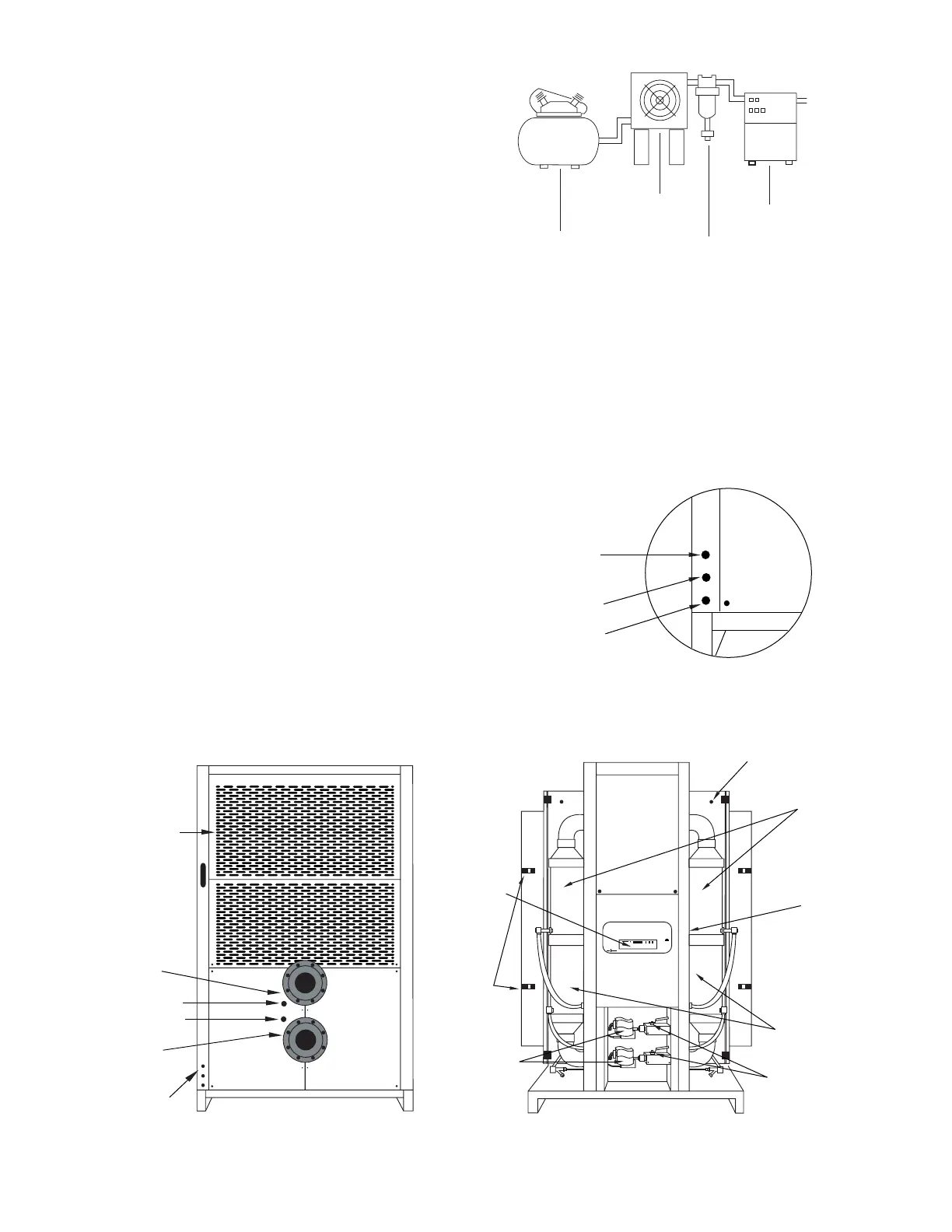

FRONT VIEW
OUT
IN
Air Outlet
Air Inlet
Condenser
BACK VIEW
See Exploded
View "A"
Automatic Drain
Valve (Optional)
Automatic
Drain Valve
Manual
Drain Valve
EXPLODED VIEW "A"
DRAIN VALVE CONNECTIONS
Quick
Release
Door Locks
Optional
Oil Removal
Filter (2 stage)
Water Outlet
Water Inlet
IMPORTANT: READ PRIOR TO STARTING THIS EQUIPMENT
1.0 INSTALLATION
1.1 Location
A. For typical placement in a compressed air system, see
drawing.
B. Air compressor intake–Locate air compressor so that
contaminants potentially harmful to the dryer (e.g. ammo-
nia) are not drawn into the air system.
C. Dryer should be installed in a moderately heated, well
ventilated area. Avoid locations immediately adjacent to
cold exterior windows or walls, or adjacent to high tem-
perature ovens or boilers.
D. Clearances: Free air flow
Models 1000 to 1500:
Front 24 inches (610 mm)
Back 36 inches (915 mm)
Sides 24 inches (610 mm)
Top 36 inches (915 mm)
Models 1750 to 3000
Front 24 inches (610 mm)
Back 36 inches (915 mm)
Sides 24 inches (610 mm)
Top 36 inches (915 mm)
Service - To facilitate maintenance leave 24 inches
(610 mm) of clearance in front of dryer.
E. Standard units are designed to operate in ambients:
Air-cooled: 45 to 110°F (7 to 43°C).
Water-cooled: 45 to 130°F (7 to 54°C).
F. Dryer is designed to operate at all altitudes - no adjustment
for altitude is required.
G. The installation of a flexible connection prior to the dryer is
recommended to prevent possible damage from vibration.
NOTE: Outdoor installation–Standard units are designed for
indoor installation. Contact manufacturer if installing outdoors.
Aftercooler
Separator
Dryer
Compressor
To Next Page
