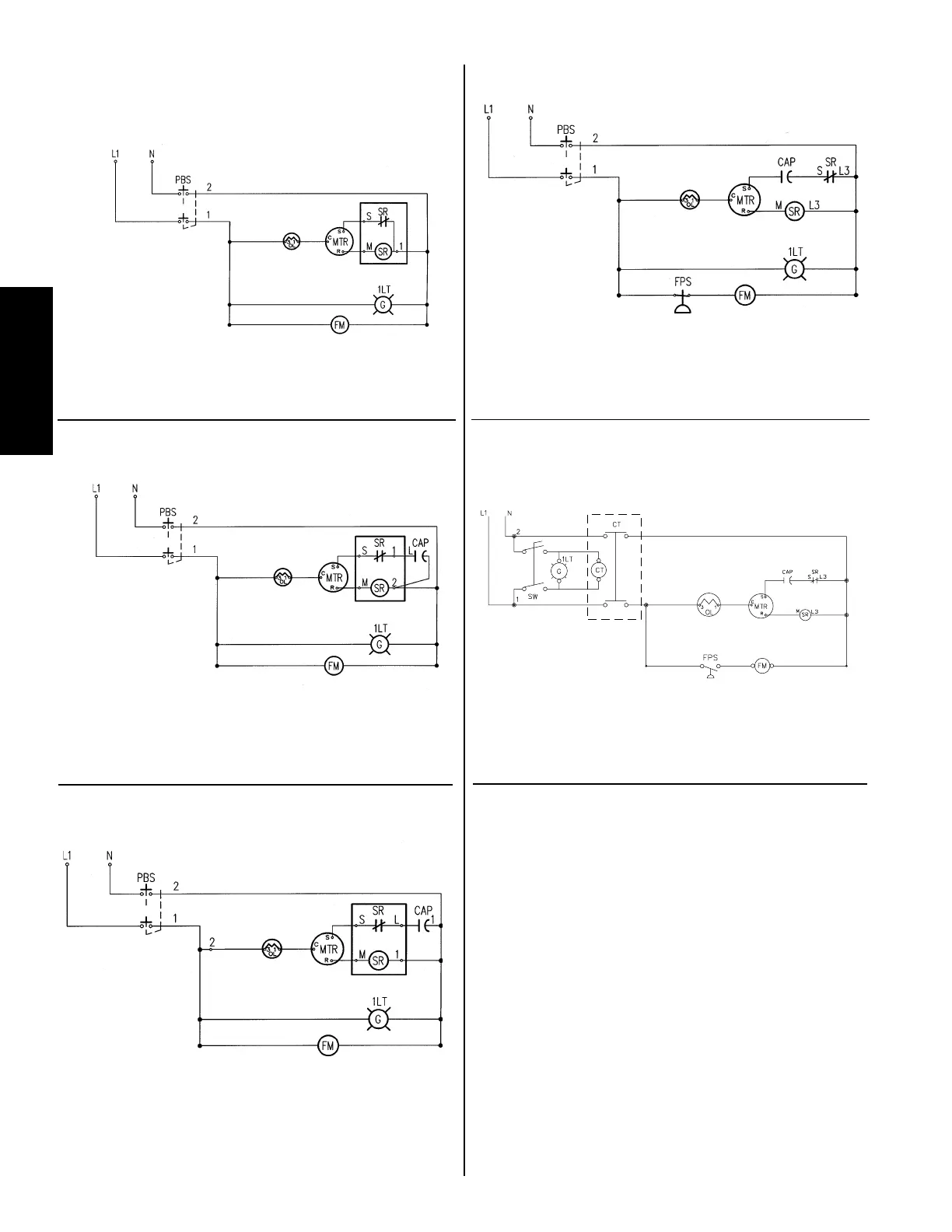

ELECTRICAL SCHEMATIC
Models 25, 35 - 115V/60 Hz; 208-230V/60Hz; 220-240V/50 Hz
Model 50 - 115V/60 Hz; 220-240V/50 Hz
Model 75 - 115V/60 Hz
Model 50 - 208-230V/60Hz
Model 75 - 208-230V/60 Hz; 220-240V/50 Hz
Models 100, 125 - All Voltages
Model 150 - 230V/60 Hz
Legend
PBS - Push button switch
1LT - Power-on light
SR - Start Relay
CAP - Start Capacitor
MTR - Compressor
FM - Fan Motor
OL - Overload
FPS - Fan Pressure Switch (Only on 150 scfm)
CT - Contactor w/115v coil
SW - On/Off Switch
Model 150 - 115V/60 Hz
