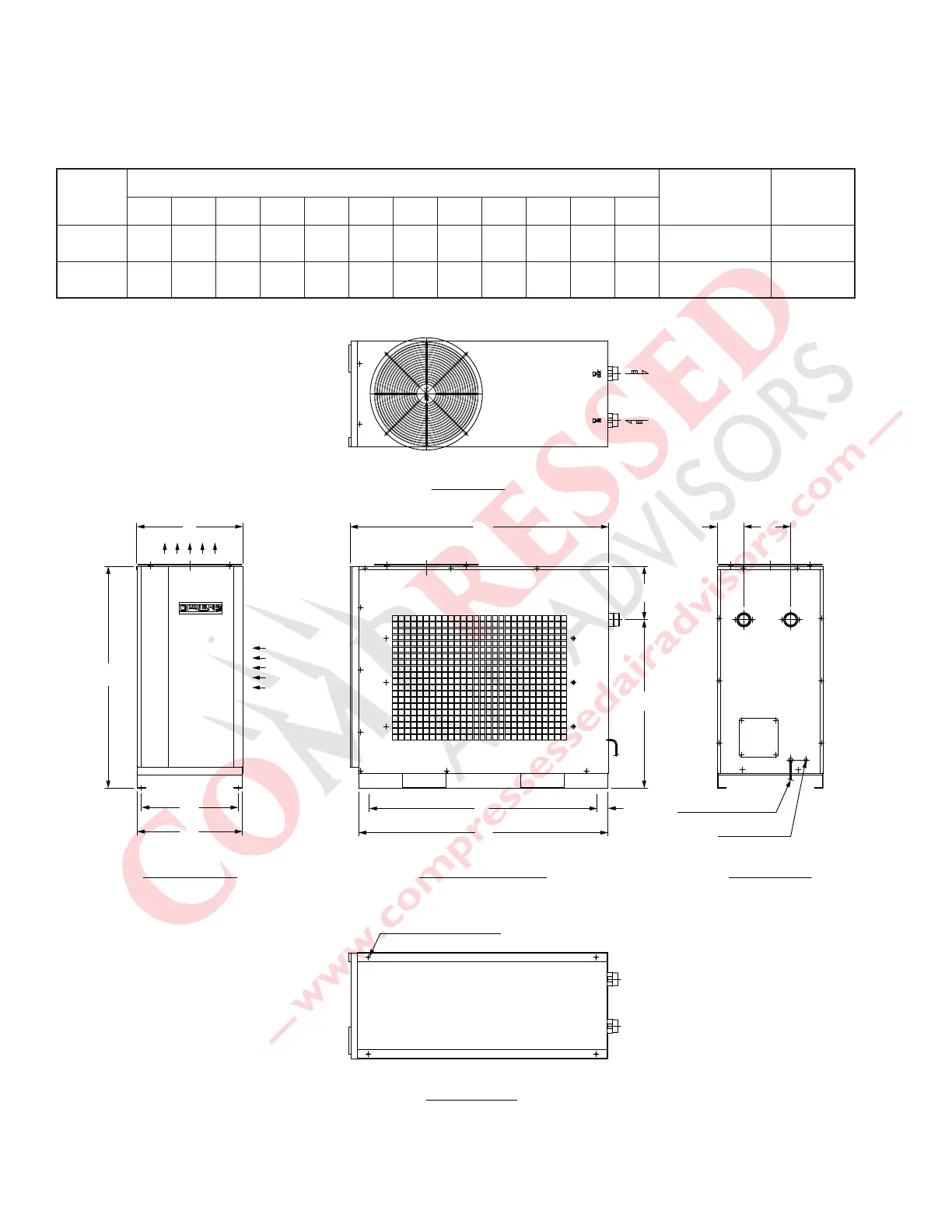

DRAWINGS: GENERAL ARRANGEMENT
Figure 5E
Models: FLX 4.5, FLX 5.5
DRIED AIR OUTLET
WETTED AIR INLET
AIR FLOW
COOLING
4-Ø10 MOUNTING HOLES
E
F
C
D
A B
G
H
MAIN POWER CABLE
DRAIN OUTLET
FOOT PRINT
FRONT VIEW REAR VIEW
RIGHT SIDE VIEW
TOP VIEW
I J
K
L
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H I J K L
FLX 4.5
4.87
(123.8)
8.58
(218)
9.79
(248.6)
30.83
(783)
19.43
(493.5)
40.61
(1031.6)
17.72
(450)
19.30
(490)
1.97
(50)
43.70
(1110)
47.64
(1210)
49.32
(1252.8)
2" NPT
366
(166)
FLX 5.5
4.87
(123.8)
8.58
(218)
9.78
(248.6)
30.83
(783)
19.43
(493.5)
40.61
(1031.6)
17.72
(450)
19.30
(490)
1.97
(50)
43.70
(1110)
47.64
(1210)
49.32
(1252.8)
2" NPT
396
(180)
