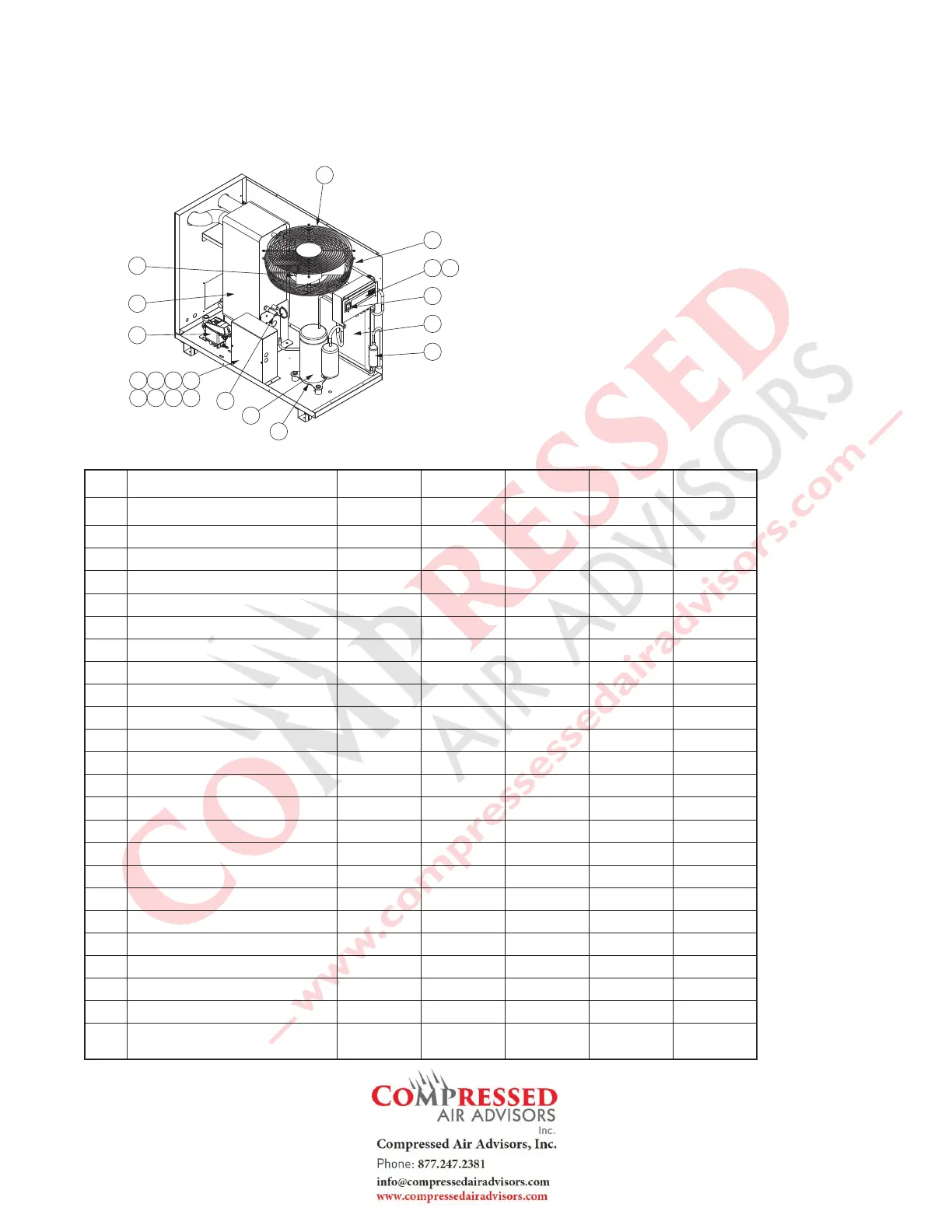

REPLACEMENT PARTS
FLX 2.1-4 FLX 3.1 FLX 4.1 FLX 4.5 FLX 5.5
ID# Part name (460V) (460V) (230V) (460V) (460V)
1 Refrigerant Compressor 3093041 3093041 7433664 7439957 7439957
2 Condenser 7439968 7440111 7439967 7439967 7440112
3 Fan Motor 7440246 7440057 7440113 7440057 7439969
4 Fan Grill — — 7440046 — —
5 Fan Grill (Ext.) 7440059 7440061 7440060 7440061 7440000
6 Filter Dryer 7433676 7433676 7433676 7433676 7433676
7 Plate Heat Exchanger 7440116 7440117 7440118 7440118 7440119
8 High Pressure Switch 3161273 7433678 7433678 7433678 7433678
9 No Loss Drain Valve 7440053 7440053 7440053 7440053 7440053
10 Controller 7440051 7440051 7440051 7440051 7440051
11 Temperature Sensor 7440249 7440250 7440250 7440250 7440250
12 Magnetic Contactor (Compressor) 7440251 7440251 7433698 7440251 7440251
13 Magnetic Contactor (Fan) 7440221 7440221 — 7440221 7440221
14 On/Off Switch 3209745 3209745 7440052 3209745 3209745
15 Start Capacitor — — — — —
16 Run Capacitor — — 7433695 — —
17 Crankcase Heater 7439996 7439996 7440067 7439996 7439996
18 Voltage Transformer 7439965
7439965 — 7439965 7439965
19 PTC Relay (Compressor) — — — — —
20 Overlaod Protection (Compressor) — — — — —
21 Thermal Overload Relay 7440257 7440257 — 7440258 7440258
22 Controller Fuse (located on the board) 7440252 7440252 7440252 7440252 7440252
23
Enclosure Fuse
(located in the side of the electrical)
7440253 7440253 — 7440253 7440253
3
7
9
21 23
8 12 13 15
1
17
11
6
2
14
10
4
5
20
4
3
5
10
2
6
14
11
12 15 16
7
9
FLEX 1.1
FLEX 1.2 - FLEX 5.1
191
22
22
16 18
8
Models: FLX 2.1-4, FLX 3.1, FLX 4.1, FLX 4.5, FLX 5.5
