DESCRIPTION

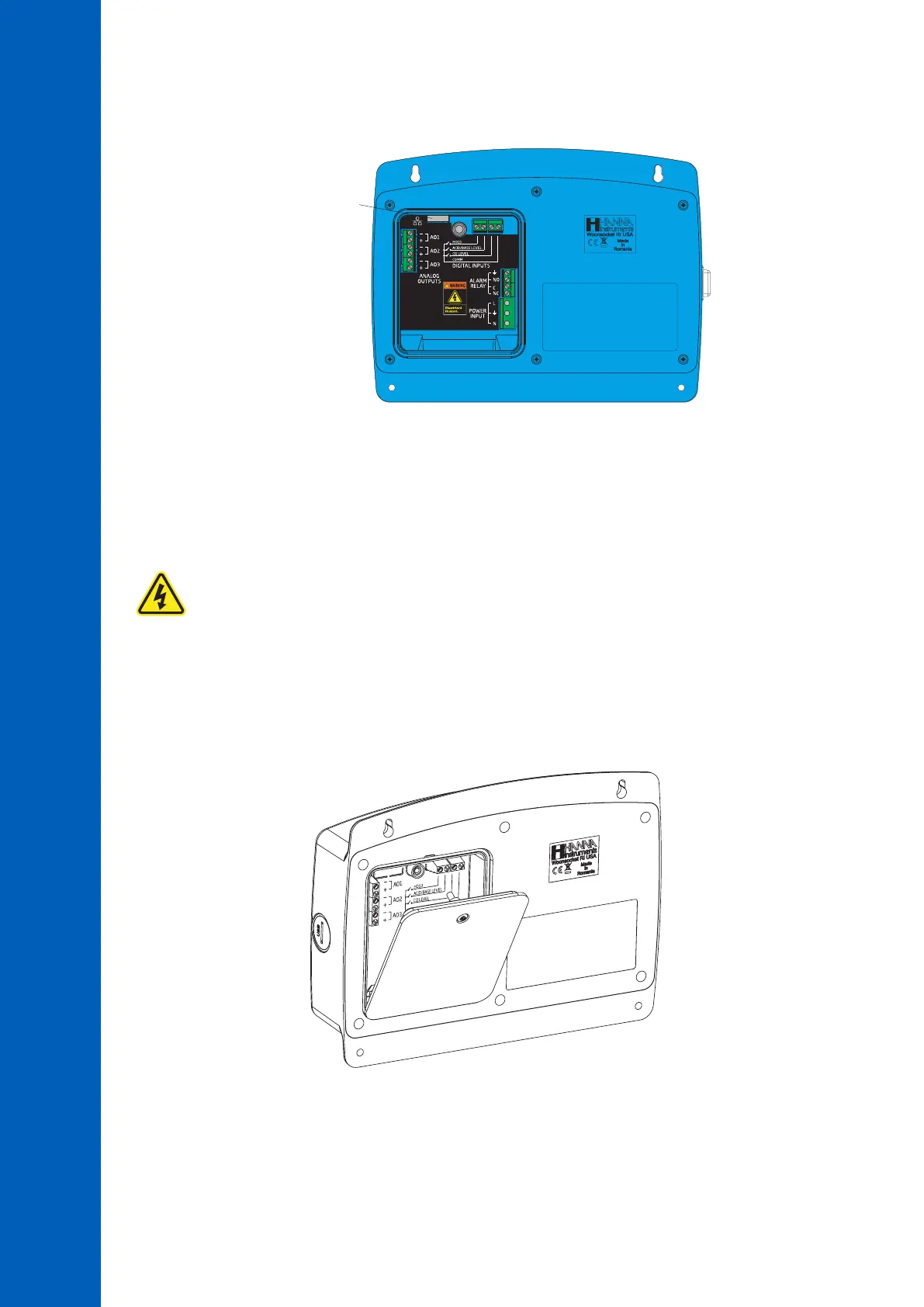

Rear Sub Panel
Etherne
t connector
Note: The analog outputs – AO1, AO2, AO3 – are available only for BL121 & BL123.
The Ethernet connector is available only for BL122 & BL123.
Warning! Always disconnect the Pool Controller from power when making electrical connections. Do not access
the larger rear panel. User-serviceable terminals are found in the small sub panel only.
Use a Phillips head screwdriver and remove the single screw attaching the small back cover.
To replace the detachable rear panel, attach the bottom part of the panel to the controller and push to close. Tighten the screw
that secures the panel to the housing.
