Unplug the instrument from the power
supply before replacing the fuse.
1. Fuse Holder
2. Power supply
3. Acid/Basic dosage selection
4. Reductant or oxidant dosage consent
5. Connections for dosing pump
6. Alarm contacts
7. Recorder output
8. Connections to the transmitter.

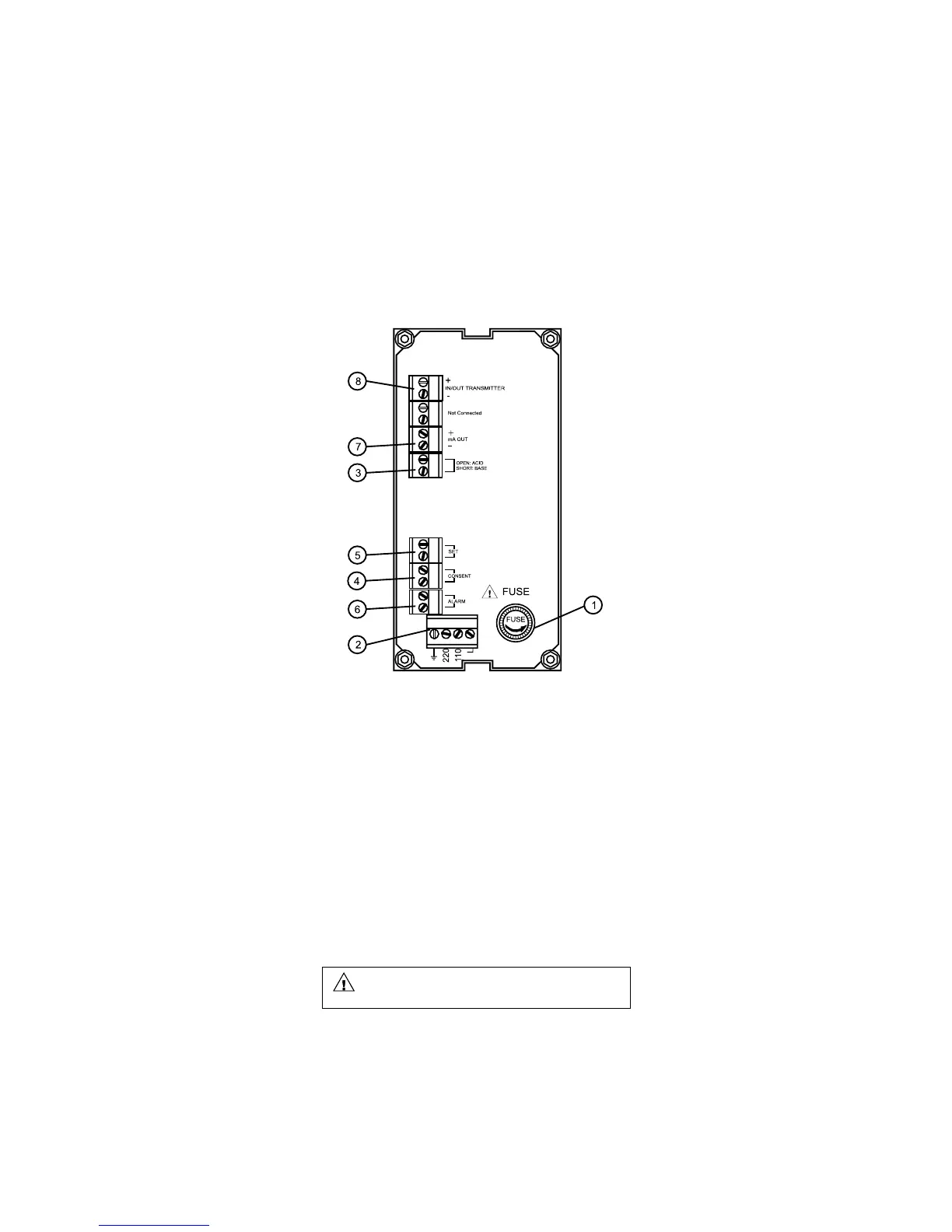

REAR PANEL HI 8710T
