Hanna Instruments HI 8711 User Manual

3

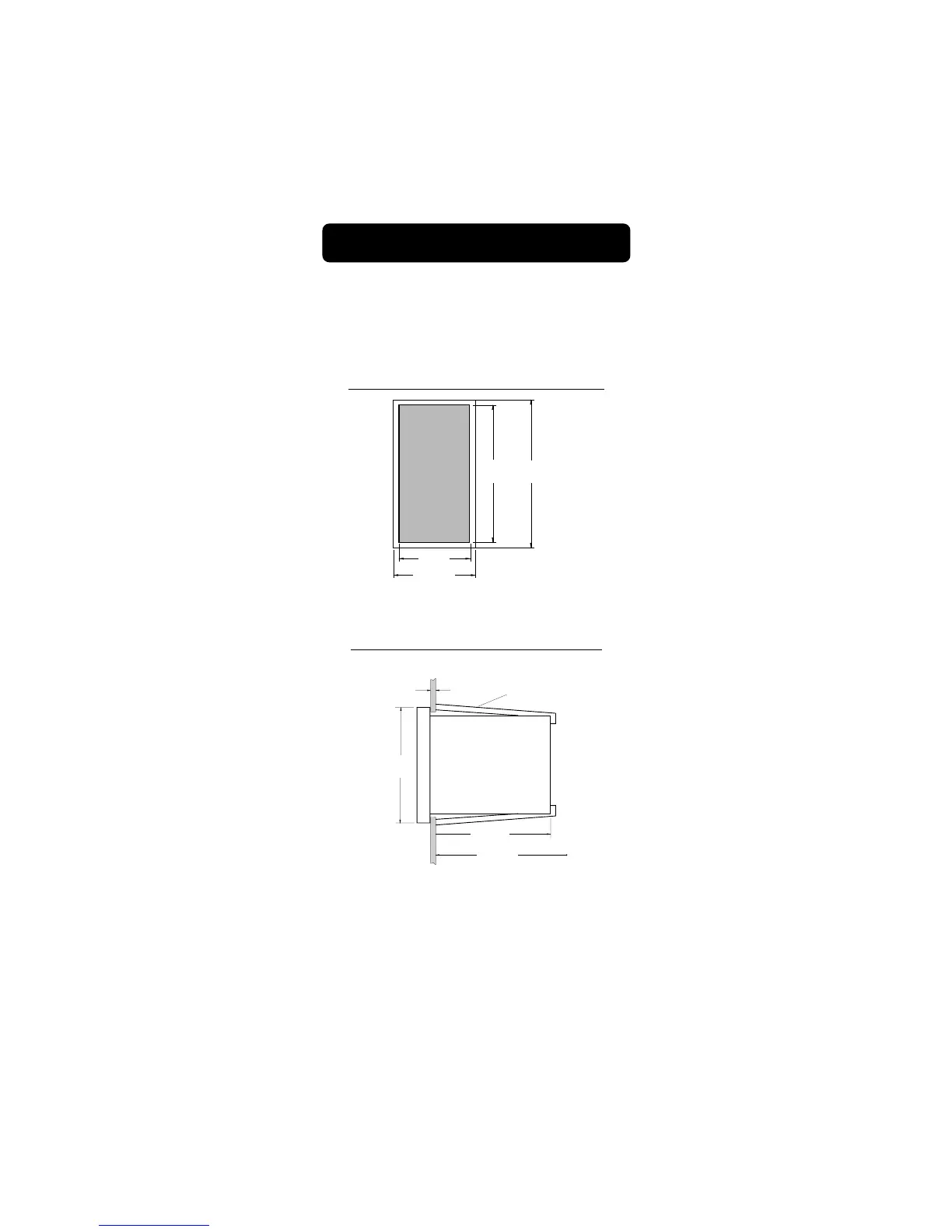

MECHANICAL DIMENSIONS
The meters have a DIN 43 700 casing in
black anodized aluminum. Front and back of
the instruments are supplied with shockproof
ABS plastic and a transparent protective cover
for the front panel.
Front view of the panel-mounted unit.
These dimensions show the cutout size for
the installation.
Side view of the panel-mounted unit.
Adjustable location brackets (supplied with
the meter) allow the indicator to slide into the
cutout and will hold the unit securely in place.
190 mm (7.50") is the minimum amount of
room required to install the indicator with the
cables connected.
190mm MIN
7.50"
135mm
5.31"
0.25/4mm
0.01/0.160"
144mm
5.67"
ADJUSTABLE
LOCATION
BRACKET
141mm
5.55"
144mm
5.67"
69mm
2.71"
72mm
2.83"
