INSTRUMENT DESCRIPTION

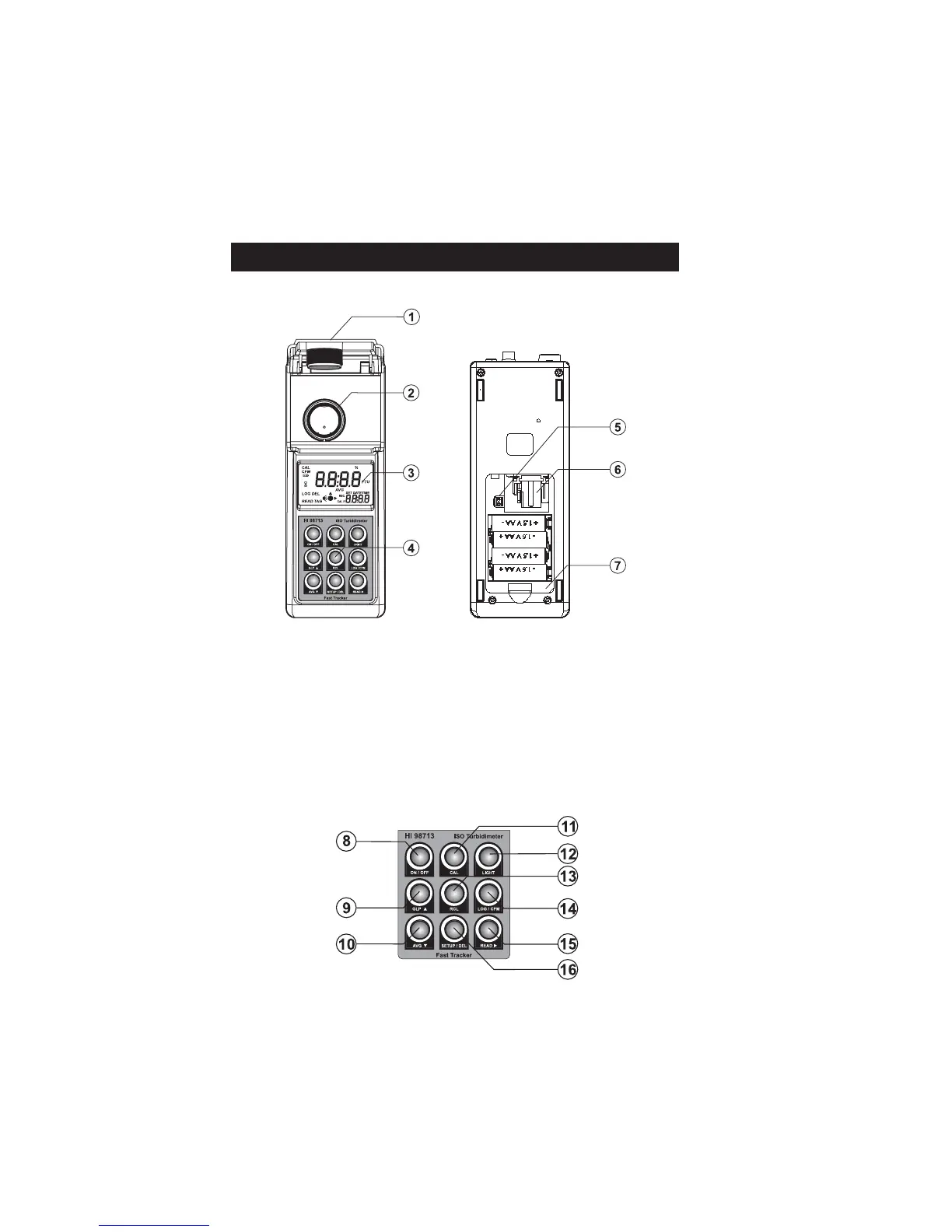

1) Cuvet Lid. Close the cuvet lid prior to start a measurement.
2) Cuvet Holder. Insert the cuvet into the holder with the cuvet mark matching the case mark.
3) Liquid Crystal Display (LCD). The LCD has backlight for better visibility in dark environments.
4) Keypad. Splash proof resistant.
5) LED connector. Connect the new LED using a screwdriver during LED changing procedure.
6) LED. Replaceable infrared LED.
7) Battery Lid. Remove the battery lid in order to change batteries or replace the LED.
KEYPAD DESCRIPTION
