Hansa C13 PTO - Chipper Components (C21 Pto); Parts Supplied for Assembly

Hansa C13/C21 PTO O&M Manual – OM-008 Revision E 13/06/2019
© Hansa Chippers 2019
2

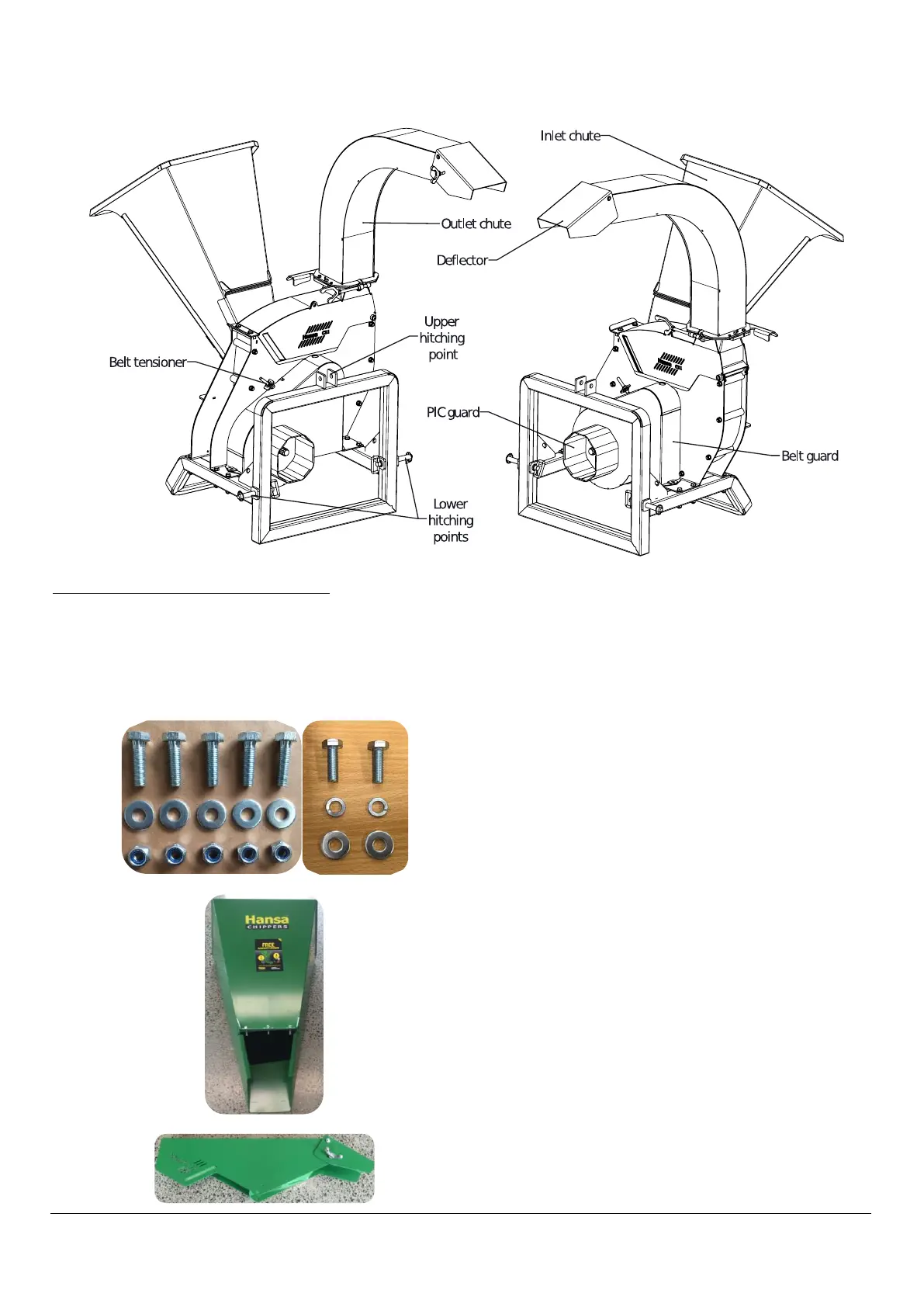

Chipper components (C21 PTO)
Tools required for assembly (not supplied):
• 16 mm spanner - to fit the inlet and outlet chute
• 17 mm spanner - to fit the inlet and outlet chute
• Two 24 mm spanners - to fit the fixed inlet chute on the C13
Parts supplied for assembly
All fasteners included to fix inlet chute and outlet chute
onto the chipper
Inlet chute
Fixed outlet chute (if you have purchased a fixed outlet
chute C13 model)
