If the tension needs
adjustment:
1. Remove the engagement
guard (shown
transparently in image)
by removing the 3 guard
bolts
2. Loosen the two
engagement nuts. Move
the nuts further up the
shaft for more tension
(more tensioner angle) or
further down the shaft
for less.
3. Tighten the locknuts
against each other
4. Turn the engagement
handle fully clockwise
and check tension again
5. Reinstall the guard
Belt replacement

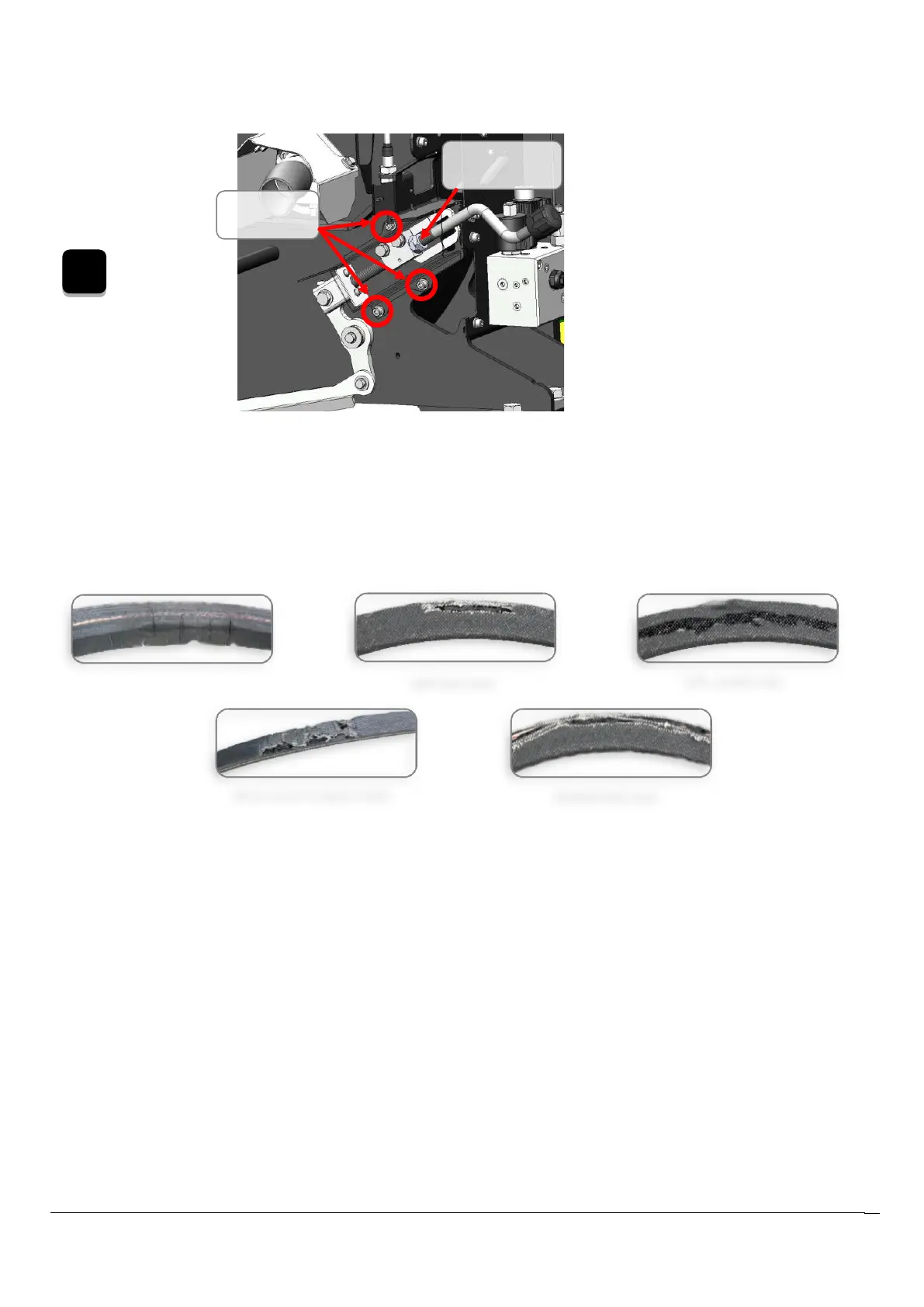

If the belts in your chipper look similar to any of the following images or are clearly worn, then they need to be replaced.
To remove the belts, open the bonnet and fully disengage the belts. The C65RX requires four SPB1360 belts.
3
Remove 3
guard bolts
Tension
adjustment nuts
Cracked underside of belt
Sidewall belt wear
Soft, swollen belt
Worn cover on back of belt
Split belt cover
