Hantarex EQ/3 User Manual

VI-EQ/3 M. S. - 0012

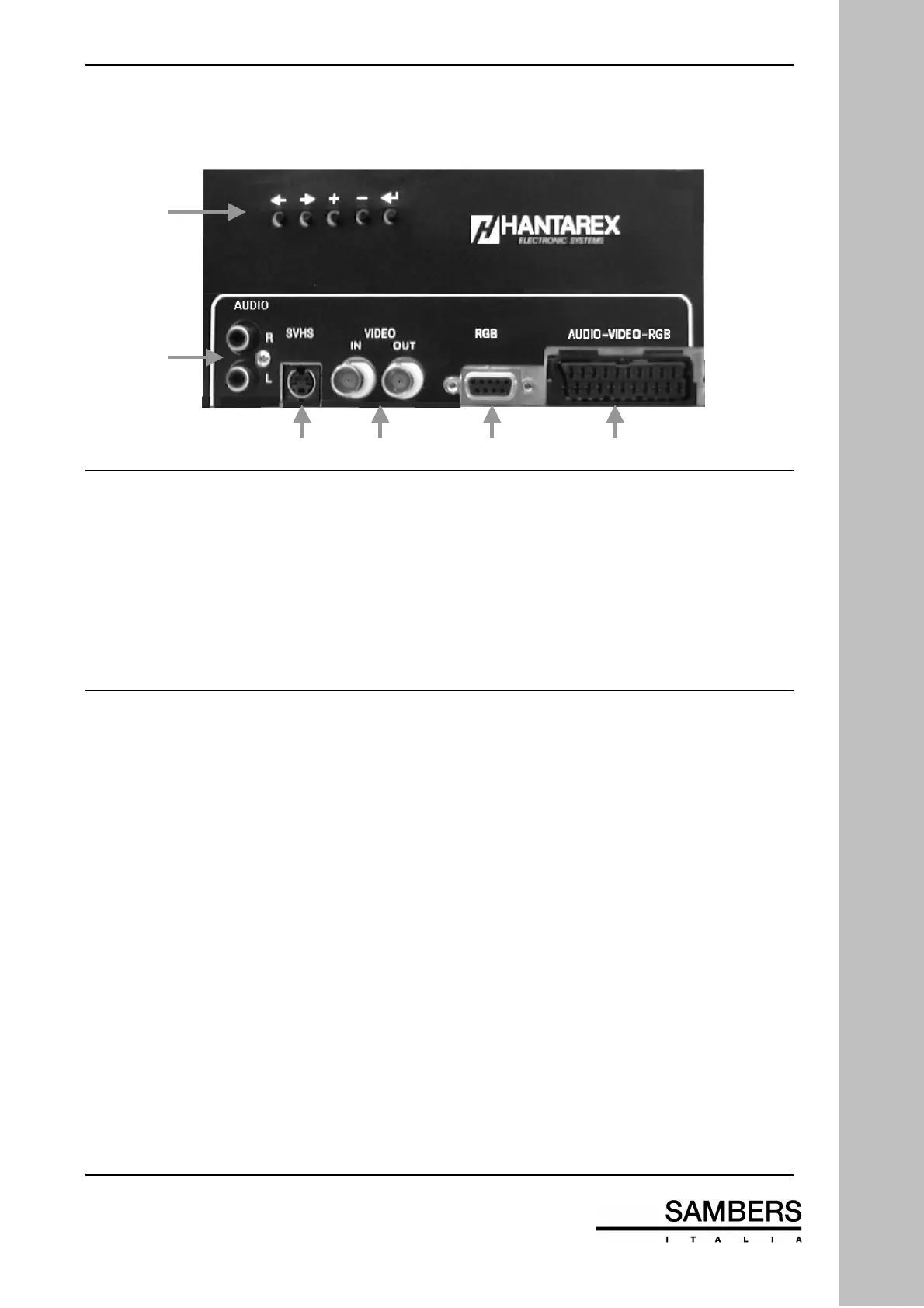

TECHNICAL SPECIFICATION AND INPUT CONNECTIONS
VERSION “EQ/3” MONITOR
1
2
3 4 5 6
♦
Power 230 V
∼ ±
15% (15 V
∼ ±
15% optional)
♦
Max. power consumption 90W - 21”
110W - 25” – 28” – 29” – 34”
♦
Colour system: Standard: PAL – SECAM – NTSC 4.43 and 3.58 automatic
selection.
♦
Standard signals : CCIR 625 linee/50Hz – EIA 525 lines/60Hz
♦
Passing video bandwidth: Composite video : 6Mhz (-3 dB) – RGB 8 MHz (-3dB) –
SVHS 8Mhz (-3 dB)
♦
Operating temperature from +5 to +40°C
1
Control panel: 5 keys to completely control the monitor with OSD.
2
Audio Input/output: 0,5 V rms RCA Connector.
3
S-VHS input 4-prong minidin connector. Y Input: 1 Vpp at 75
Ω
-
Passing bandwidth: 8MHz. Croma input: 350 mV at 75
Ω
.
4
Video input: BNC – “Looped-trough” with termination at 75
Ω
excludible. 1Vpp
3 dB with negative synchronism. Bandwidth: 6 MHz
5
RGB analog input: 9-pin D plug. RGB input: 0,7 Vpp at 75
Ω
with negative, positive
synchronism, selectable sync on green. TTL input available
optionally.
6
SCART socket Video input: 0,7 Vpp at 75
Ω
. Negative synchronism.
RGB input: 0,7 Vpp with negative, positive synchronism, and
selectable sync on green.
Audio input: 0,5 Vrms. Fast RGB voltage commutation input: 1,5 -
12 V
TECHNICAL SPECIFICATION
2
