To measure a DC current which is larger than 600mA, follow these steps:
1) Click the “A” key and then “DC” appears on the screen. The unit on the main reading screen is
mA.
2) Click “A” key to switch to 10A measurement, the unit on the main reading screen is A.
3) Connect the black lead into the COM banana jack input and the red lead into the 10A banana
jack input.
4) Connect the red and black leads to the measured points and the DC current value of the
measured points will be displayed on the screen.
5) Click “A” to return to 600mA measurement.
Connect Data Logger probes(HT325) with Hantek365 as illustrated in the following figure:
Figure 2-7

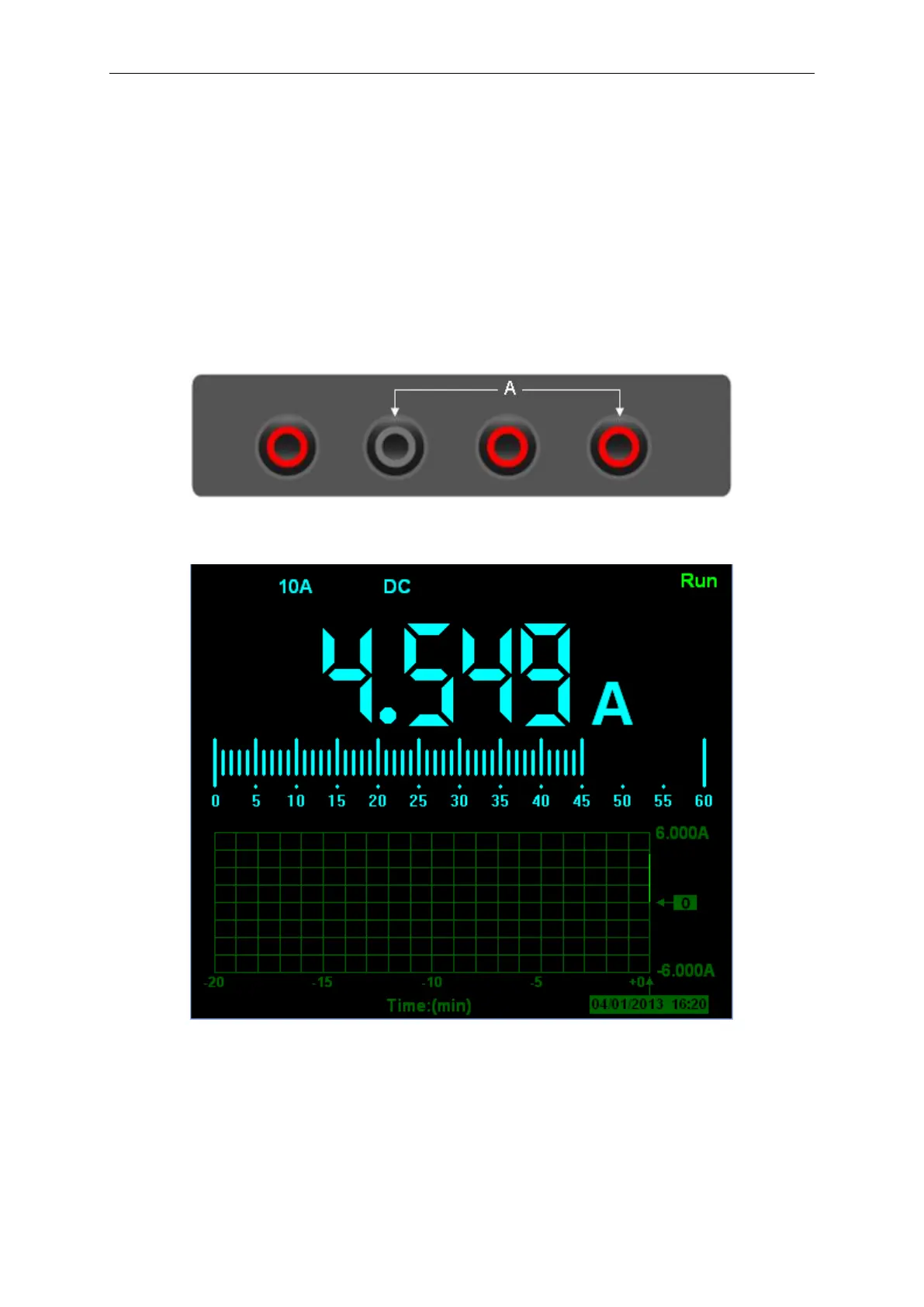

Then, the following figure will be displayed on the screen:
Figure 2-8 DC current Measurement for 10A
2. Making an AC Current Measurement
To measure an AC current which is less than 600mA, follow these steps:
1) Click the “A” key and then “DC” appears on the screen. The unit on the main reading screen is
“mA”, and “mA” will display on the screen, Click “mA” to switch the measurement between mA and
