Getting Started Guide
DSO1000B Series HandHeld Oscilloscope User Manual 5

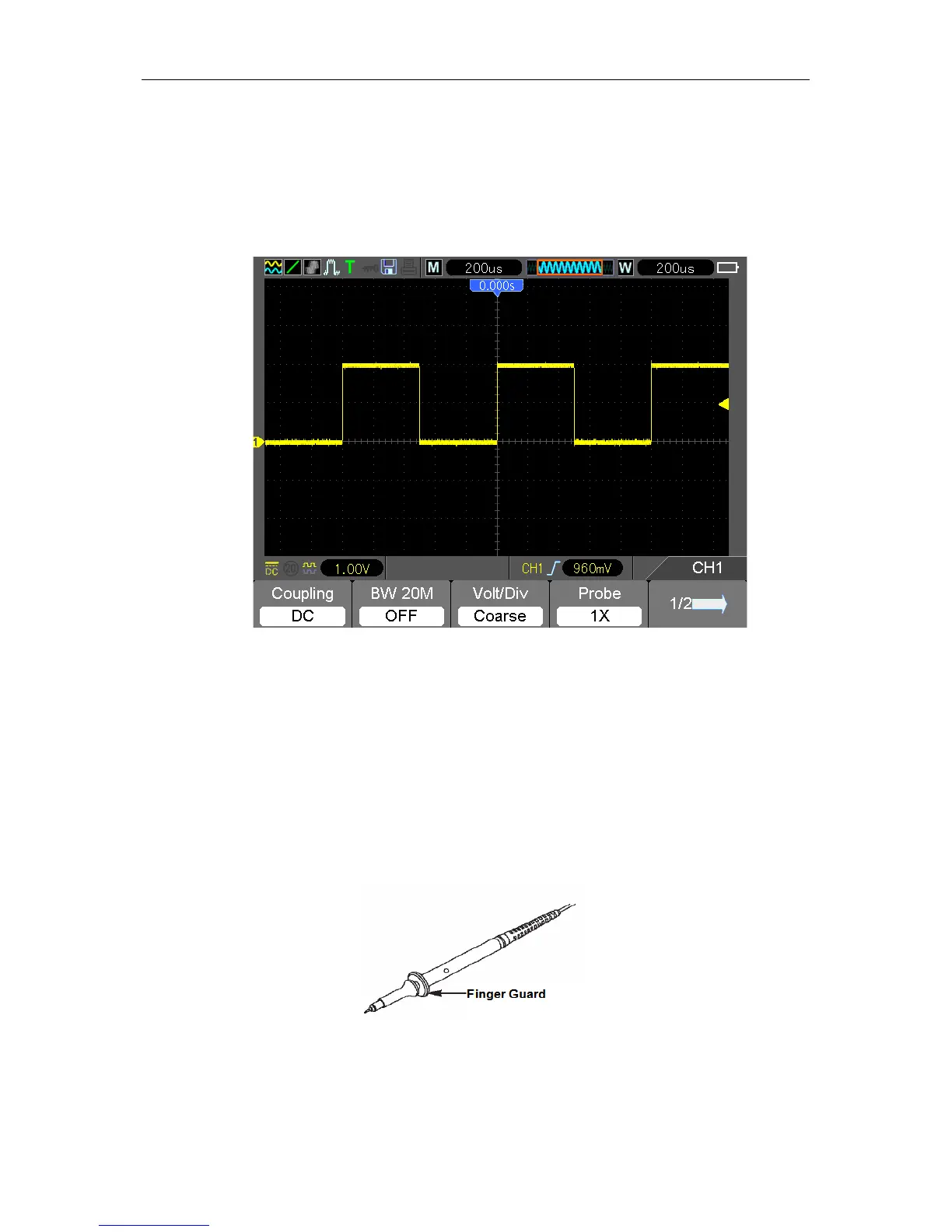

3.2.3 Observe the waveform
Press the AUTO button and you should see within a few seconds a square wave of about 2V
peak-to-peak at 1kHz in the display. Press the CH1 MENU button and remove Channel 1. Push
the CH2 MENU button and repeat Step 2 and Step 3 to observe Channel 2.
3.3 Probe Examination
3.3.1 Safety
When using the probe, keep your fingers behind the guard on the probe body to avoid electric
shock. Do not touch metallic portions of the probe head while it is connected to a voltage source.
Connect the probe to the oscilloscope and connect the ground terminal to ground before you start
any measurements.
