Getting Started Guide
DSO1000B Series HandHeld Oscilloscope User Manual 4
Chapter 3 Getting Started Guide
3.1 Installation
To keep proper ventilation of the oscilloscope in operation, leave a space of more than 5cm away
from the top and the two sides of the product.
3.2 Functional Check
Follow the steps below to perform a quick functional check to your oscilloscope.

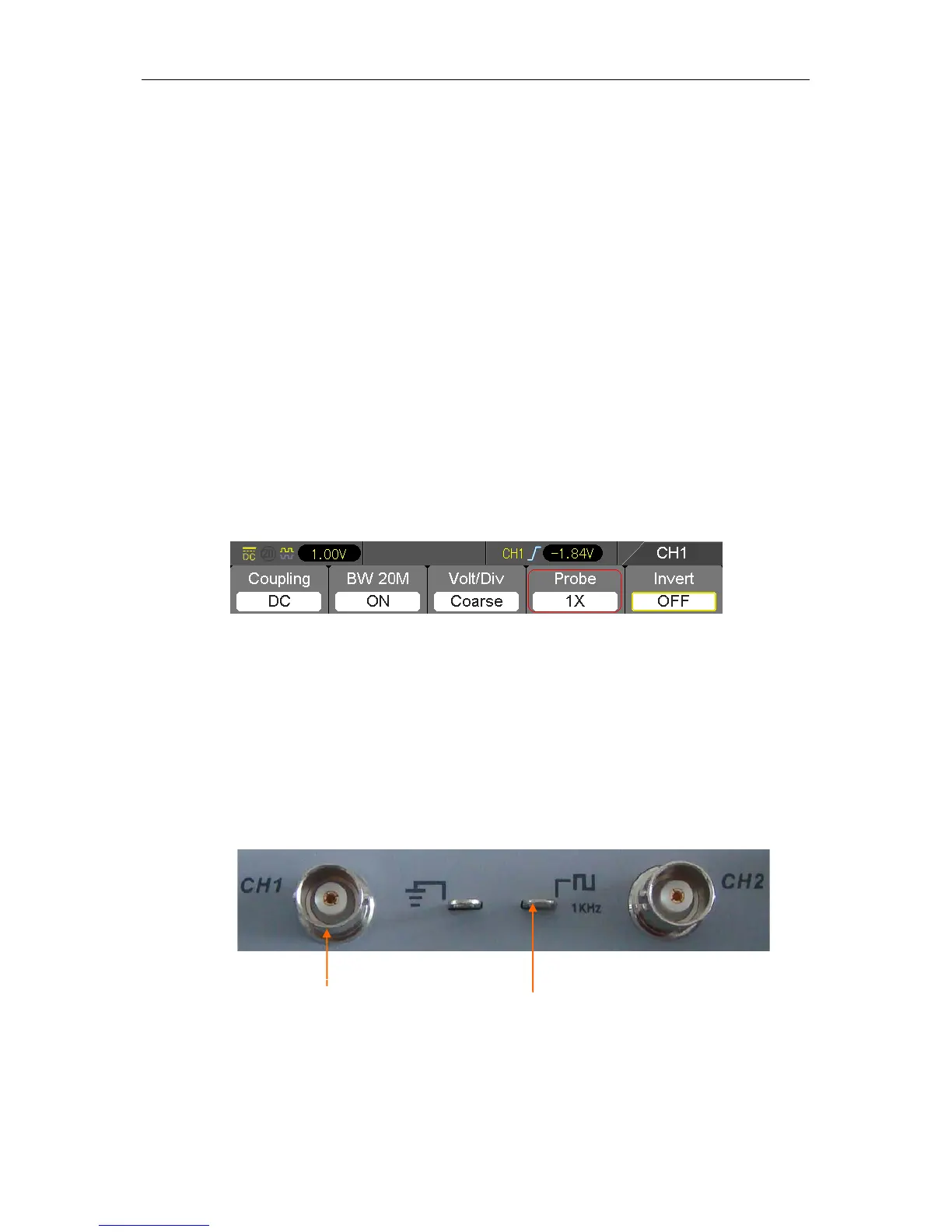

3.2.1 Power on the oscilloscope
Press the ON/OFF button. The default Probe option attenuation setting is 1X.
The default probe parameter
3.2.2 Connect the oscilloscope
Set the switch on the probe to 1X and connect the probe to Channel 1 on the oscilloscope. First,
align the slot in the probe connector with the protuberance on the CH1 BNC and push to connect;
then, turn to right to lock the probe in place; after that, connect the probe tip and reference lead to
the PROBE COMP connectors. There is a mark on the panel: Probe COMP ~2V@1KHz.
CH1: to connect with the
probe
To Next Page
