Basic Operation
DSO1000B Series HandHeld Oscilloscope User Manual 16
Holdoff None Select this menu and click the up and down Arrow
keys to adjust the trigger holdoff time within the range
of 100ns-10s.
Autoplay None This function is usable in dual-window mode. Push
this menu button and auto move it from left to right at
a specified speed. In the expanded window will
display corresponding waveforms until it stops once
reaching the rightmost side of the major scan window

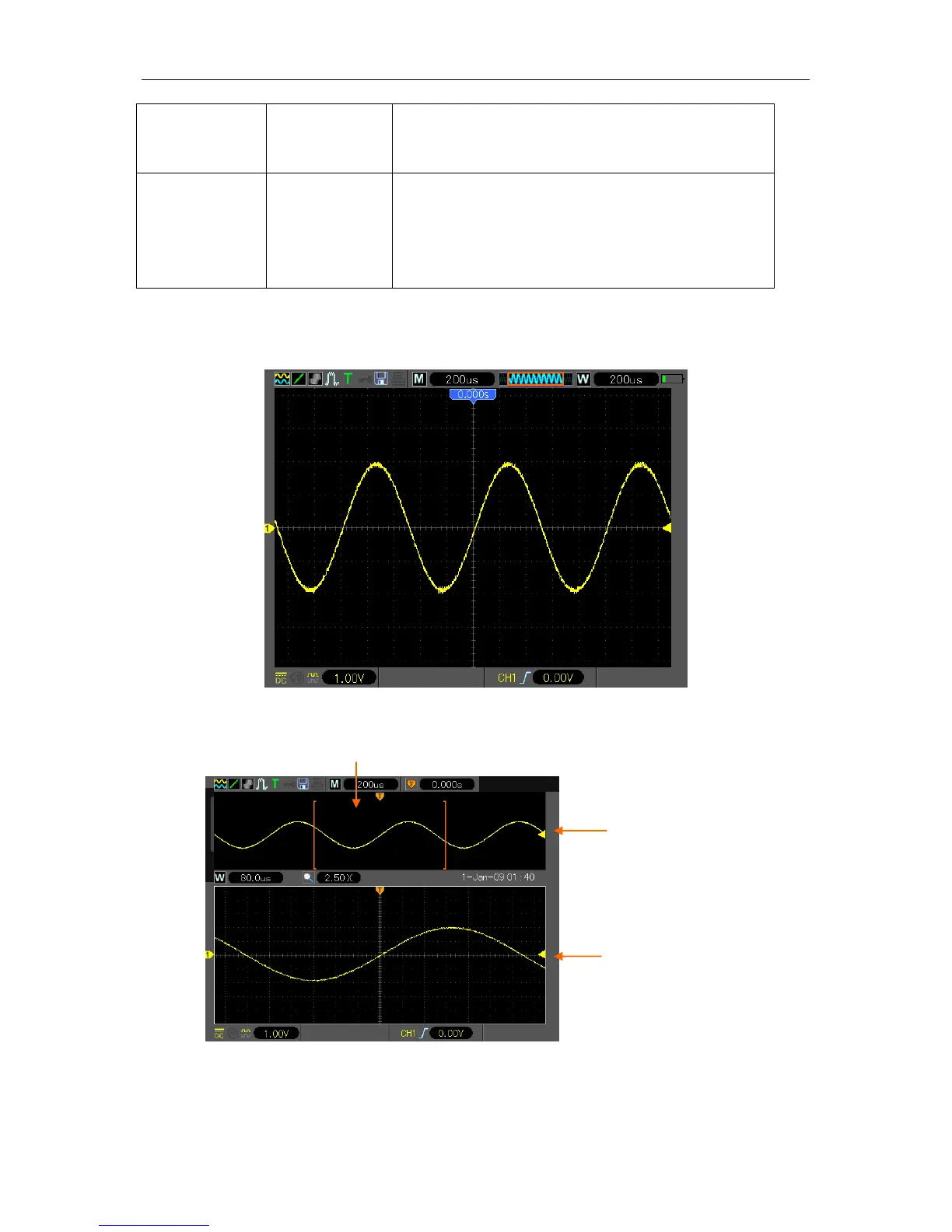

Single-window Mode
Dual-window Mode (Full Screen)
3.TIME/DIV: Used to change the horizontal time scale so as to magnify or compress the waveform
horizontally. If the waveform acquisition is stopped (by using the RUN/STOP button), the TIME
Location of expanded window data in memory
To Next Page
