Hantek DSO2D15 - LIN Decode

37 / 72
UART decode settings: Source: CH1; Baud: 19200; Idle: High; Parity: No; Data Bit: 8; When: “Start”.

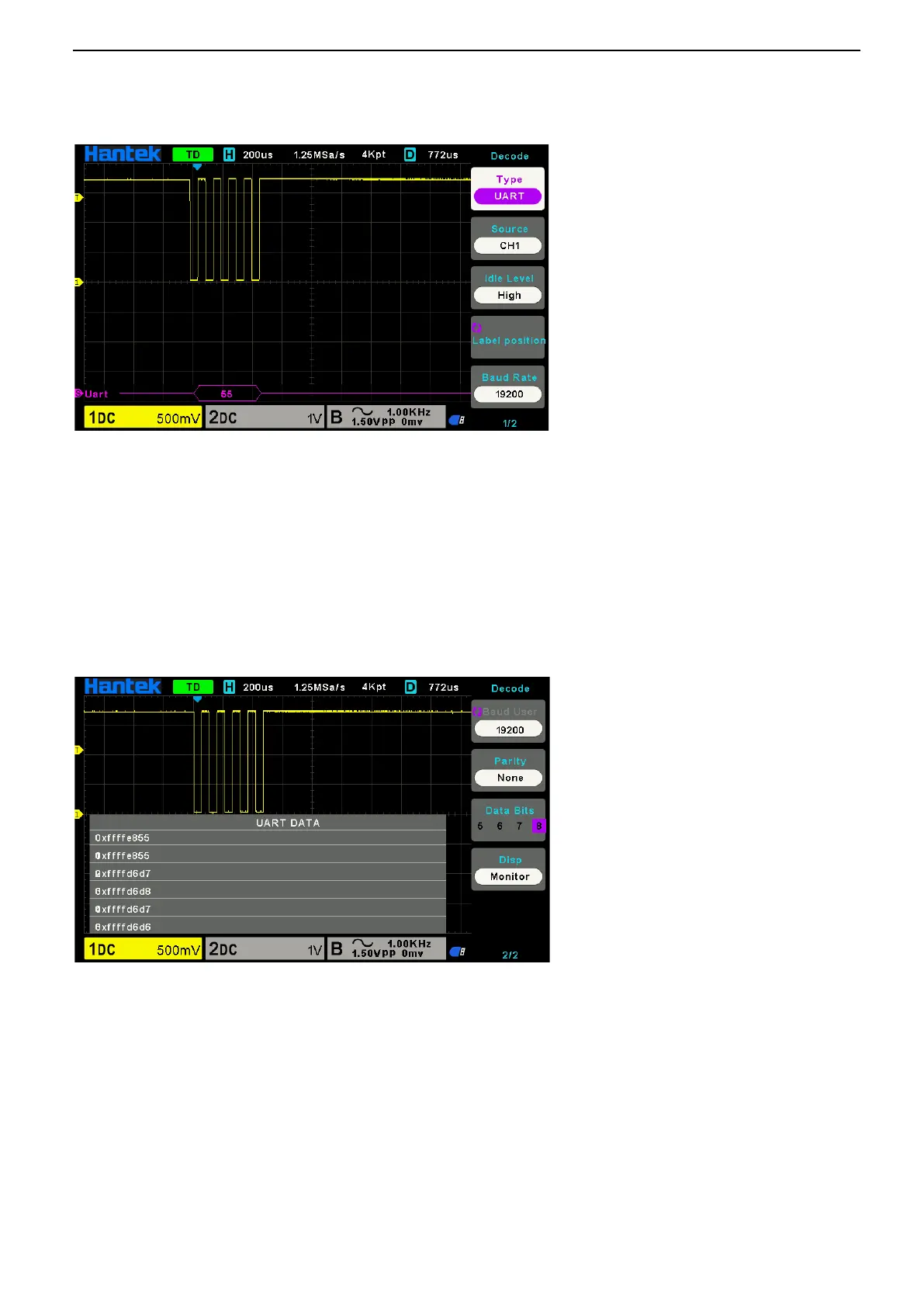

The trigger result is shown below:
UART Decode interpretation:
1. The decode data is displayed in hexadecimal;
2. The decoded data is at the bottom of the waveform interface by default, and displayed in purple;
3. When there are "?" or "adjust the time base", you need to adjust the time base to see the
decoding results.
UART text interface is shown as below:
2.8.2. LIN Decode
LIN decode settings: Source: CH1; Baud: 19200; Idle: High; When: Identifier; Identifier: 0X15; And set
the trigger level.
The trigger result is shown below:
