Hantek DSO2D15 User Manual

59 / 72
: Vertical arrow, turn the Multifunctional Knob to set a value.
3.3. Burst setting
Press the front panel Burst button to enter the burst menu.
Press the Count soft key to set the number of pulses. The range is 1~1024.
The data source is specified as manual.
Press Burst to output a burst with a specified number of cycles.
3.4. Edit Arbitrary Waveform

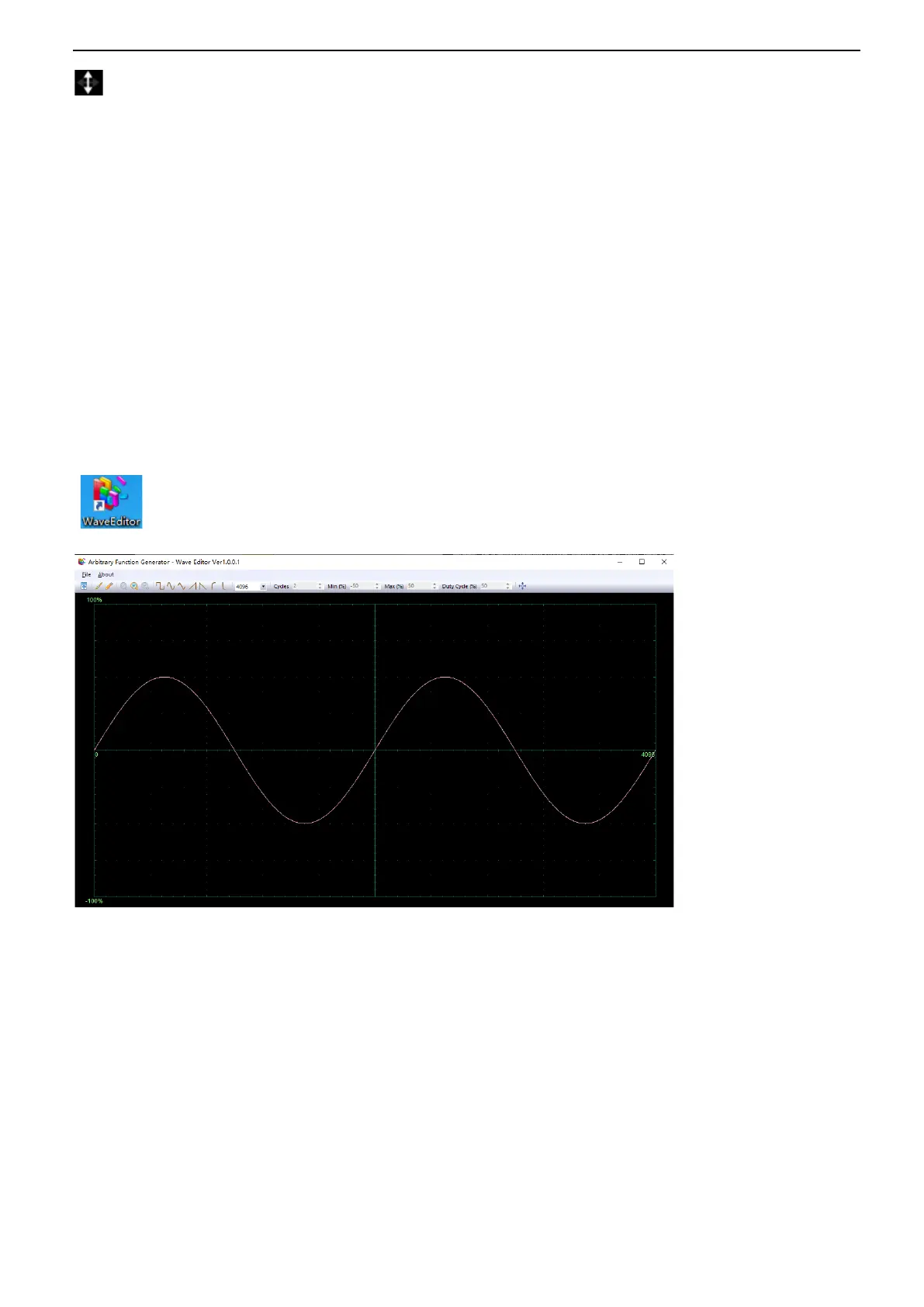

Double click “WaveEditor.exe” in WaveEditor folder in CD disk to enter arbitrary waveform generator
window.
.
Menu:
Import from CSV: Import the CSV format file to the arbitrary waveform generator window.
Export as CSV: Save as CSV format file.
Import from ARB: Import the ARB format file to the arbitrary waveform generator window.
Export as ARB: Save as ARB format file.
Note: The device can recall ARB format file in USB disk, but CSV format file can’t be recalled by the
device.
Toolbar buttons

Hantek DSO2D15 Specifications

General

Bandwidth	150 MHz
Channels	2
Sample Rate	1 GSa/s
Memory Depth	8 Mpts
Vertical Resolution	8 bits
FFT	Yes
Digital Voltmeter	Yes
Frequency Counter	Yes
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Display	7 inch TFT LCD
Vertical Sensitivity	2 mV/div ~ 10 V/div
Waveform Generator	25 MHz
Input Impedance	1 MΩ ± 2%
Interface	USB Host, USB Device
