Page #62 background imageLoading...
Page #62 background image
62 / 72

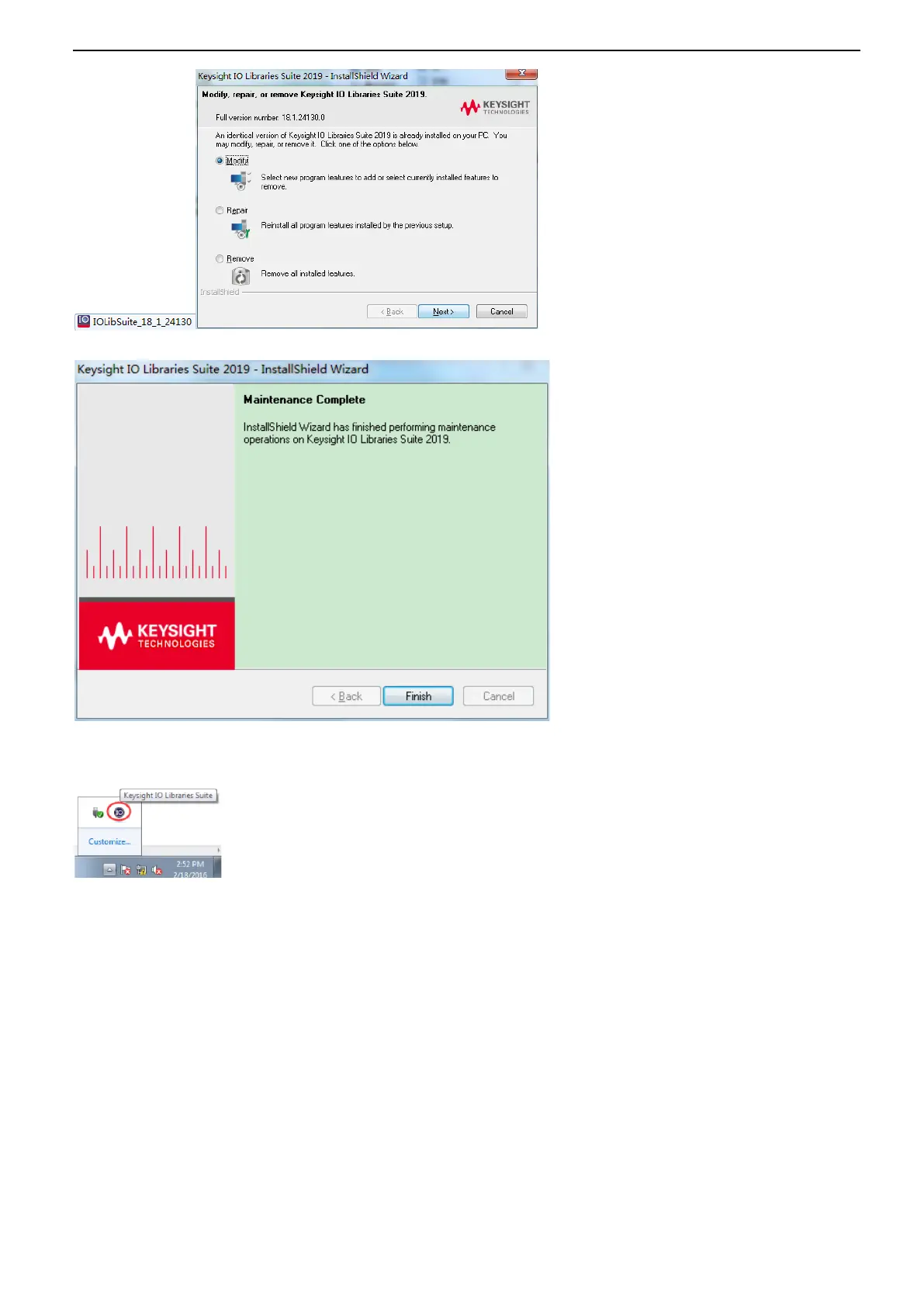

After installation, you can see the running IO software in the lower right corner of the screen.
Double-click to open the IO software, you can see the connected device information displayed under
My Instrument-USB.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hantek DSO2D15 and is the answer not in the manual?

Hantek DSO2D15 Specifications

General IconGeneral
Bandwidth150 MHz
Channels2
Sample Rate1 GSa/s
Memory Depth8 Mpts
Vertical Resolution8 bits
FFTYes
Digital VoltmeterYes
Frequency CounterYes
Trigger ModesEdge, Pulse, Video, Slope, Alternate
Display7 inch TFT LCD
Vertical Sensitivity2 mV/div ~ 10 V/div
Waveform Generator25 MHz
Input Impedance1 MΩ ± 2%
InterfaceUSB Host, USB Device
