Hantek DSO2D15 User Manual

9 / 72
digital oscilloscope so that you can get familiar with this series of digital oscilloscope well within the
shortest time.

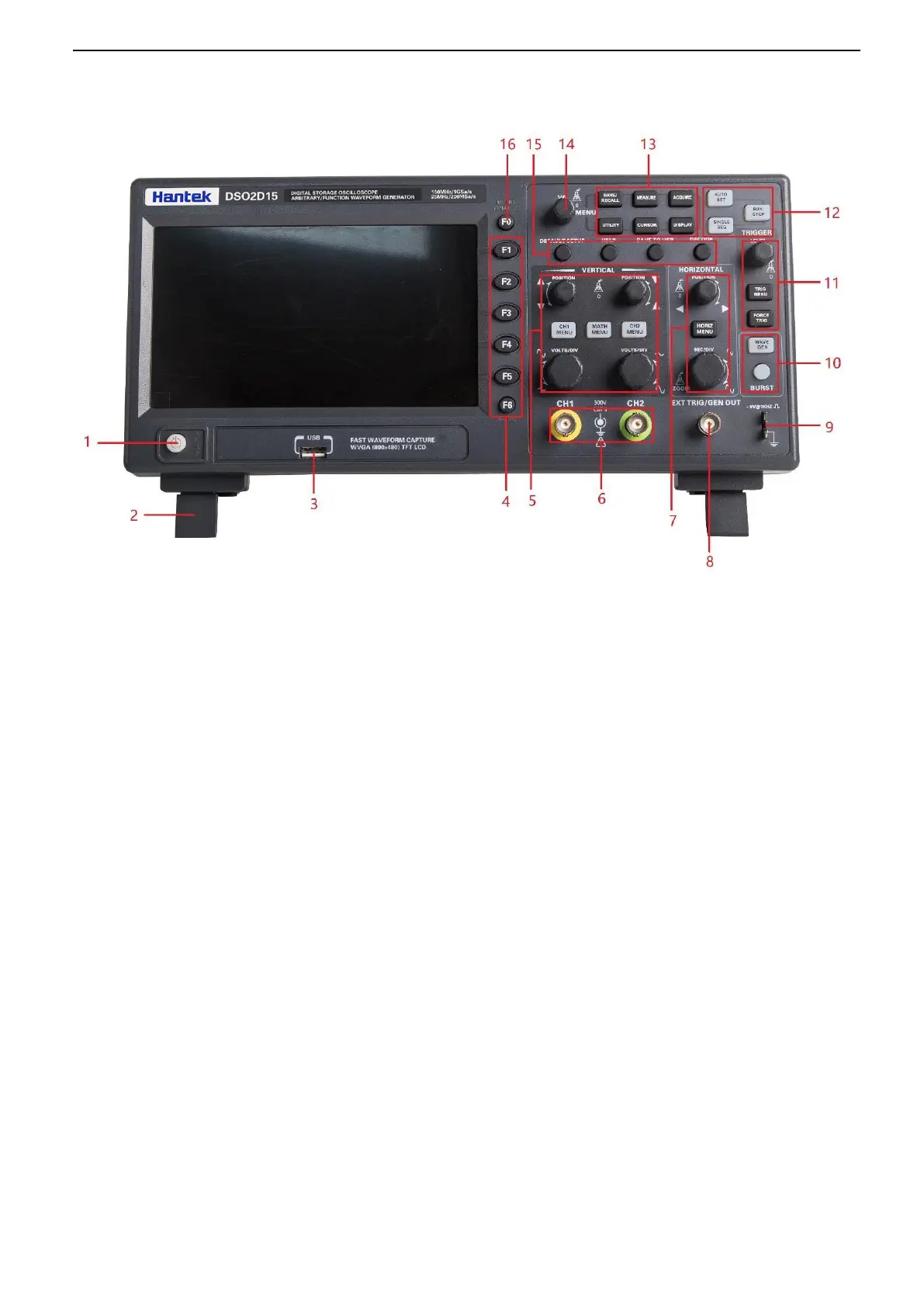

1. Power button
2. Bracket
3. USB interface
4. Menu selection key
5. Vertical control system
6. CH1、CH2 Input Channel for signal
7. Horizontal control system
8. Signal source output (only valid for model with function generator) /external trigger input channel
9. Probe compensation function zone
10. Signal source (only valid for model with function generator)
11. Trigger control system
12. Operation mode hot key (Run/Stop, Single SEQ, Auto Set)
13. Menu Function Button
14. Multifunctional Knob
15. Function hot key
16. Menu display/hide key

Hantek DSO2D15 Specifications

General

Bandwidth	150 MHz
Channels	2
Sample Rate	1 GSa/s
Memory Depth	8 Mpts
Vertical Resolution	8 bits
FFT	Yes
Digital Voltmeter	Yes
Frequency Counter	Yes
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Display	7 inch TFT LCD
Vertical Sensitivity	2 mV/div ~ 10 V/div
Waveform Generator	25 MHz
Input Impedance	1 MΩ ± 2%
Interface	USB Host, USB Device
