Hanwell IM6001 - Page 23

Hanwell Smart Receiver 2 (SR2)
Instruction Manual
hanwell.com
Page 21 of 22 IM6001 - 3

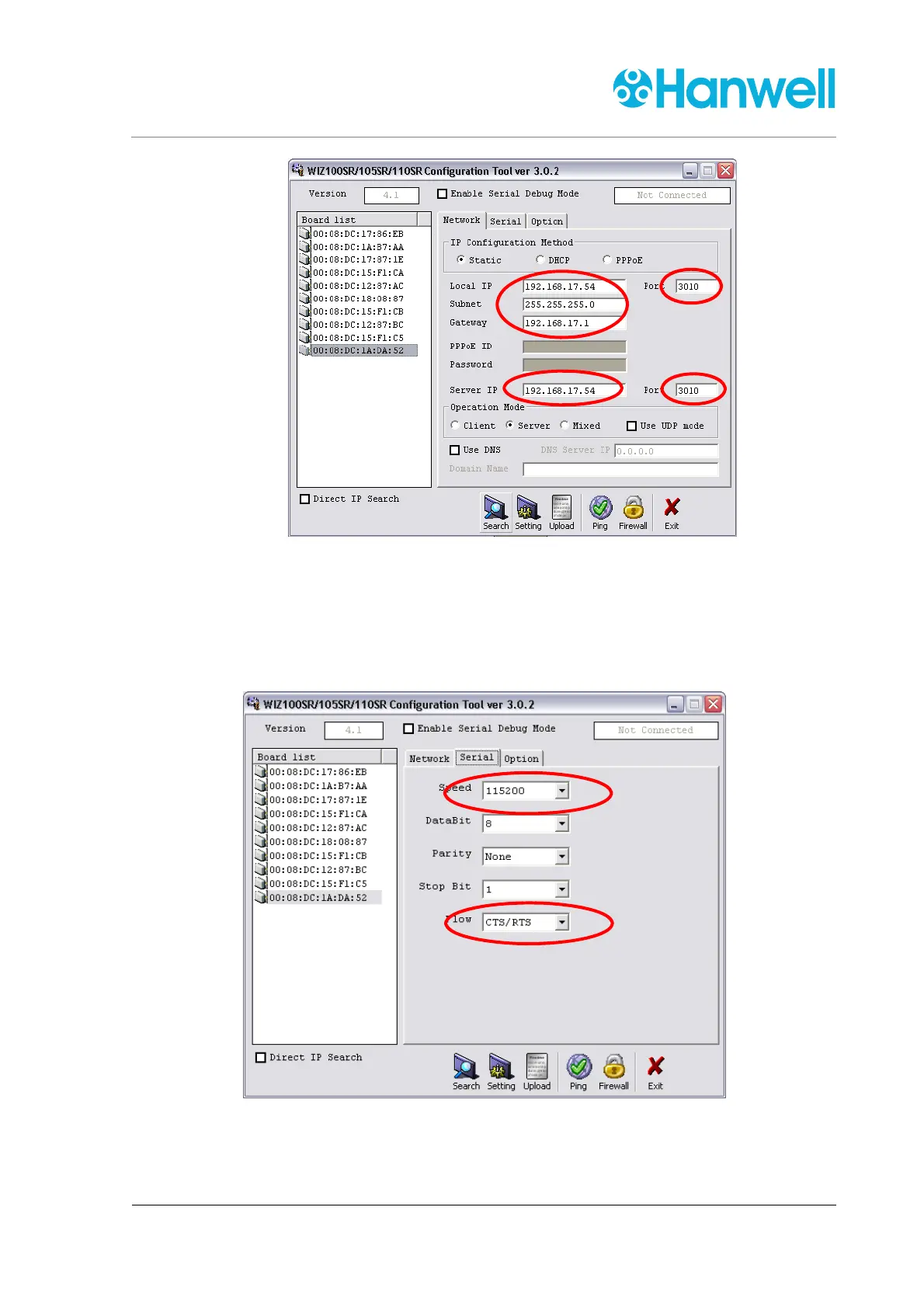

Figure 9
5. Clear the Enable Serial Debug Mode tick box.
6. Enter values into the highlighted fields on the Network tab as shown in Figure 9 above.
7. Enter values into the highlighted fields on the Serial tab as shown in Figure 10 below.
Figure 10
8. Enter values into the highlighted fields on the Option tab as shown Figure 11 below.
