6
● Summary
Program temperature controller is consisted of three types of
modes: operation indicator mode, engineering mode, and
program mode.
Operation indicator mode is displayed when the power is
ON and it indicates process value and set value, process
value and output volume, and remaining time of the
corresponding segment when in operation.
Engineering mode sets up the basic functions of the
instrument including types of input (sensor) and output,
communication, retransmission, alarm, control output, PID,
and auto tuning.
Program mode sets up the control program. It establishes
the number of program repetition, pattern number, segment
number setup, program start condition, time signal, program
ending mode, and each segment’s parameter.

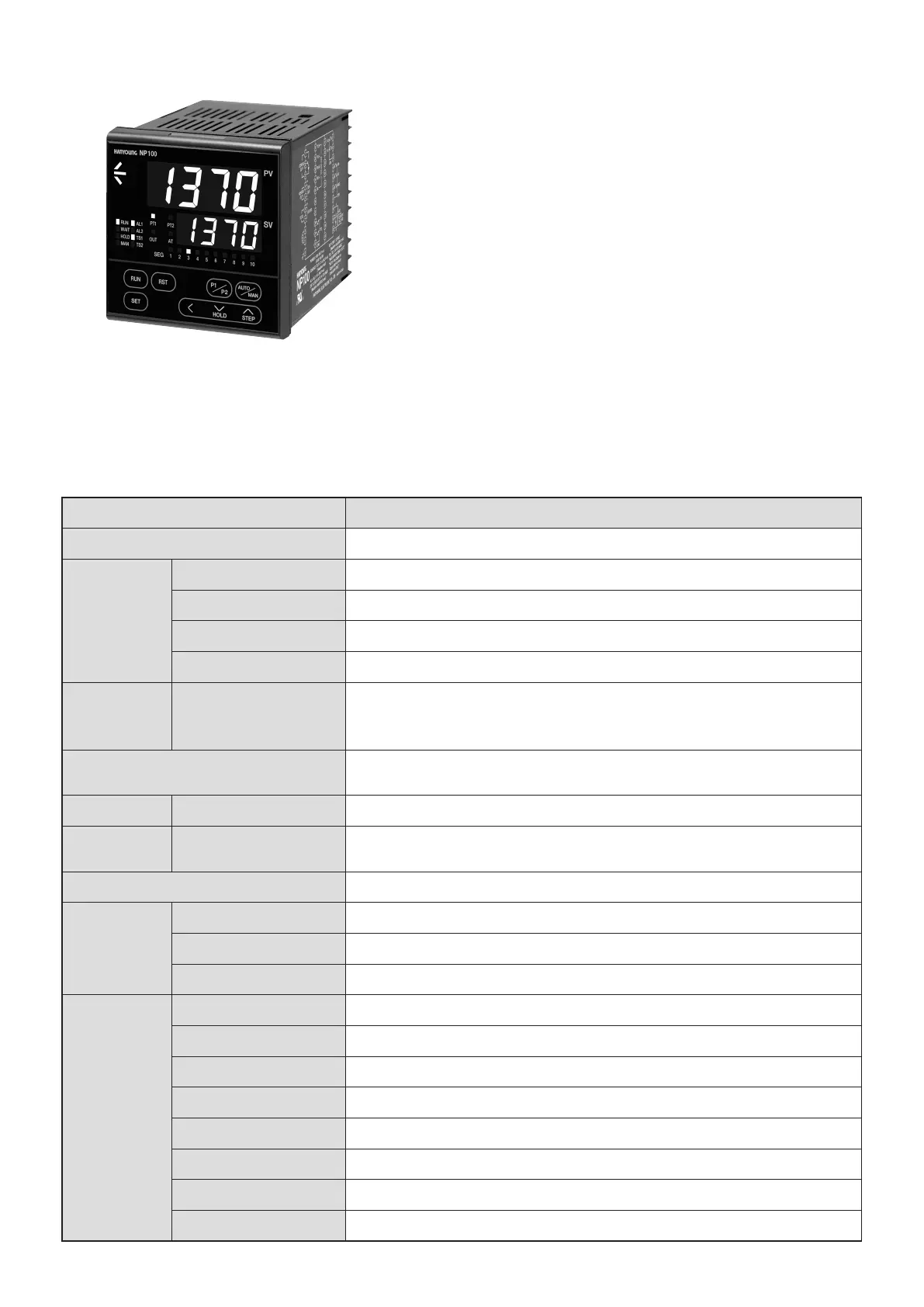

● Feature
Function Description
Option RS 485 / 422, Time signal 2 points
PV display
Digit number 4 digits
Accuracy ±0.1 %
Sampling time 250 ms
Input type Universal input (selectable by parameter) refer to page 8
Control
Output
Output type
Universal output (selectable by parameter) refer to page 8
SSR / SCR
Relay
Retransmission output
Current / SPS (power suppy for sensor)
(Use RET output terminal)
Alarm output Relay 2 points
Time signal
output
Transistor 2 points
Pattern & Segment number 2 patterns & 20 segments (1 PT is max. 10 seg.)
Communication
Standard RS485/422
Speed 600 ~ 9600 bps
Max. Com. line 31
Hard Ware
Measurement input 1 point
Contact input 3 points (RUN,RESET,HOLD)
SCR / SSR pulse 1 point (Current or SSR output)
Retransmission output 1 point
Relay control output 1 point (C contact)
Alarm output 2 points (A contact)
Transistor output 2 points (Time signal)
Power supply 100 - 240 V AC 50 - 60 ㎐
