15
● Model NP 100 program temperature controller is divided into operation indicator mode and
program mode and this program mode is further divided into engineering group and program group.

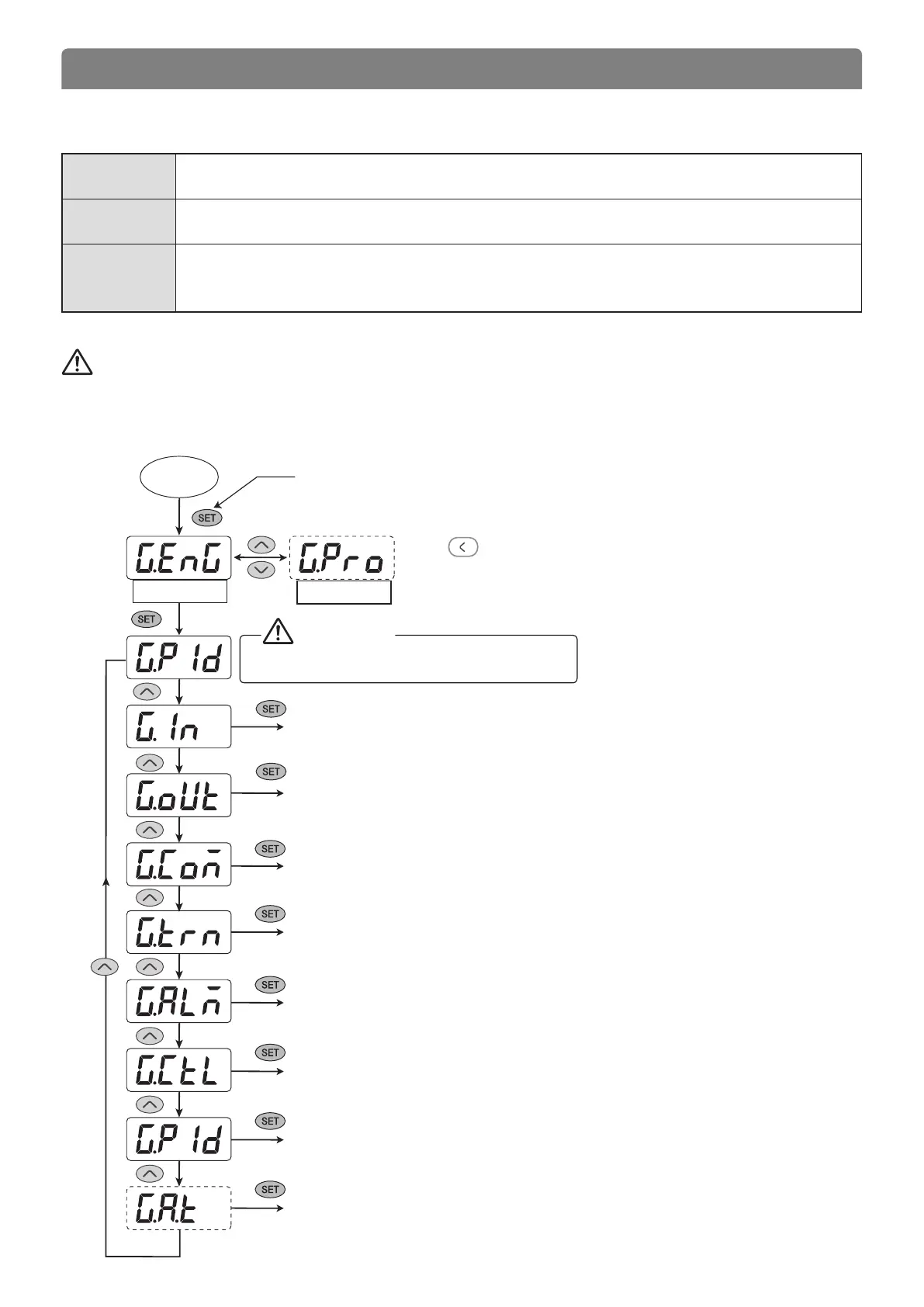

8-1. Engineering Group Setup
8. SETUP METHOD
Operation
Indicator Mode
Operation indicator mode is displayed when the power is ON and it indicates process value and set value,
process value and volume of output, and remaining time of the corresponding segment when in operation.
Engineering
Group
Engineering mode sets up the basic functions of the instrument including types of input and output,
communication, retransmission, alarm, controlling movement, PID, and auto tuning.
Program
Group
Program mode sets up the control program. It establishes the number of program repetition, pattern
number, segment number setup, program start condition, time signal, program ending mode, and each
segment’s parameter.
Power
ON
(Press 2.5 second.)
Engineering group
Program group
(1.Input setup group)
8-1-1
8-1-2
8-1-3
8-1-4
8-1-5
8-1-6
8-1-7
8-1-8
(2.Output setup group)
(3.Communication setup group)
(4.Retransmission setup group)
(5.Alarm setup group)
(6.Control setup group)
(7.PID setup group)
(8.Refer to configuration group of Automatic Calculation, ※Possible to display when program is operating.)
(refer to page 16)
(refer to page 17)
(refer to page 18)
(refer to page 19)
(refer to page 20)
(refer to page 21)
(refer to page 22)
(refer to page 23)
※Press button to enter the engineering mode from each setup group
Caution
※ Must start with the setup of the input and output.
Caution
- When controller is running on, preparatory work should be operated on engineering mode.
-
Since there are set up mode of input and output function and mode of control function, please set up an order like input output other groups.
- Because a set up point can be changed and initialized depending on particular engineering mode,
we recommend you to record a set up point which is set up by engineering mode
To Next Page
