8-2-2. Program Setup Mode
※

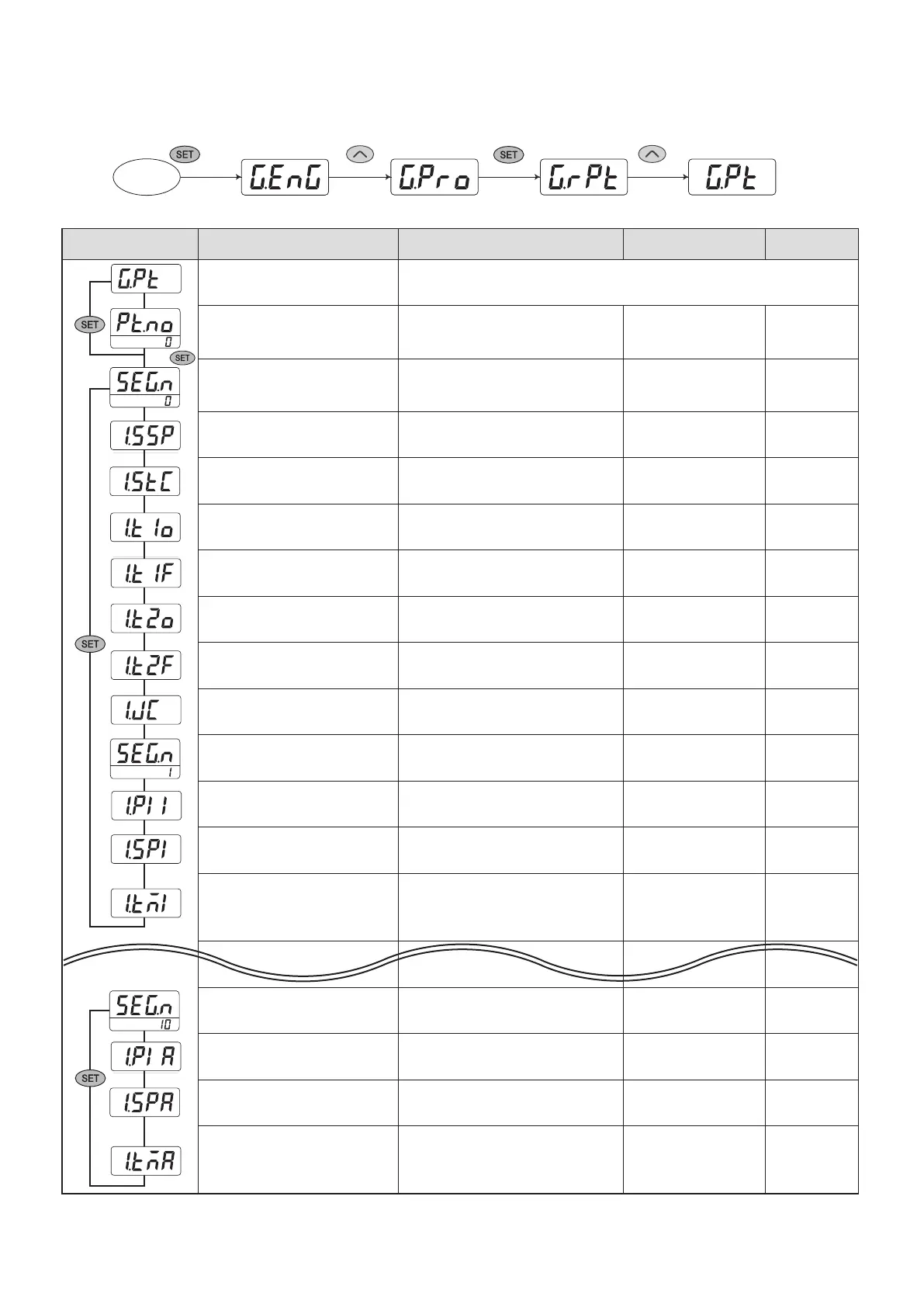

Setup group for program frequency will be indicated if operated as follow under the power ON condition (operation indicator
mode). However, if you do not operate the key for more than 30 seconds, operation indicator mode will be displayed.
Power
ON
2.5 sec.
Signal Item Setup range Display condition Initial value
Program setup group
It sets up the program to be controlled after finishing the
engineering mode setup.
Patter number selection 0 ~ 2 Always 0
“0” segment setup 0~10
When selecting
pattern
0
Setup of start set value Within range Segment "0" -200
Start type selection
SSV : Start SV
PV : Process value
Segment "0" SSV
Setup of n. pattern time
signal-1 ON time
OFF / 00.00 ~ 99.59 Segment "0" OFF
Setup of n. pattern time
signal-1 OFF time
OFF / 00.00~99.59
(ON time < OFF time)
Segment "0" OFF
Setup of n. pattern time
signal-2 ON time
OFF / 00.00 ~ 99.59 Segment "0" OFF
Setup of n. pattern time
signal-2 OFF time
OFF / 00.00~99.59
(ON time < OFF time)
Segment ”0” OFF
Program
completion mode
RST/HOLD/PT-1/PT-2 Segment "0" RST(RESET)
Segment number
( 1 ~ 10 )
0~10 Always 1
n pattern 1 segment PID
group no. selection
1 ~ 4 PID control 1
Target set value Within range Always -200
Setup of n pattern 1
segment time
OFF / 00.00~99.59
(Time unit is set at the control
setup group)
Always OFF
Segment number
selection ( 1 ~ 10 )
0~10 Always 10
n pattern 10 segment PID
group no. selection
1~4 PID control 1
Target set value Within range Always -200
Setup of n pattern 10
segment time
OFF / 00.00~99.59
(Time unit is set at the control
setup group)
Always OFF
To Next Page
