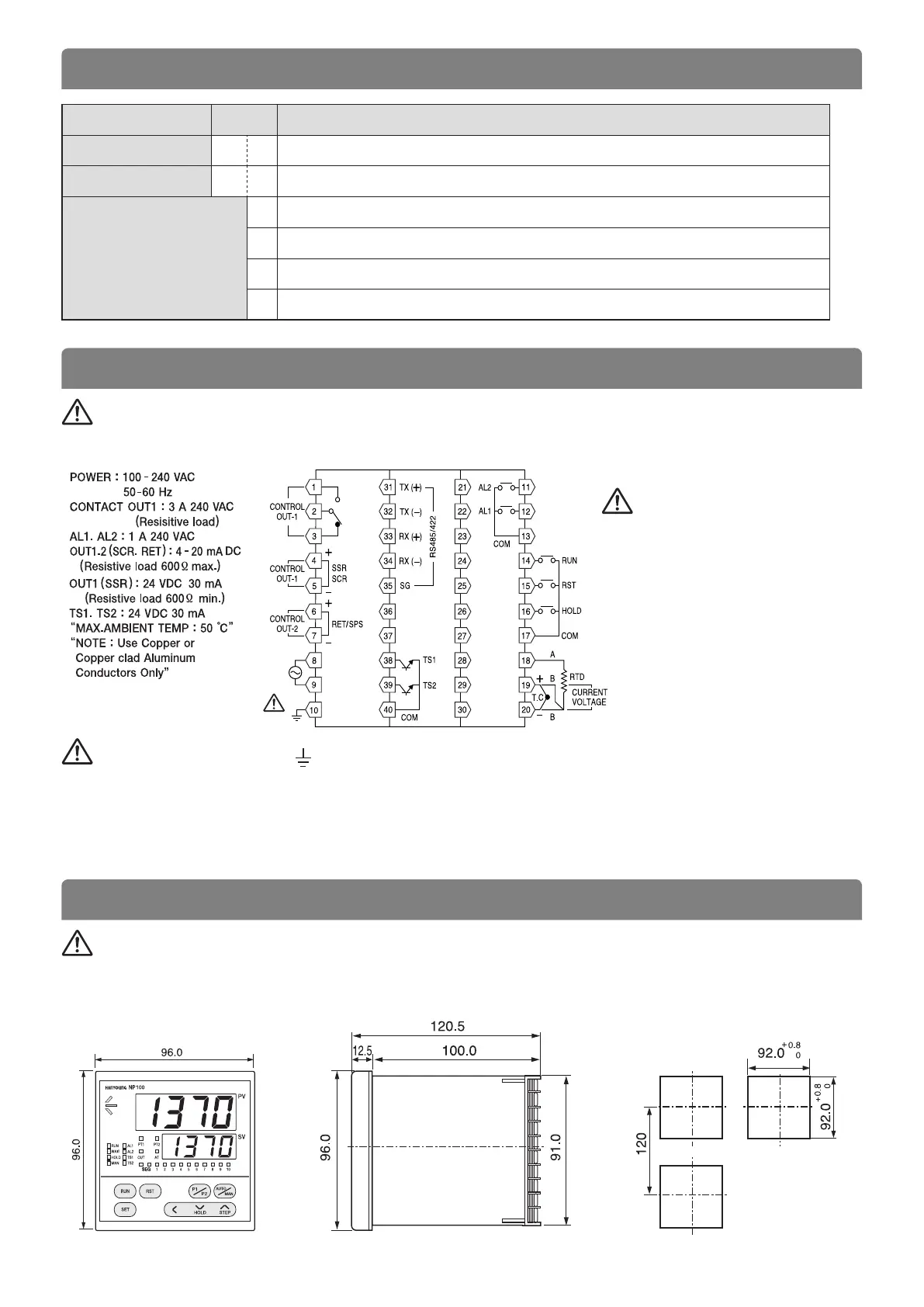

HANYOUNG NUX NP100 - Ordering Information; Terminal Arrangement; Dimension & Panel Cutout

7
[Unit : mm]
● Dimmension ● Panel cutout
min
Model Code Information
NP100-   Programmable Controller
Control type 0 Universal type (Heating)
Option
0 None
1 Time signal 2 points
2 RS 485/422
3 Time signal 2 points +RS 485/422
2. ORDERING INFORMATION
3. Connection diagram
4. DIMENSION & PANEL CUTOUT
Main power must be OFF before wiring
Caution
Use panels with 2 ~ 10 mm tickness steel sheet.
Caution
Caution
● ground-wiring ( )
- Ground connection cable is a thick wire that is over 2 ㎟ in width. Wire with more than the third type ground connection
(below 100Ω ground connection resistance).
- The length of the ground connection cable must be within 20m.
- Ground 1 point from the ground terminal.
- Do not spread cable between the ground terminals.
주 의
Operate after disconnecting the main
power and confirming the discontinuation
of power to the cable connected to the
main power by using a tester. There is
danger of possible electric shock. Avoid
any contact with the terminal when
sending electricity.
Caution
