HANYOUNG NUX NP100 User Manual

9

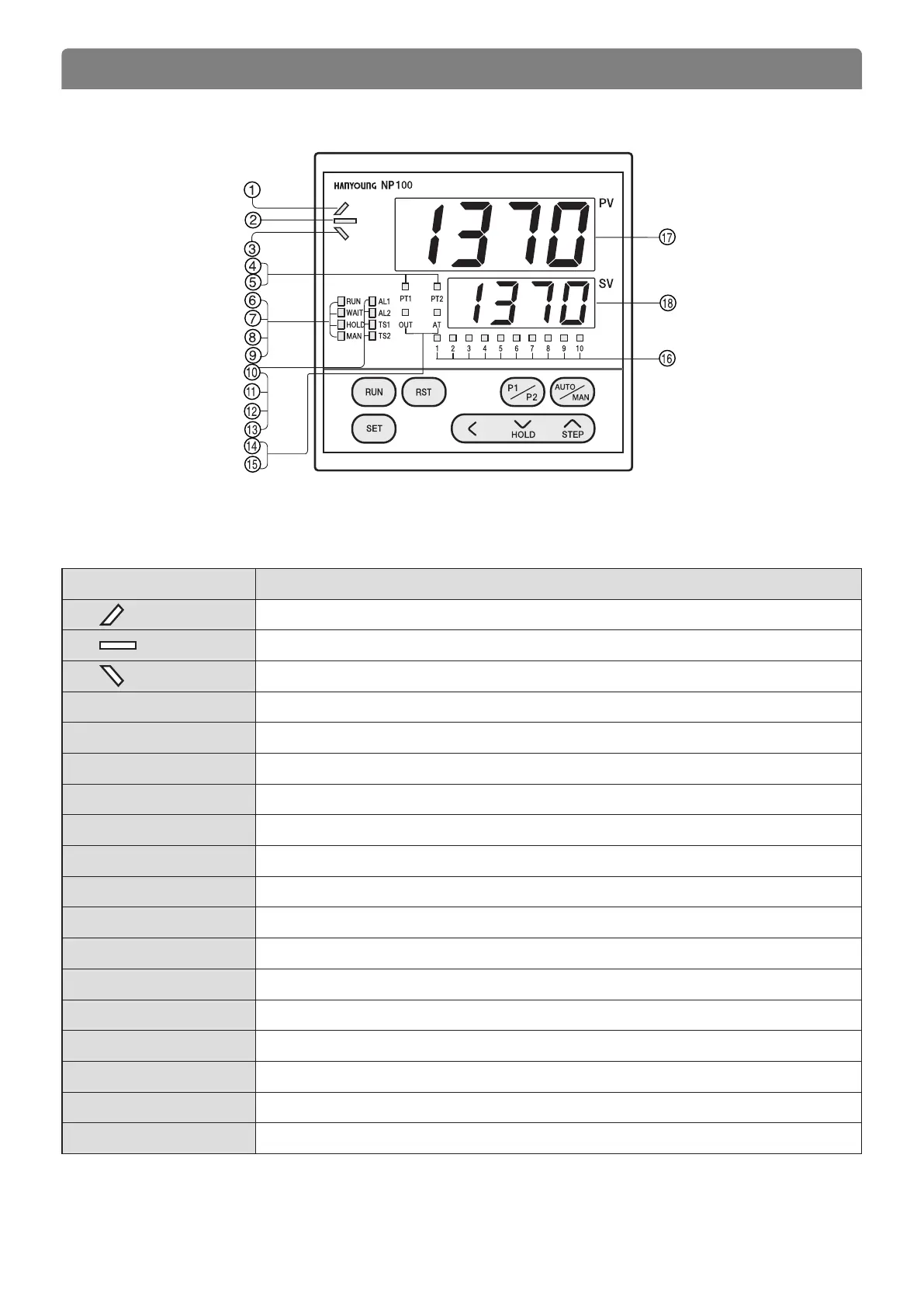

6-1. The function of individual LED
● Function description
6. NAME AND FUNCTION
LED display Function
① display lamp Lights when there is an ascending section of the segment.
② display lamp Lights when there is a soak section of the segment.
③ display lamp Lights when segment is descending section.
④ PT1 display lamp Lights when selecting the pattern 1.
⑤ PT2 display lamp Lights when selecting the pattern 2.
⑥ RUN display lamp Lights when the program is in operation.
⑦ WAIT display lamp Lights when WAIT is in operation while the program is running on.
⑧ HOLD display lamp Lights when HOLD is in operation while the program is running on.
⑨ MAN display lamp Lights while manually operating
⑩ AL1 display lamp Lights when Alarm 1 is in operation
⑪ AL2 display lamp Lights when the Alarm2 is in operation.
⑫ TS1 display lamp Lights when the time signal 1 is in operation
⑬ TS2 display lamp Lights when the time signal 2 is in operation
⑭ OUT display lamp Lights when the control output is ON.
⑮ AT display lamp Lights during the auto tuning.
⑯ SEG1~10 display lamp Display present segment while the program is in operation.
⑰ PV display lamp Display process value.
⑱ SV display lamp Display set value.
