23
Signal Name Description Condition Initial value
P.I.D group
Anti Reset Wind-Up
P.I.D group selection
n. Proportional band(P)
n. Integal time (I)
n. Derivative time (D)
n. Manual reset
n. Proportional band of
cooling side (P)
n. Integral time of
cooling side (I)
n. Derivative time of
cooling side (D)
n. Hysteresis
n. Zone point
Set P.I.D mode
Auto / 50.0 ~ 200.0 %
0 / 1 ~ 3
0.1 (H/C TYPE:0.0) ~ 999.9 %
OFF / 1 ~ 600 sec.
OFF / 1 ~ 6000 sec.
-5.0 ~ 105.0 %
0.0 (ON/OFF control)
/ 0.1 ~ 999.9
OFF / 1 ~ 6000 sec.
OFF / 1 ~ 6000 sec.
-100.0 ~ 50.0 %
EU (0) < 1.RP < 2.RP < EU
(100.0 %)
P.I.D control
Always
P.I.D group
Always
Always
Integral time: OFF
Heating
Cooling
type
Heating
Cooling
type
Heating
Cooling
type
Heating
Cooling
type
ZONE = ON
Auto
0
5.0 %
240 sec.
60 sec.
50.0%
5.0 %
240 sec.
60 sec.
3.0 %
EU
(100.0 %)

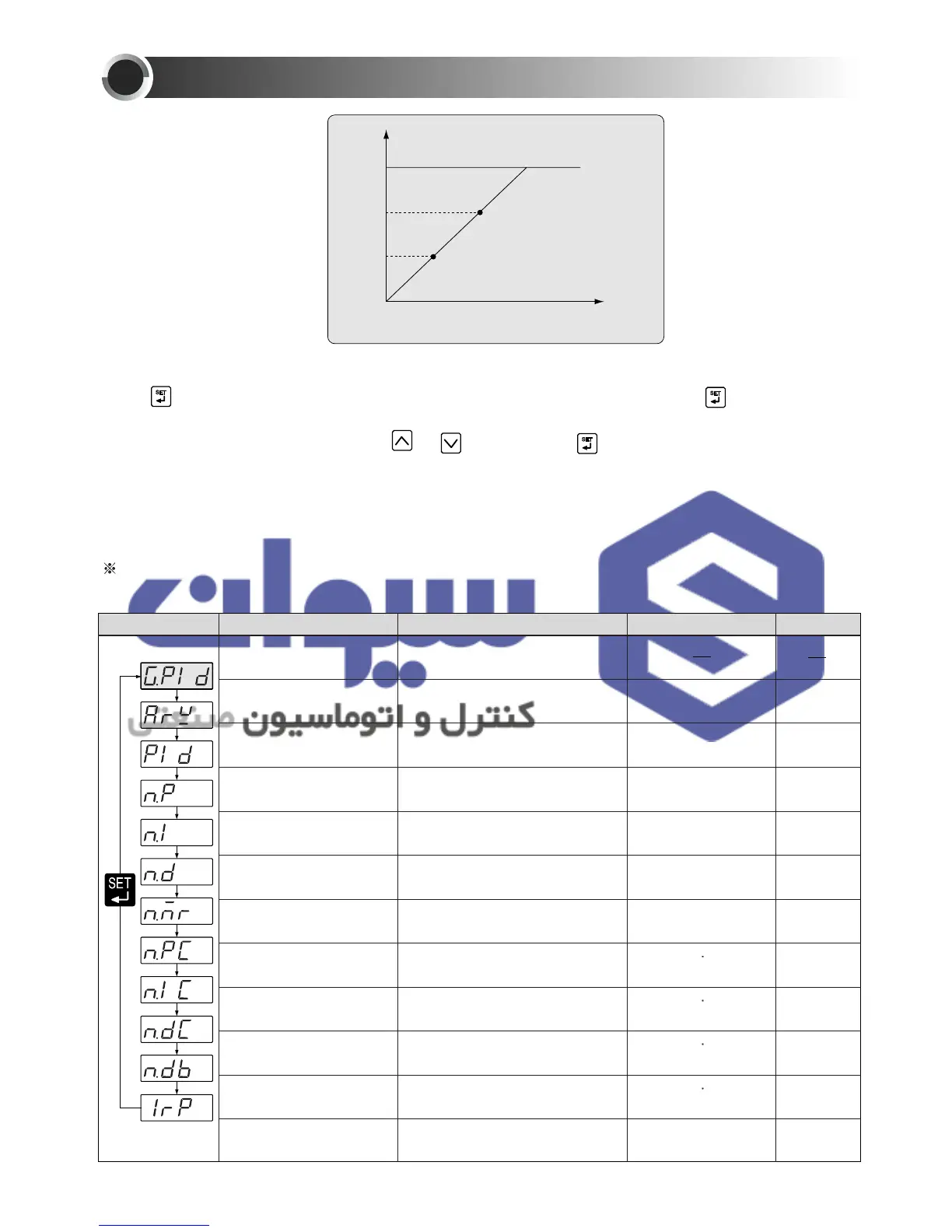

Time
Zone 3
Set point of Zone 2 (2,RP)
Set point of Zone 1 (1,RP)
Maximum Range (Eu:100 %)
Minimum (Eu: 0 %)
Zone 2
Zone 1
When checking P.I.D. values or setting SV in manual mode, this can be done in P.I.D. Group.
Press key to get Anti Reset Wind value by auto or manual and then press once more to be
indicated P.I.D mode which is selectable 3 types of P.I.D group (0~3). Example, “0” is no P.I.D
mode and after Auto tuning “1” using or and pressing , it is available to change P.I.D
value in zone “1” (“2” and “3” are same as “1”)
When integral time is 0, manual reset mode is indicated and then you could set reset value to
remove off set (range: -5 % ~ 105.0 % of proportional band). You could set 3 zones by selecting
zone mode ON.
In diagram, “n” is available to set 1 ~ 3 and proportional band of cooling side, integral time of
cooling side, hysteresis are indicated in Heating / Cooling type.
P.I.D GROUP
17
