8
SELV
Danger Danger/Safety
SELV
SELV
MMI / F
Power supply
GND
Alarm1
Alarm2
Control output
Relay contact output
Control output 1 (SSR, SCR)
Control output 2 (SSR, SCR)
Contact input
Contact input
Communication channel
CT input
(retransmission)
Measuring
input

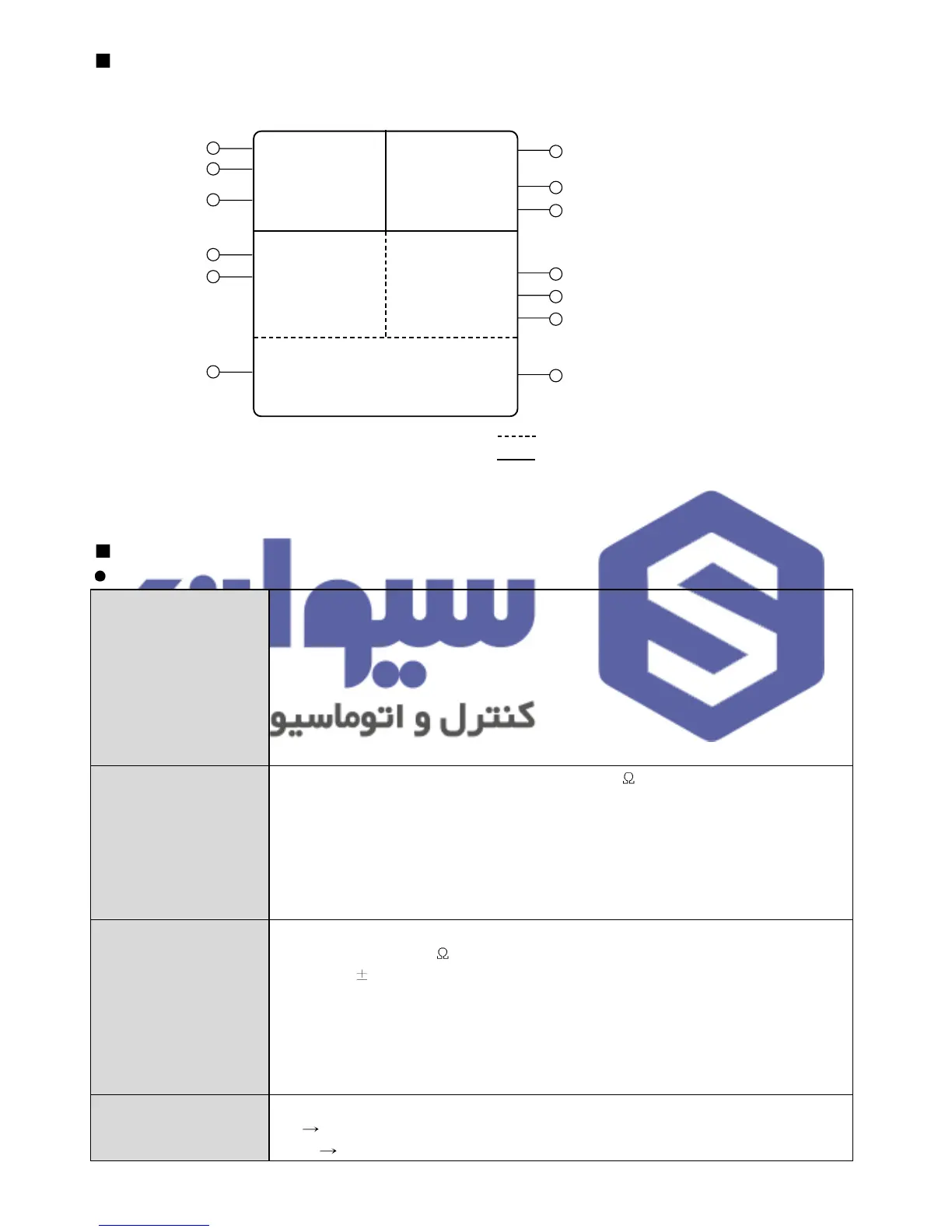

Divison of insulation
Functional insulation (basic insulation)
Functional insulation (double insulation)
OUTPUT
CONTROL OUTPUT
Relay
contact output
SSR output
Current output
Manual operation
Contact capacity : 240 V AC 3 A, 30 V DC 3 A ( Resistance load )
Contact structure : 1 c
Output action : Propotional or ON / OFF action
Proportion cycle time : 1 ~ 1000 sec.
Output limit : Higher (OH) or lower limit (OL) selectable within 0.0 ~ 100.0 %
range. It is also available in Auto tuning
ON / OFF hysteresis : 0 ~ 100 %
Time resolution : 0.1 % or 10 ms
ON voltage : 12 V DC min.(Resistance load: 600
min, 30 mA limit when short)
OFF voltage : 0.1 V DC max.
Output action : Proportional action
Proportion cycle time : 1 ~ 1000 sec.
Output limit : Higher (OH) or lower limit (OL) selectable within 0.0 ~ 100.0 %
range. It is also available in AT and MAN.
Time resolution : 0.1 % or 10ms (whichever is larger)
Output current range : 4 ~ 20 mA DC
Resistance load : 600
max.
Accuracy :
0.3 % of F. S ( 4 ~ 20 mA ) Resolution : Approx. 3000
Output ripple : 0.1 % of F. S ( p-p ) 150 Hz
Output update cycle time : 250 m sec.
Output action : P.I.D control
Output limit : Higher (OH) or lower limit (OL) selectable within -0.5 ~ 105.0 %
range. It is also available in AT and MAN.
It is changeable by A/M key, external contact and communication.
AT
MAN : TRACKING
MAN
AT : BUMPLESS CONVERSION
