Harbor Breeze 40959 - Receiver Wiring Connections; Securing Wire Connections

8
INITIAL INSTALLATION
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

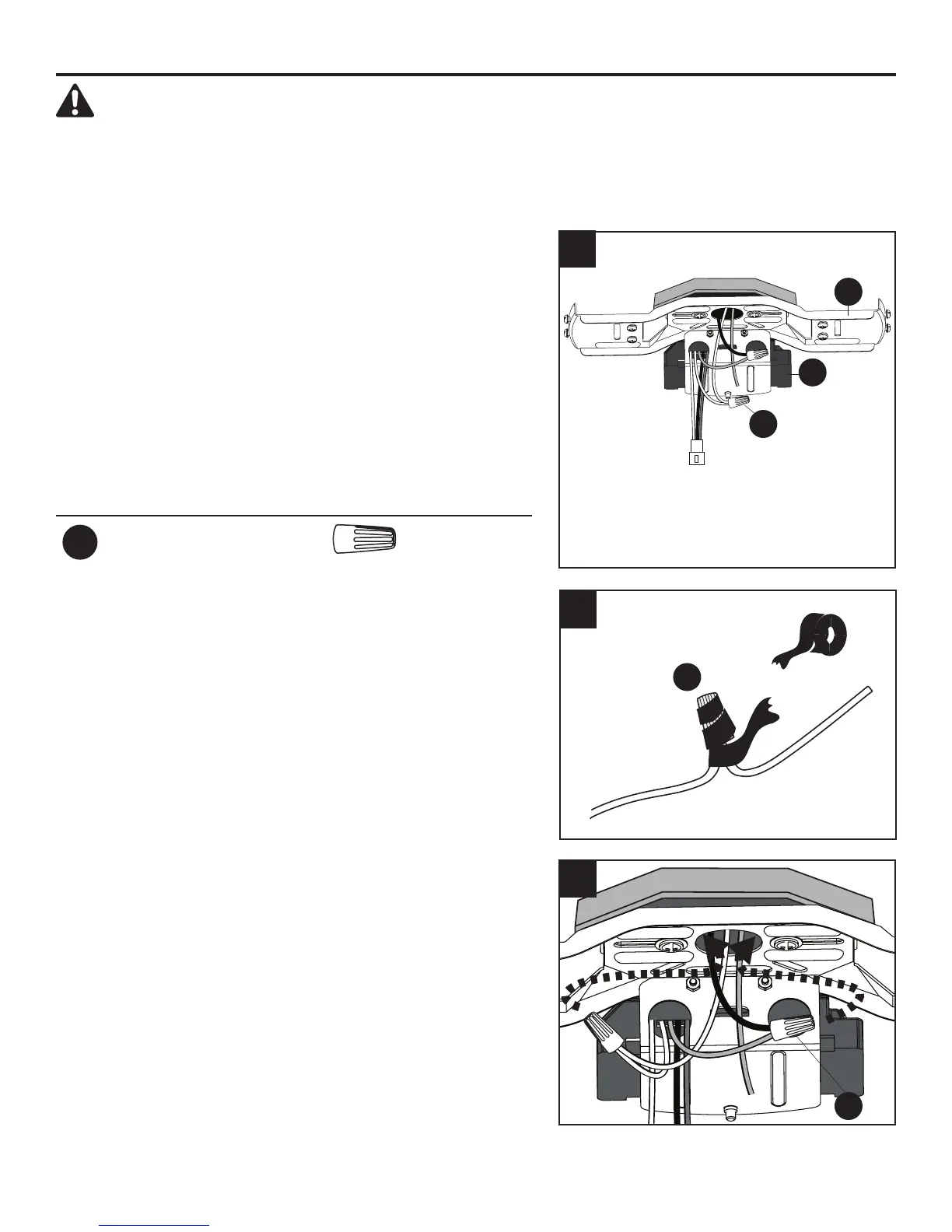

4. Using wire connectors (DD), connect wires from
receiver (C) -- preassembled to upper mounting bracket
(B) -- and house supply wires according to the diagram
and these steps:
• Connect the red wire from receiver (C) to the black
(hot) house supply wire.
• Connect the white wire with red label from the receiver
(C) to the white (neutral) house supply wire.
Note: The remaining wires will be connected later in the
installation process (page 10).
Hardware Used
DD
Wire Connector x 2
5. Wrap electrical tape (not included) around each
individual wire connector (DD) down to the wire.
6. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (DD) into the outlet box.
WARNING: Ensure no bare wire or wire strands are
visible after making connections.
4
5
DD
6
DD
DD
C
B
