Harbor Breeze 41239 - Install Blades to Arms; Install Blade Arms to Motor; Connect Fitter Plate and Light Kit

11
FINAL INSTALLATION

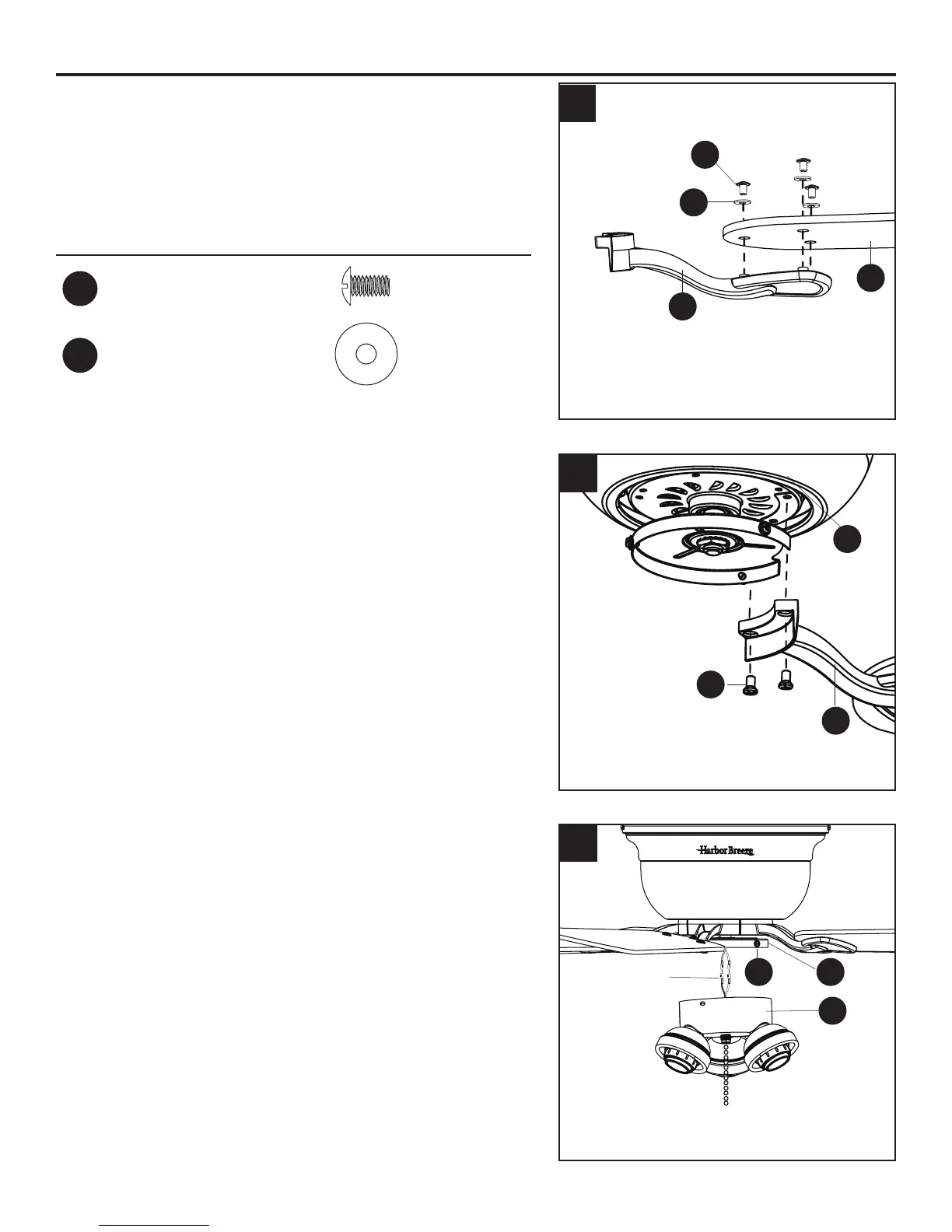

4. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (J) and into
the blade arm (I). Tighten each blade screw (BB) with
a Phillips screwdriver, starting with the one in the
middle. Repeat this step for the remaining blades (J)
and blade arms (I).
Hardware Used
BB
Blade Screw x 15
CC
Blade Washer x 15
5. Install the blade arm (I) to the underside of the motor
(E) with motor screws (L) previously removed (Step 3,
page 10). Tighten with Phillips screwdriver.
Repeat for each blade arm (I).
6.Removethetterplatescrews(N)preassembled
tothetterplate(F).Then,connectthesingle-pin
connectorsfromthetterplate(F)andthelightkit
(G) -- blue to black and white to white.
6
4
I
E
L
G
N F
5
Single-pin
Connectors
J
I
BB
CC
