11

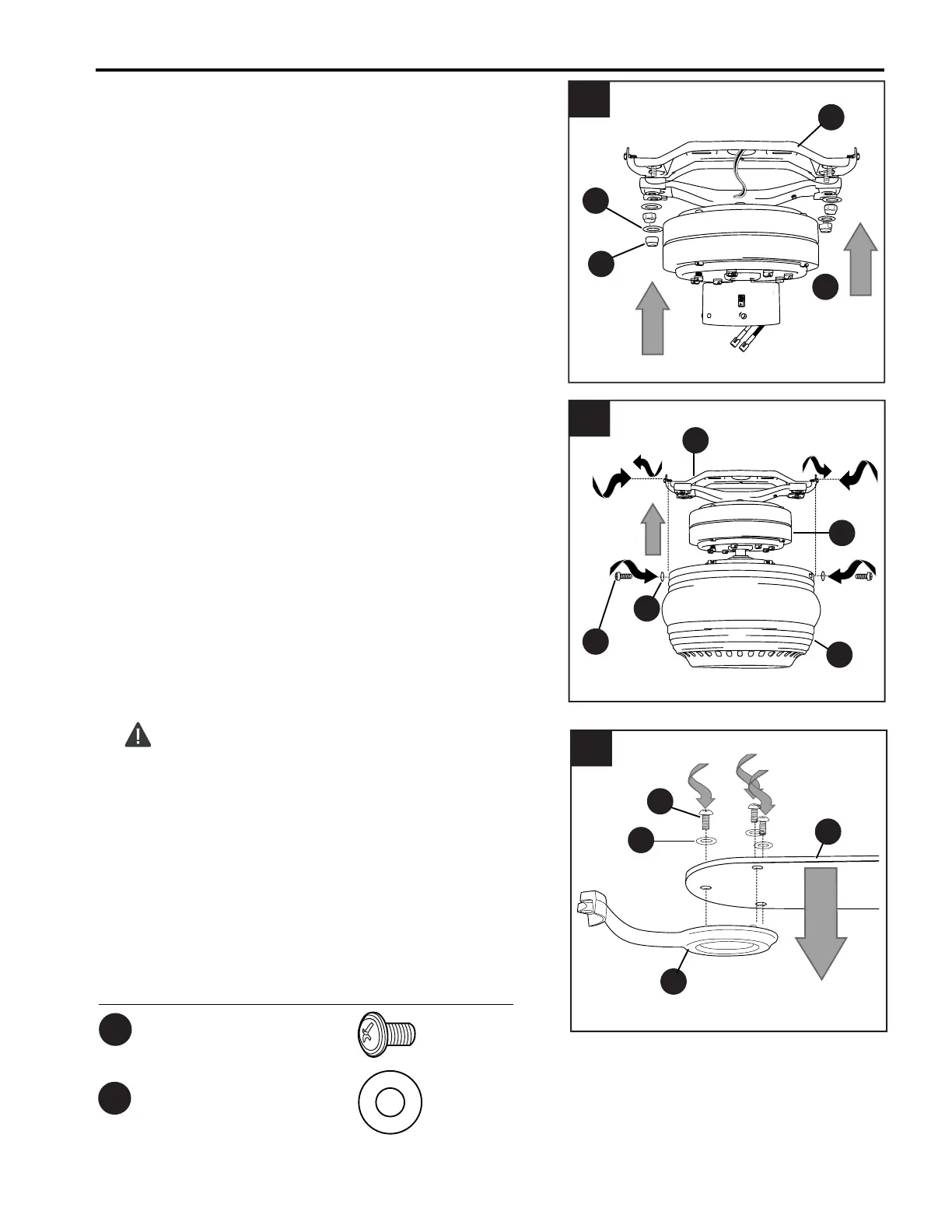

FINAL INSTALLATION
1.
Remove motor assembly (C) from "J" hook.
Align holes in motor assembly (C) with holes in
mounting bracket (A). Secure motor assembly (C)
with mounting bracket flat washers (Q) and
mounting bracket nuts (S) previously removed
(Step 3, page 7).
1
Q
A
S
C
T
2
A
O
R
B
C
2.
Temporarily lift motor housing (B) to mounting
bracket (A). Determine which two motor housing
mounting screws (O) in sides of mounting bracket
(A) align with the slotted holes in the top edge of
the motor housing (B) and partially loosen these
two motor housing mounting screws (O). Remove
the other two motor housing mounting screws (O)
and motor housing lock washers (R). Slide motor
housing (B) over motor assembly (C), aligning
slotted holes in motor housing (B) with loosened
motor housing mounting screws (O) in mounting
bracket (A). Twist motor housing (B) to lock.
Re-insert the other two motor housing mounting
screws (O) along with motor housing lock washers
(R) previously removed. Tighten all motor housing
mounting screws (O) securely.
3.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and break.
Partially insert three blade screws (AA) along with
three fiber blade washers (BB) into holes in blade
(G) to attach blade arm (J) to blade (G). Then,
tighten each blade screw (AA) starting with the
one in the middle.
Repeat for remaining blades (G).
3
BB
AA
G
J
Hardware Used
Blade Screw
x 15
AA
Fiber Blade Washer
x 15
BB
To Next Page
