WIRING INSTRUCTIONS
Note: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it
must be grounded for safe operation.

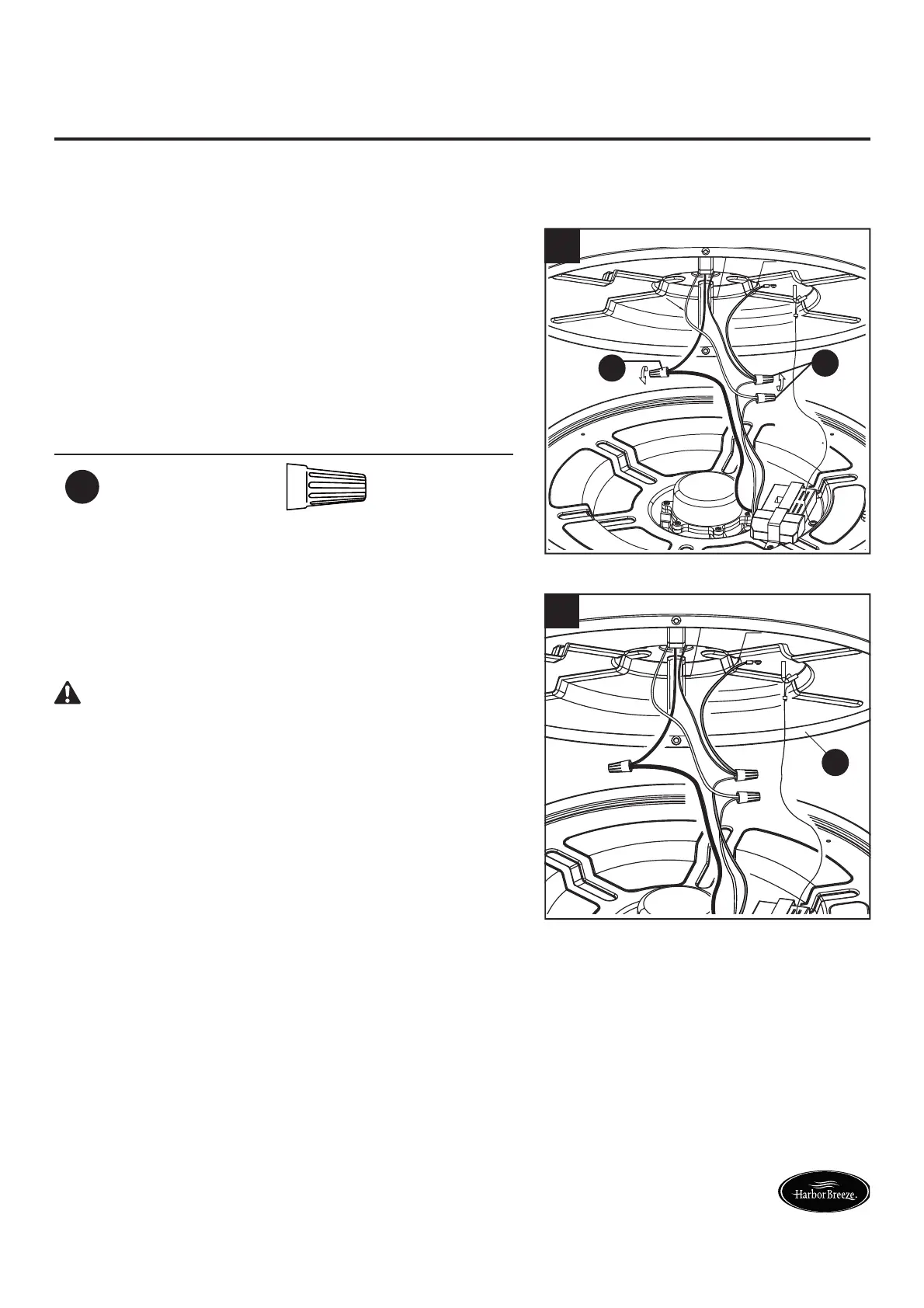

1. Connect the green grounding lead from the wire
tray and the green grounding lead from the ceiling
bracket (G) to the supply grounding conductor
(this may be a bare wire or wire with green colored
insulation). Securely connect the wires with a wire
connector (AA). Connect the white fan receiver
wire to the white supply (neutral) wire using a wire
connector (AA). Connect the black fan receiver wire
to the black supply wire using a wire connector (AA).
Hardware Used
AA
Wire
Connector
x 3
AA
AA
1
2. After connections have been made, turn leads
upward and carefully push the leads into the ceiling
bracket (G), with the white and green leads to one
side and the black leads toward the other side.
WARNING: Check to see all connections are tight,
including ground, and no bare wire is visible at the wire
connectors except for the ground wire.
G
2
