INITIAL INSTALLATION
7
A
B
2
19° max.
2.

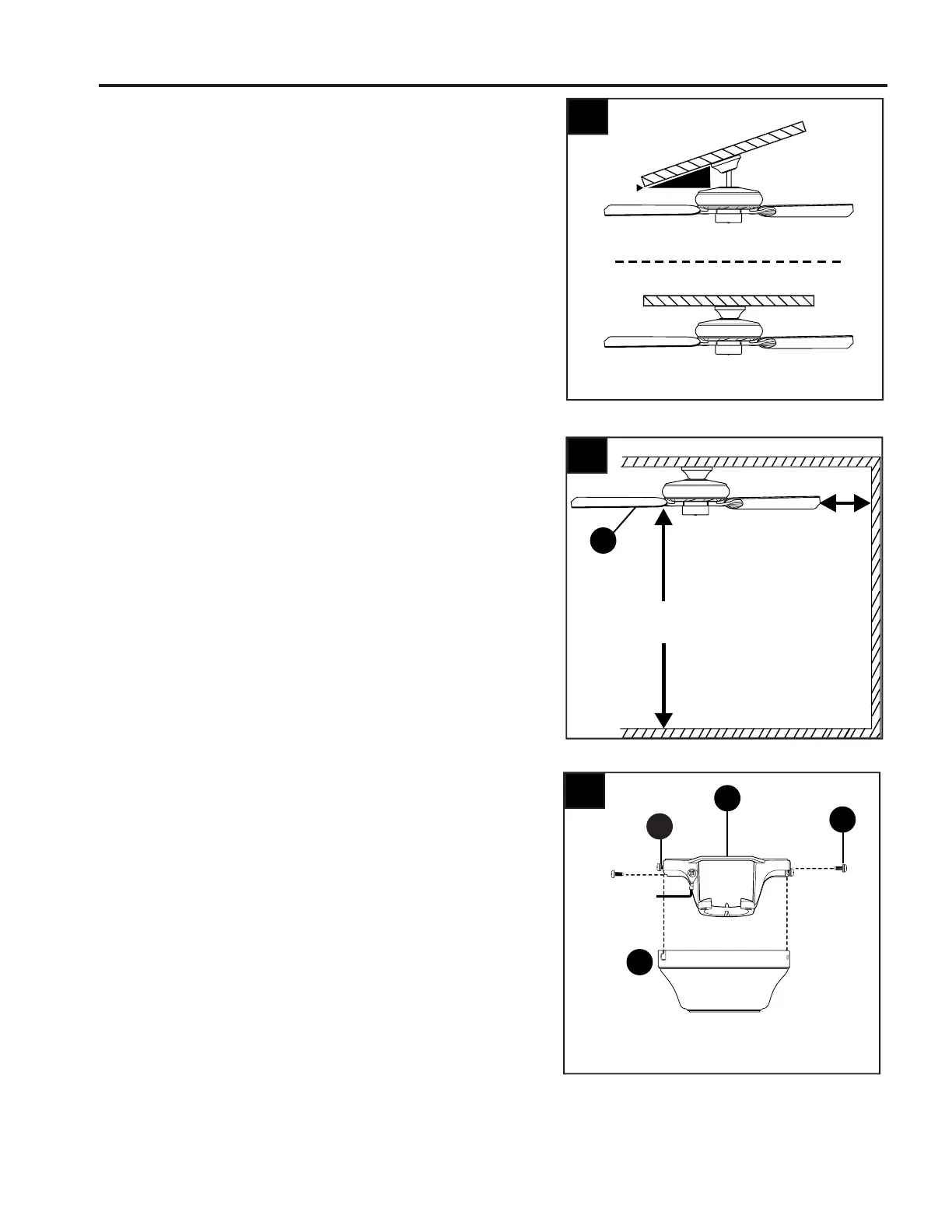

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (J) will be at least 30
in. from any obstruction and at least 7 ft. above the
floor.
3.
4.
Temporarily raise canopy (B) to mounting bracket
(C) and determine which 2 canopy mounting
screws (G) align with slotted holes in canopy (B).
Partially loosen these 2 canopy mounting screws
(G) and remove the other two; save for later use.
7 ft.
min.
30 in.
min.
J
3
C
B
G
G
4
