Hardi FOAM MARKER Standard User Manual

16
HARDI
®
FOAM MARKER STANDARD VERSION
6.6 Delta 3-PT
1. There are two brackets that mount to the Delta 3-PT frame for the foam
marker system.

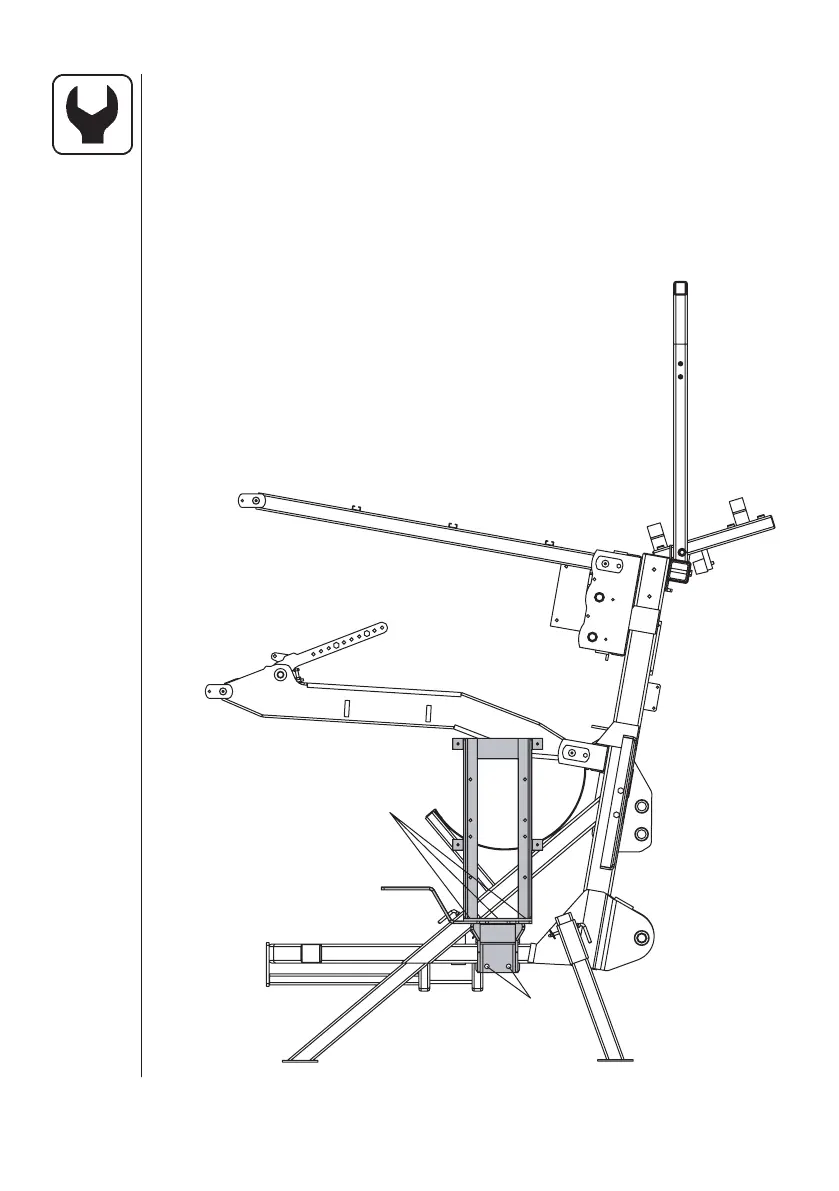

2. Mount the bottom bracket to the Delta frame using
two M16x110mm bolts and locknuts (A) as shown in
(Fig. 13).
3. Mount the tank bracket to the bottom bracket using
three M10x35mm bolts and locknuts (B) as shown in
(Fig. 13).
A
B
Fig. 13
6.5 New Navigator 575, 1100
1. The Foam Marker Tank on the New Navigator sprayers is mounted
directly to the frame with tank straps. See Section 7.2 for detailed
instructions.
