HARDI
®
FOAM MARKER STANDARD VERSION
7.2 New Navigator

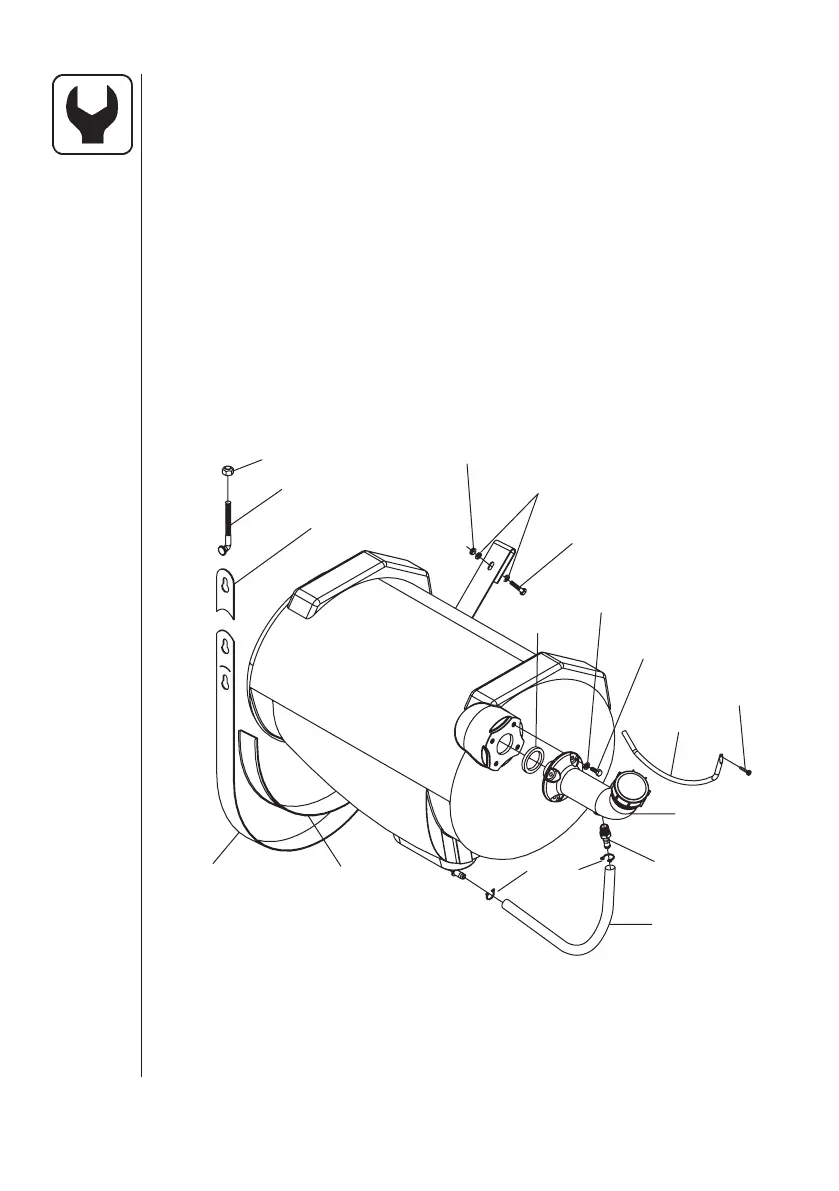

1. Install the Filler Neck onto the Foam Marker Tank as shown in (Fig. 15)
using the O-Ring, bolts and washers supplied in the kit.
2. Install the stainless steel vent tube (Fig. 15) to the inside of the fi ller
neck. Secure to fi ller neck with self-tapping screw (approx. 3/4" from
fi ller neck opening).
3. Wait to install the 1/2" hose barb and clear sight gauge hose to the
Filler Neck until after the tank is secured to the frame.
4. Locate the slots for the tank straps underneath the frame (Fig. 16).
Slide the "folded" end of the metal tank straps through the slots and se-
cure with the bolts, washers and nuts supplied in the kit. (Fig. 15).
METAL
TANK STRAP
FILLER NECK
O-RING
CLEAR SIGHT
GAUGE HOSE
M8X20mm
BOLTS (4)
FOAM MARKER
TANK
M8 FLAT
WASHERS (4)
HOSE
CLAMPS
M6 FLAT WASHERS
M6X20mm BOLT
M6 LOCKNUT
T-BOLT
RUBBER
STRAP
BREAK-OFF
SECTION
M10 LOCKNUT
1/2" HOSE BARB
VENT TUBE
SELF-TAPPING
SCREW
Fig. 15
